Cruise Control Ecu ASSY: Replacement

  1. REMOVE METER HOOD SUB-ASSY (SEE  COMBINATION METER ASSY  )
  2. REMOVE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )
  3. REMOVE CRUISE CONTROL ECU ASSY
    1. Disconnect the connector.
    2. Remove the screw and cruise control ECU assy.

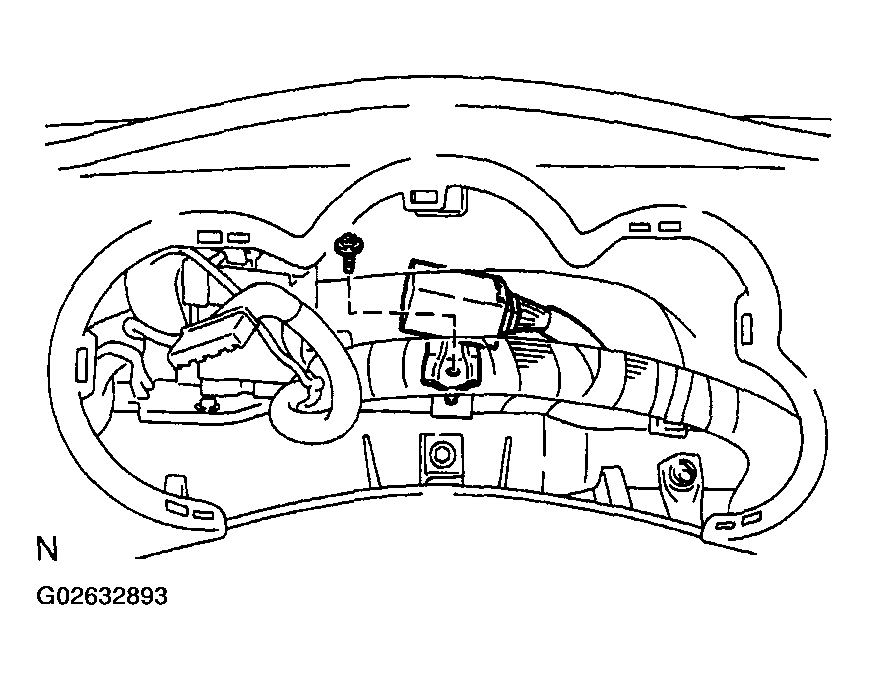

      Fig 1: Removing Cruise Control ECU Assy
      G02632893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
