Audio & Visual System: Components

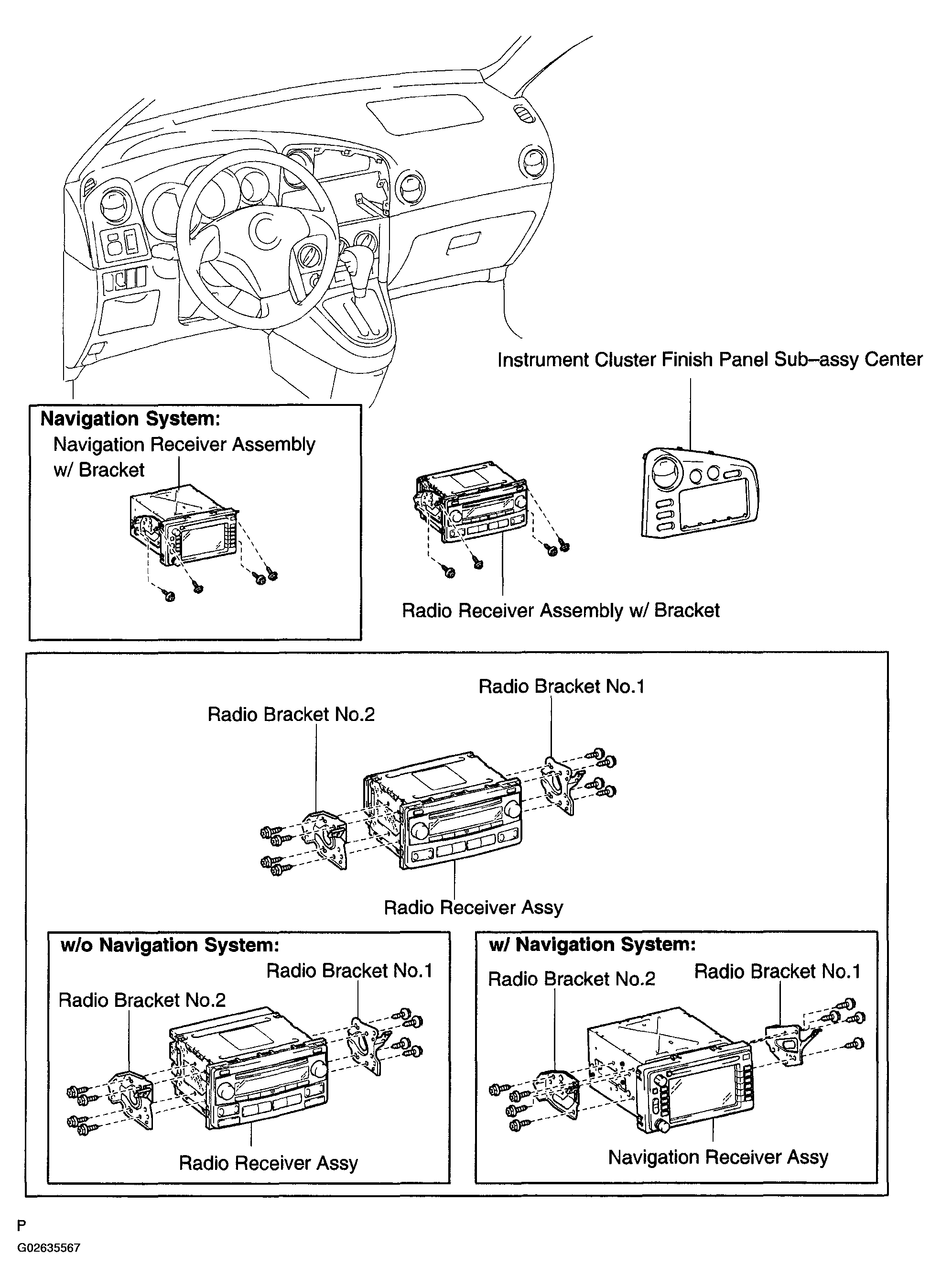

Fig 1: Identifying Audio & Visual System Location And Components (1 Of 4)
G02635567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

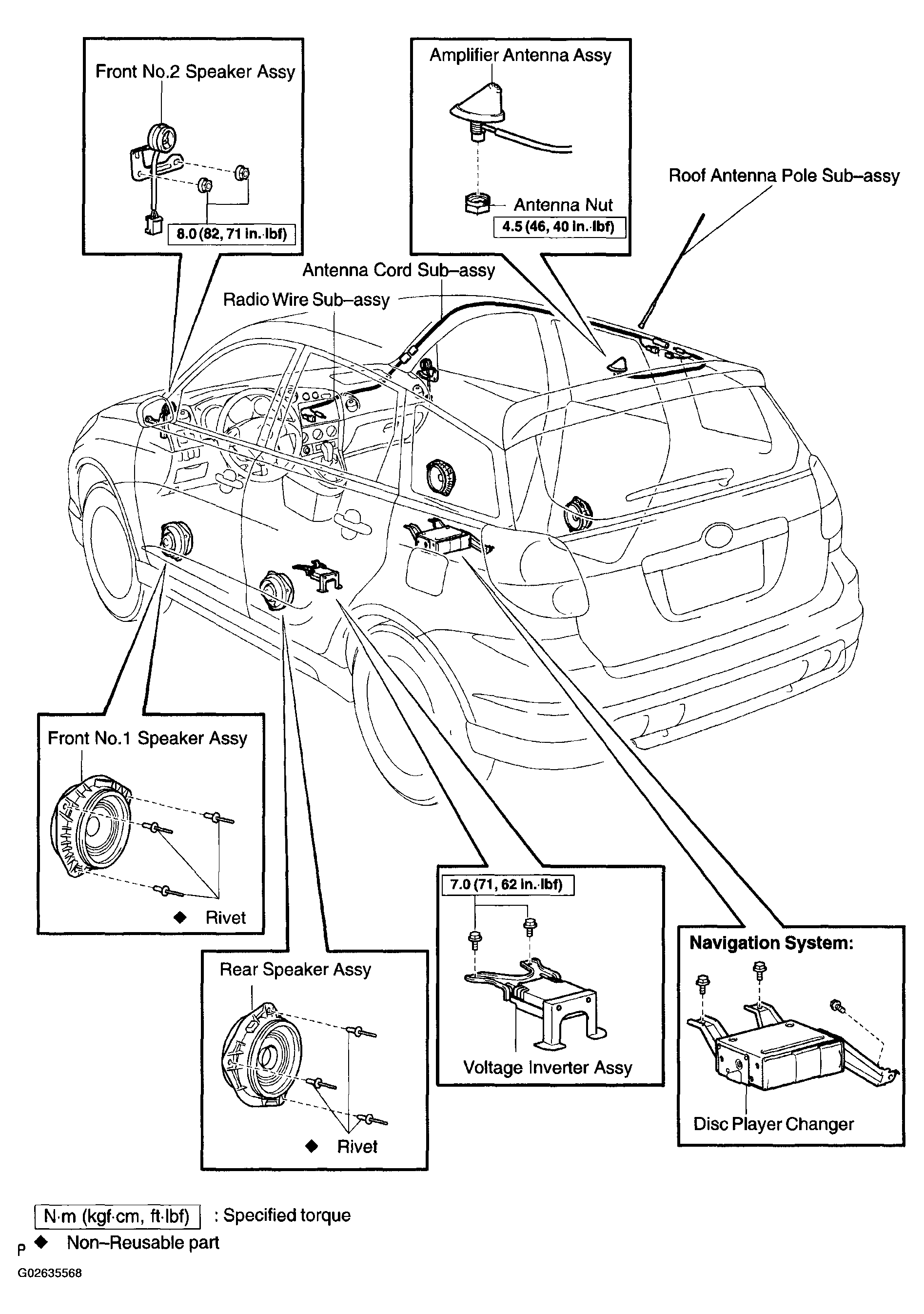

Fig 2: Audio & Visual System Location And Replacement Components (2 Of 4) With Torque Specifications
G02635568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

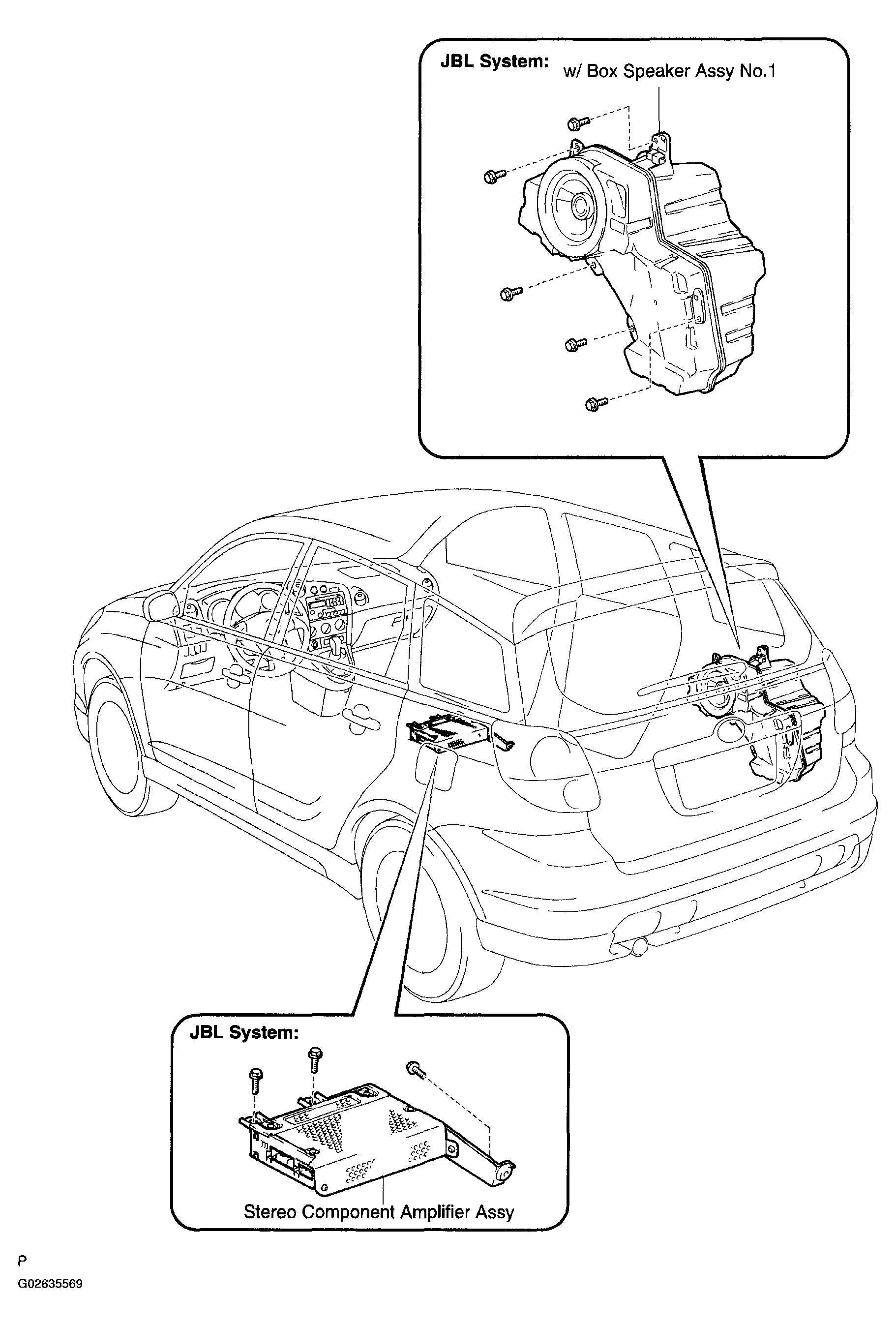

Fig 3: Identifying Audio & Visual System Location And Components (3 Of 4)
G02635569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

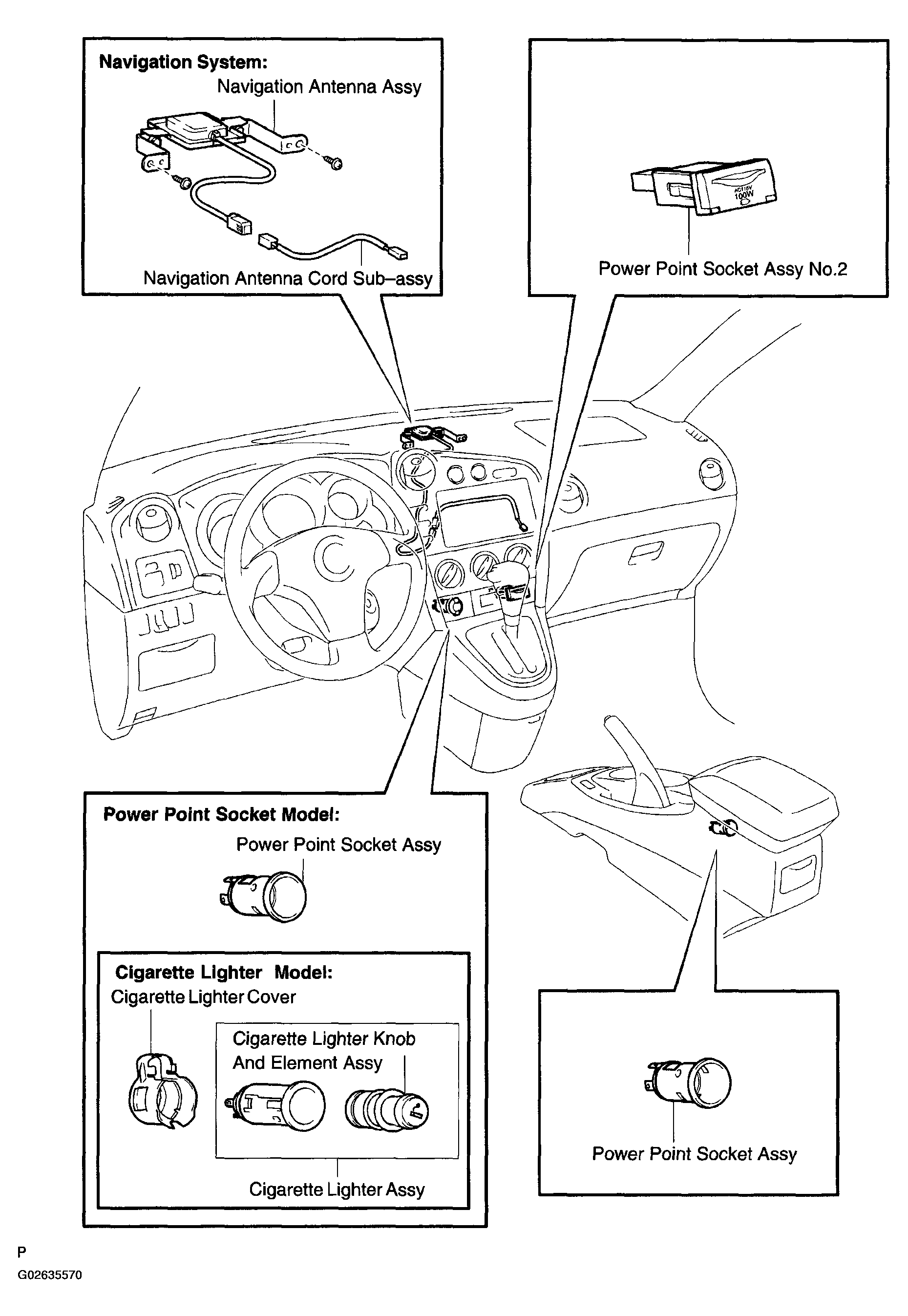

Fig 4: Identifying Audio & Visual System Location And Components (4 Of 4)
G02635570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
