Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviations used in this information in compliance with SAE recommendations, as well as their TOYOTA equivalents.

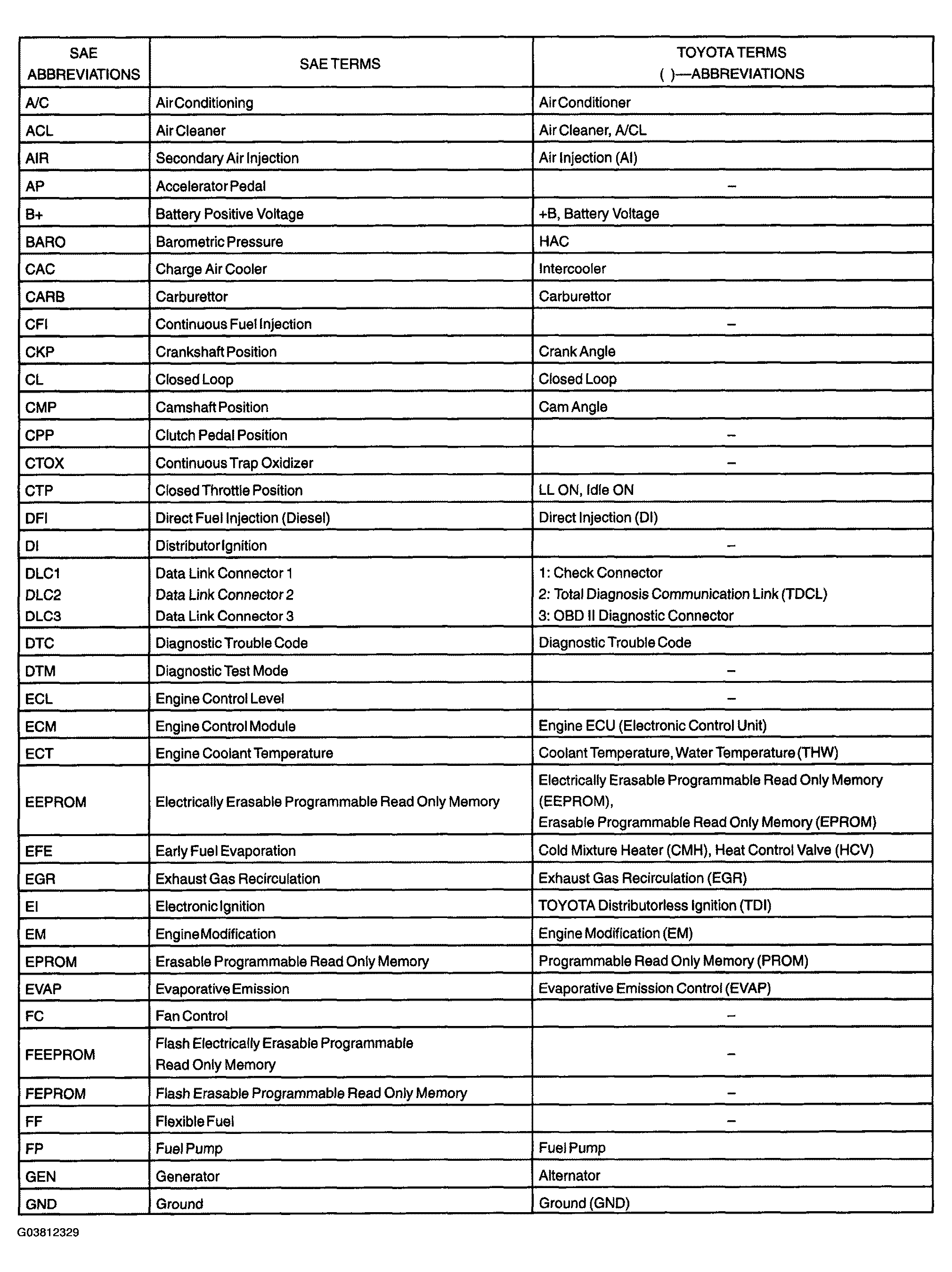

Fig 1: SAE Terms Reference Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: SAE Terms Reference Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

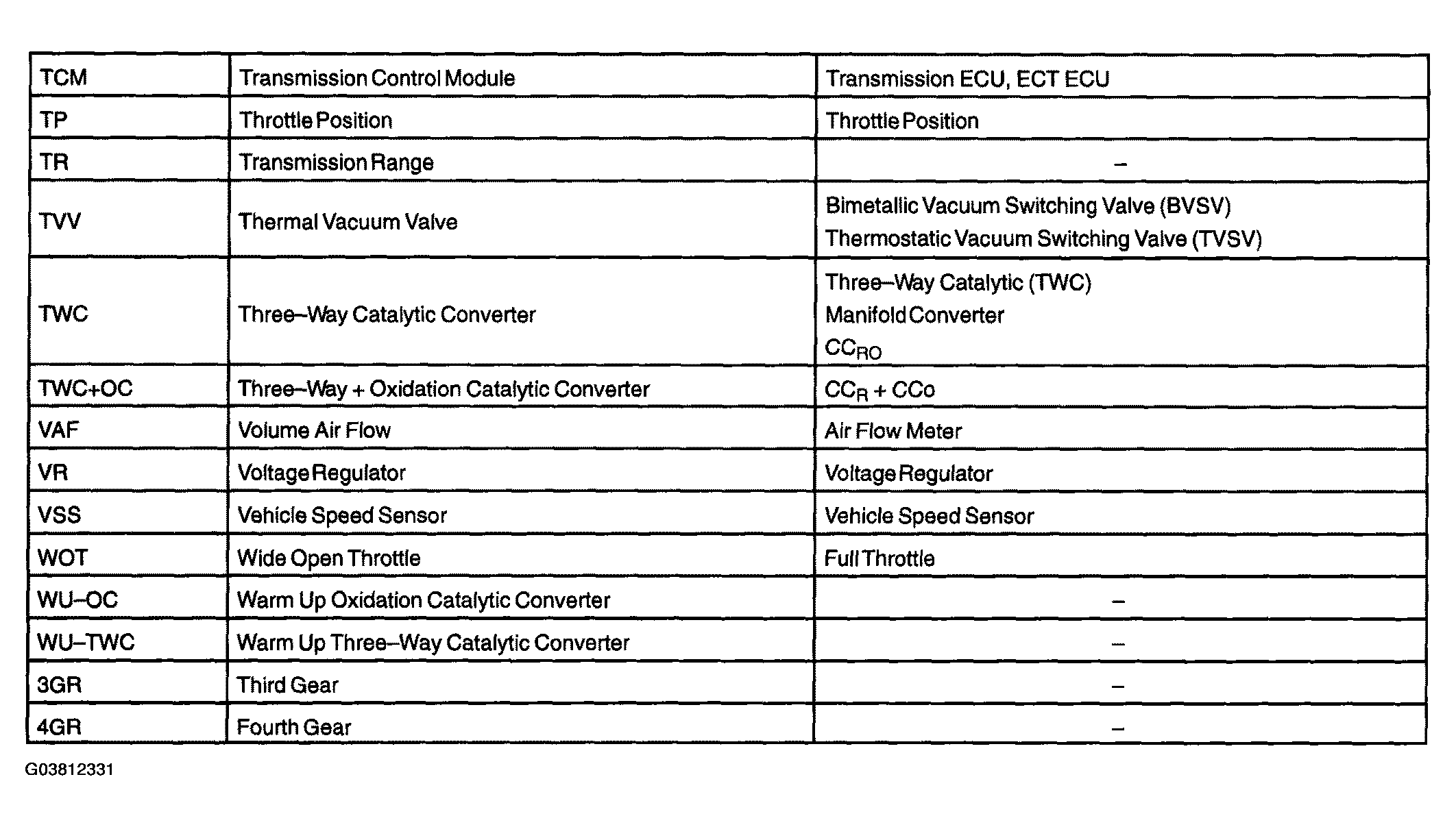

Fig 3: SAE Terms Reference Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
