Front Seat Belt With PRETENSIONER: Components

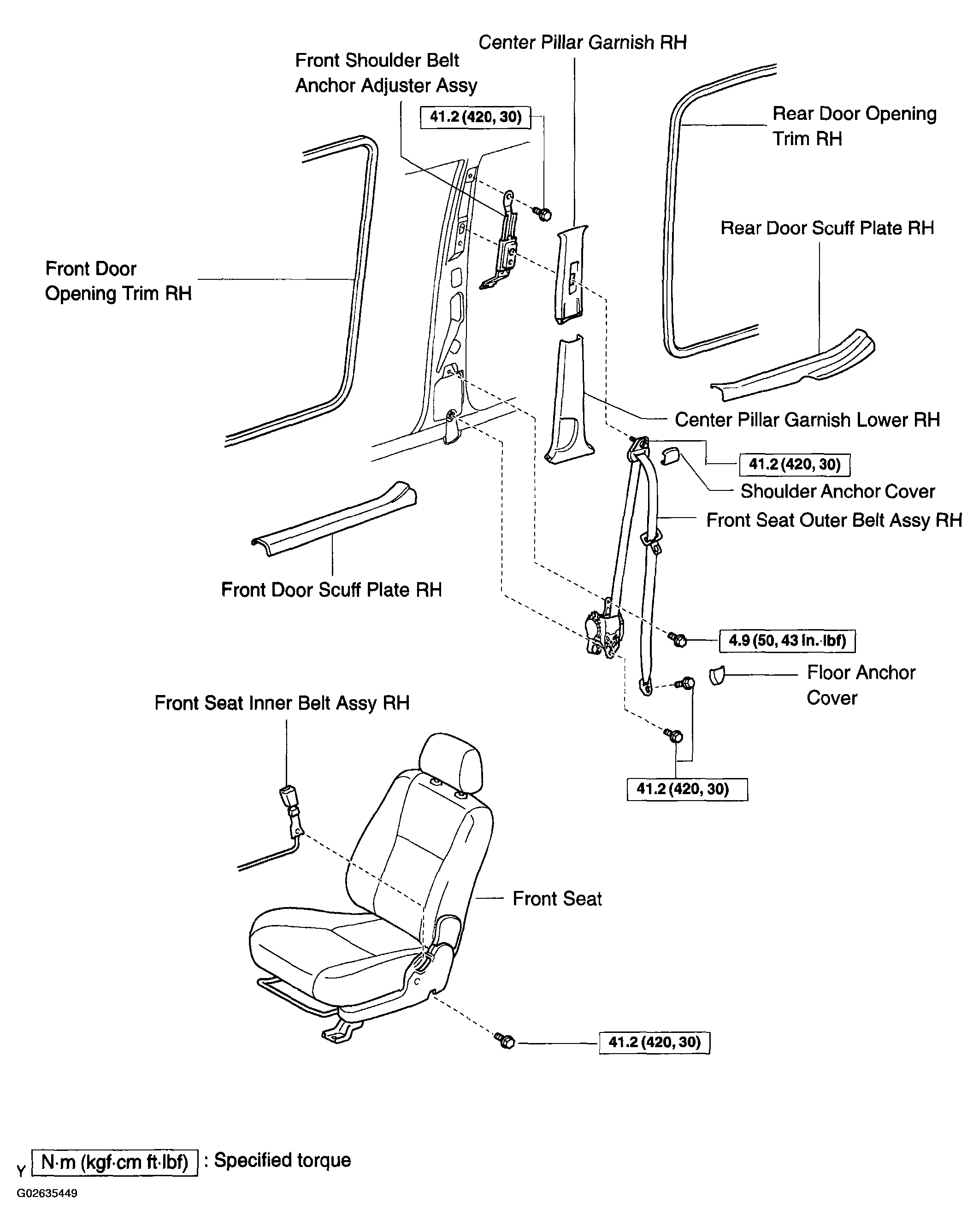

Fig 1: Replacement Components Seat Belt With Torque Specifications
G02635449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
