Light Control Switch Circuit: Wiring Diagram

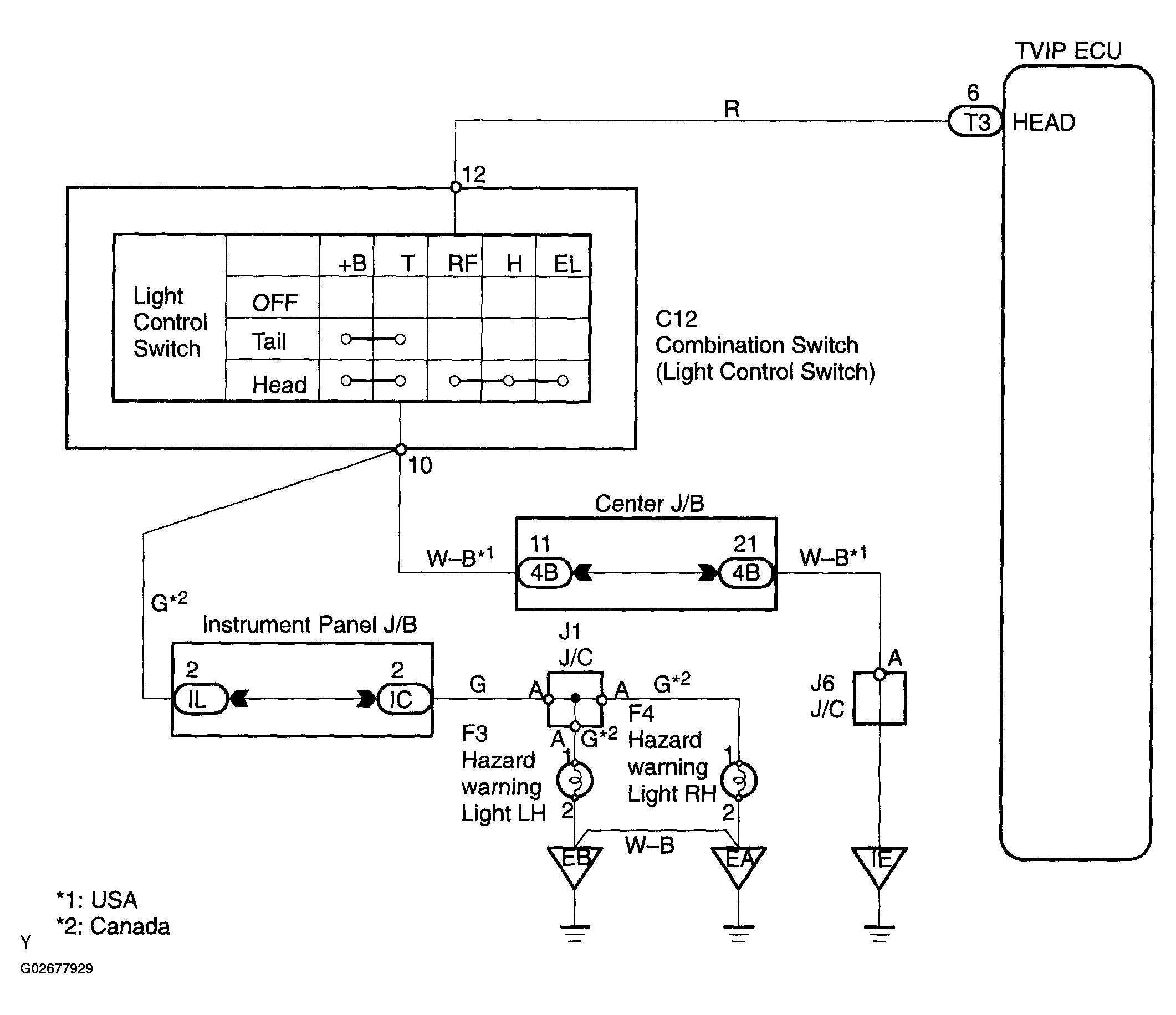

Fig 1: Identifying Light Control Switch Wiring Diagram
G02677929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
