Circuit Description

A short to +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 6 (CANH) or terminals 16 (BAT) and 14 (CANL) of the DLC3.

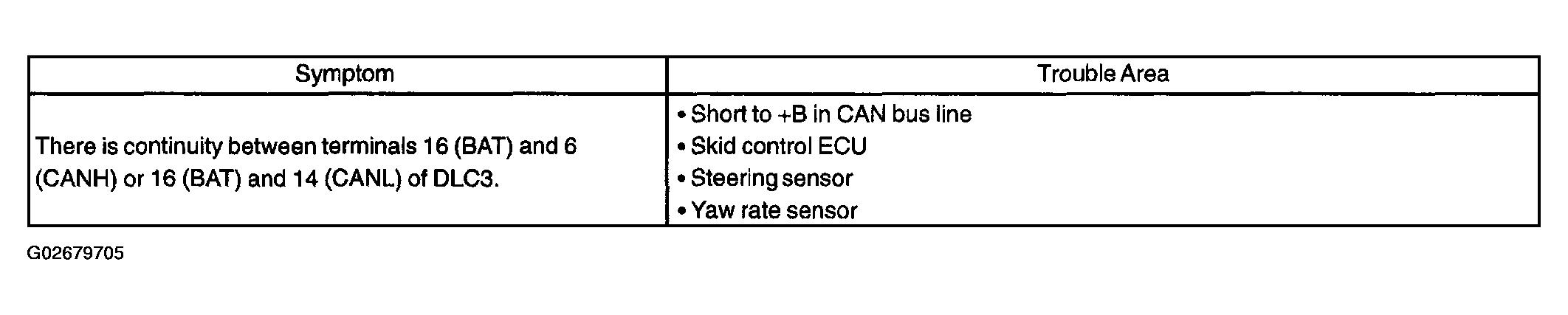

Fig 1: Diagnostic Chart - CAN BUS Line For Short To +B
G02679705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
