Circuit Description

A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 6 (CANH) or terminals 4 (CG) and 14 (CANL) of the DLC3.

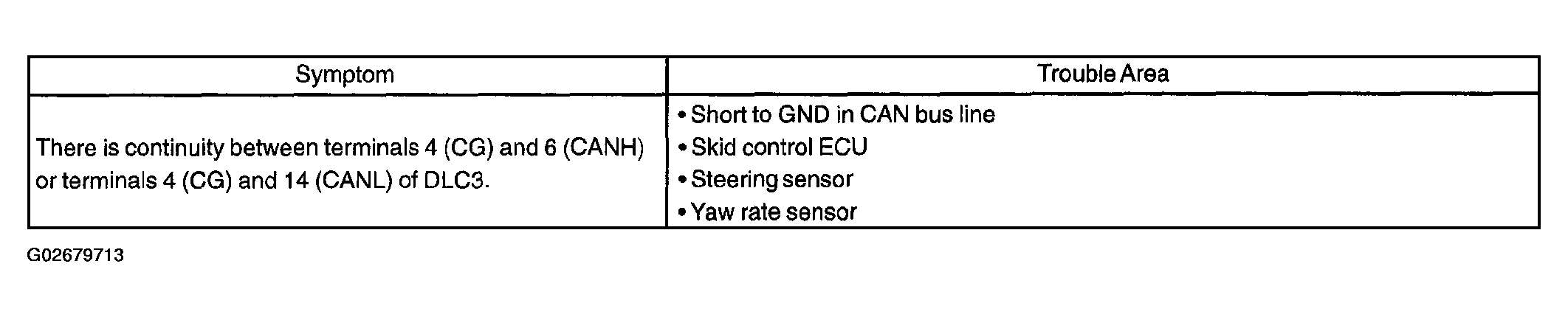

Fig 1: Diagnostic Chart - CAN BUS Line For Short To GND
