Inspection Procedure

1. Measure the resistance according to the value(s) in the table below.

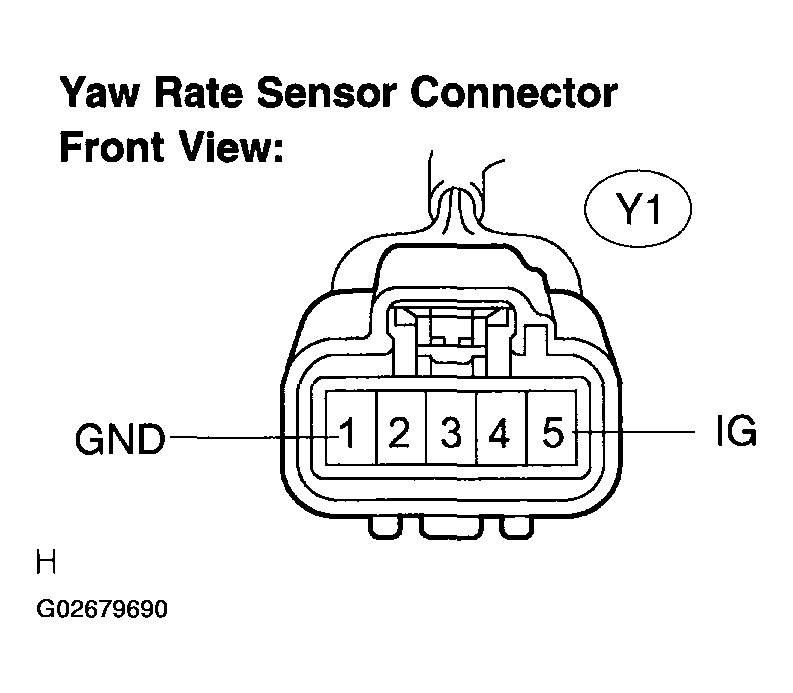

   Fig 1: Identifying Connector Terminal YAW Rate Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   RESISTANCE CONDITION



   Tester connection	Condition	Specified value
   Y1-1 (GND)-Body ground	Always	Below 1 Ω

2. Measure the voltage according to the value(s) in the table below.

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step

REPLACE YAW RATE SENSOR (SEE  YAWRATE SENSOR  )
