Circuit Description

This DTC indicates the internal abnormalities of the ECM.

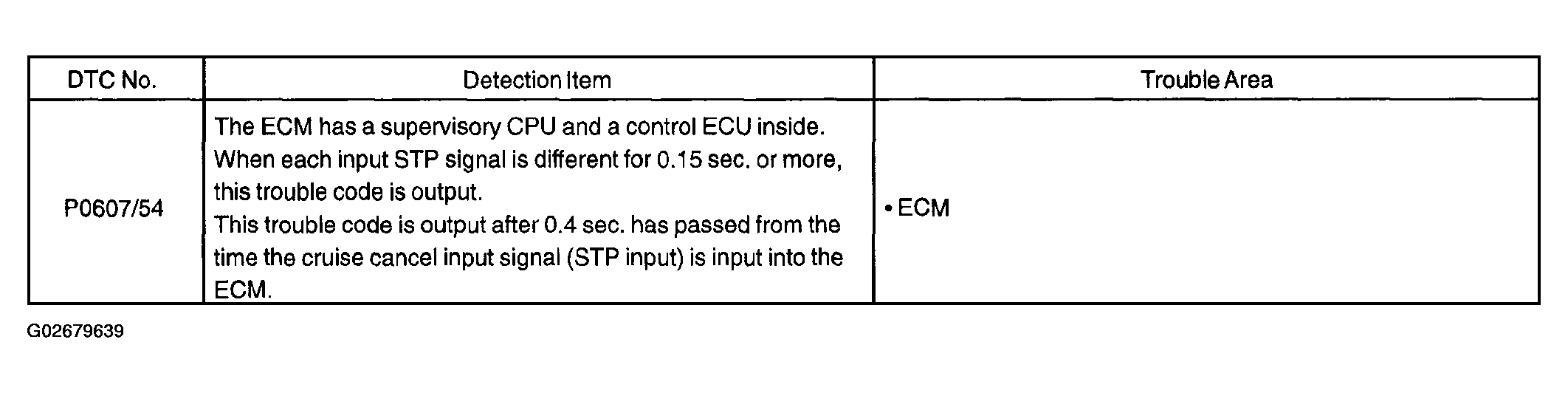

Fig 1: DTC - PO607/54 Trouble Detection Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The ECM receives signals from each sensor to control all the functions of the cruise control with the microcomputer.

When a trouble code is detected, fail safe remains on until the ignition switch is turned off.
