Diagnostic Trouble Code Chart

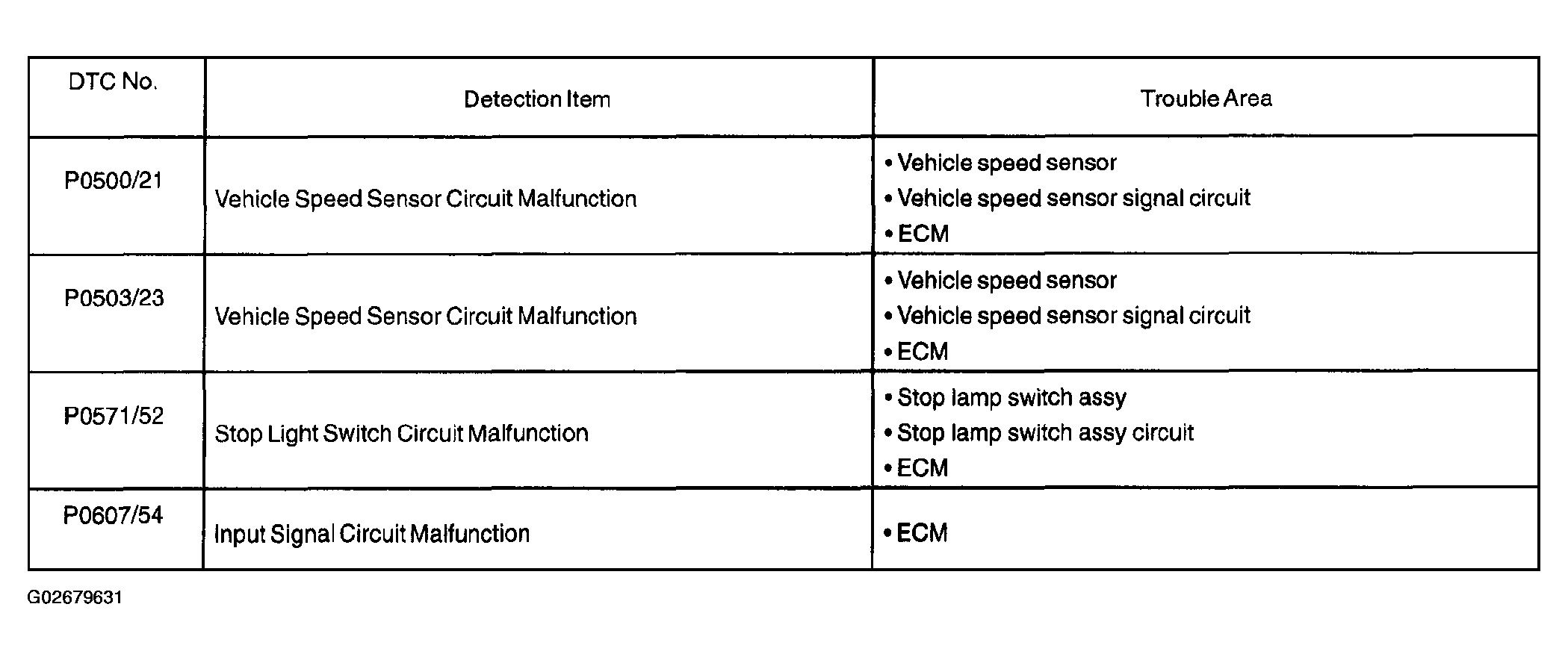

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500/21, P0503/23 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0571/52 | STOP LIGHT SWITCH CIRCUIT MALFUNCTION |
| DTC P0607/54 | INPUT SIGNAL CIRCUIT MALFUNCTION |
HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code.
