Circuit Description

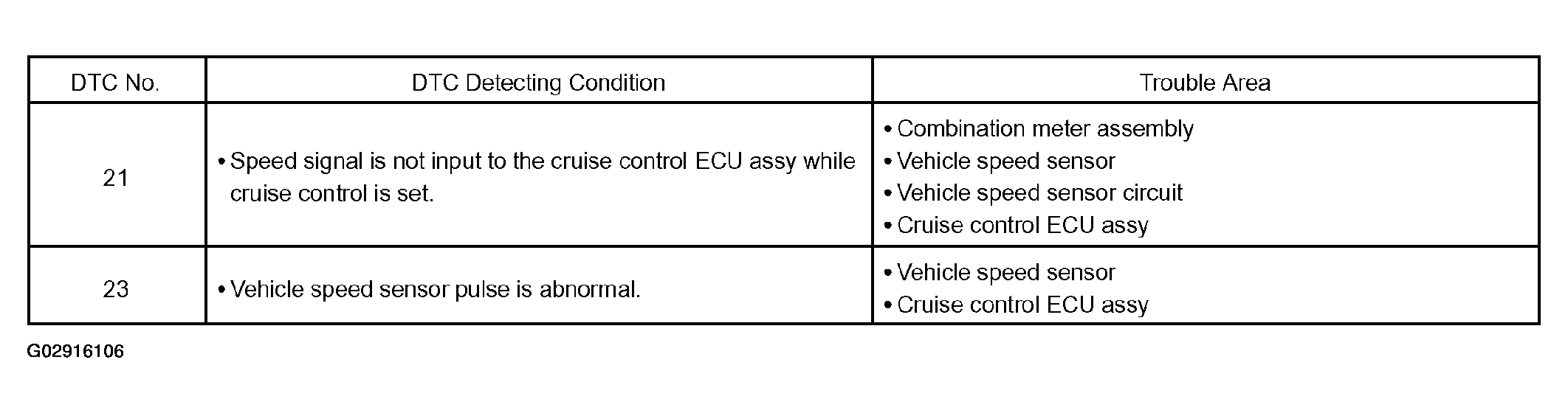

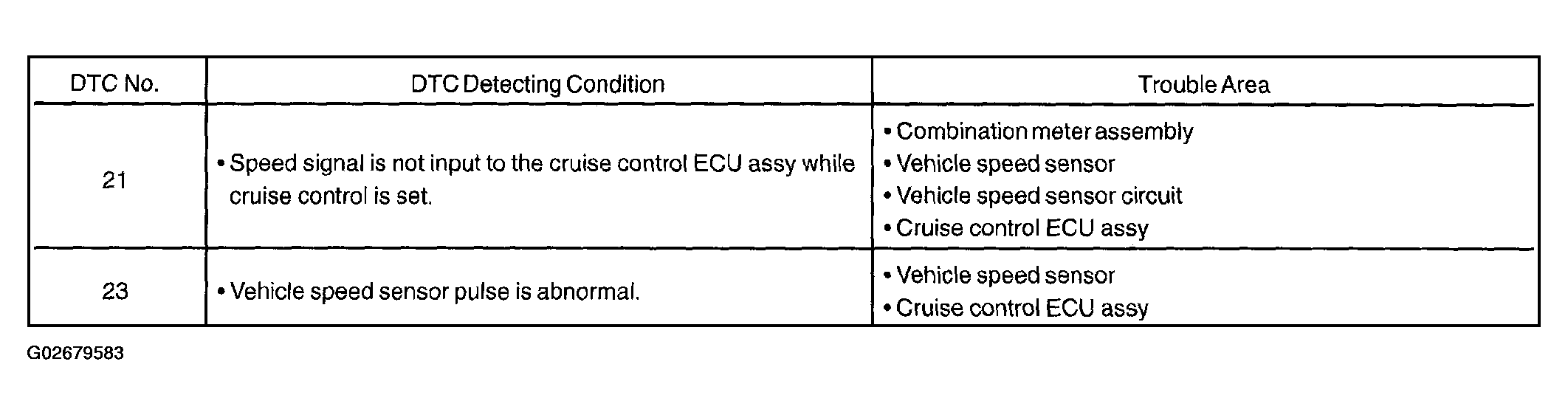

The vehicle speed sensor circuit is sent to cruise control ECU assy as a vehicle speed signal. For each rotation of the shaft, the vehicle speed sensor sends a signal through the combination meter assembly to the cruise control ECU assy (See the following chart). The cruise control ECU assy calculates the vehicle speed from this pulse frequency.
