Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11, 15 | ACTUATOR MOTOR CIRCUIT |
| DTC 12 | ACTUATOR MAGNETIC CLUTCH CIRCUIT |
| DTC 14 | ACTUATOR MECHANICAL MALFUNCTION |
| DTC 21, 23 | OPEN VEHICLE SPEED SENSOR CIRCUIT/ABNORMAL |
| DTC 51 | IDLE SIGNAL CIRCUIT |

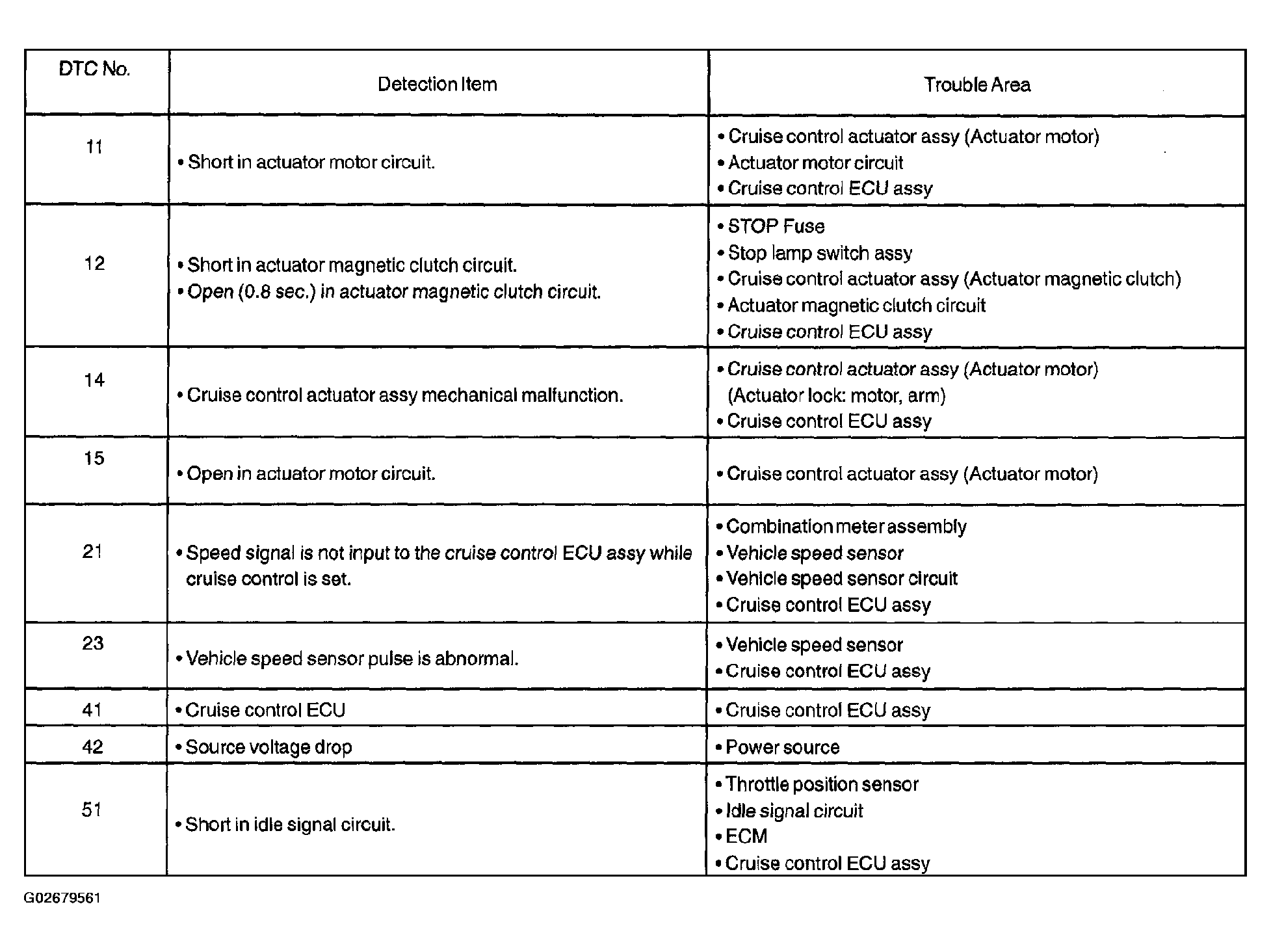

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate step.
