Inspection Procedure

1. Remove the navigation receiver assy and disconnect the connector.

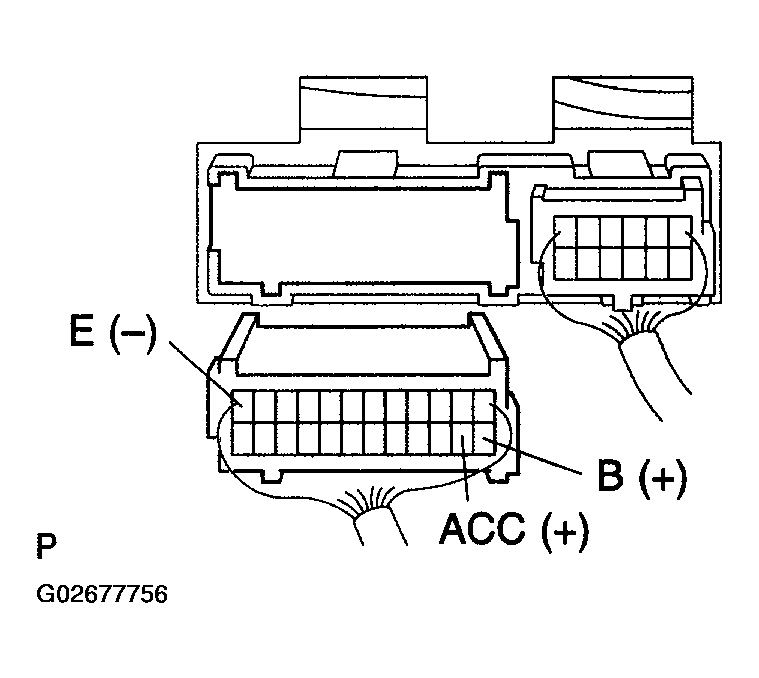

Fig 1: Disconnecting Navigation Receiver Assy Connector (B,ACC,E)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check voltage.
   1. Measure voltage between terminals B, ACC and E of navigation receiver assy at each conditions, as shown in the chart.

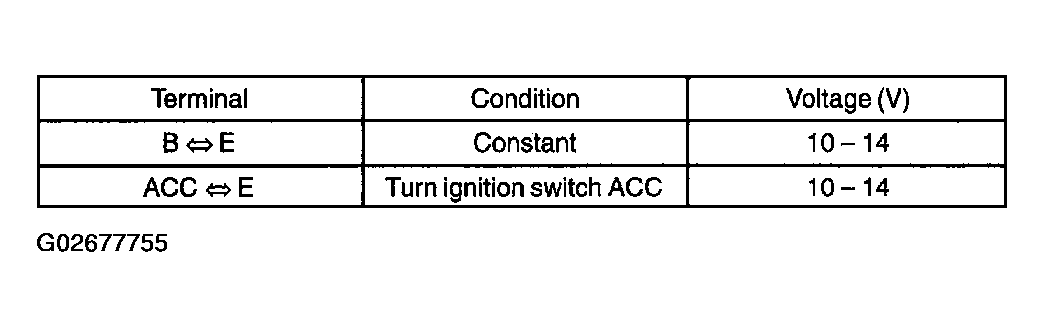

   Fig 2: Navigation Receiver Assy Terminals Voltage Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check continuity.
   1. Check that the continuity exists between terminal E of navigation receiver assy and body ground.

   Standard: Continuity exists.

1. NG: REPAIR OR CONNECTOR REPLACE HARNESS OR

OK: Go To Next Step

CHECK AND REPLACE NAVIGATION RECEIVER ASSY
