Circuit Description

Refer to DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT, DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT, DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT .

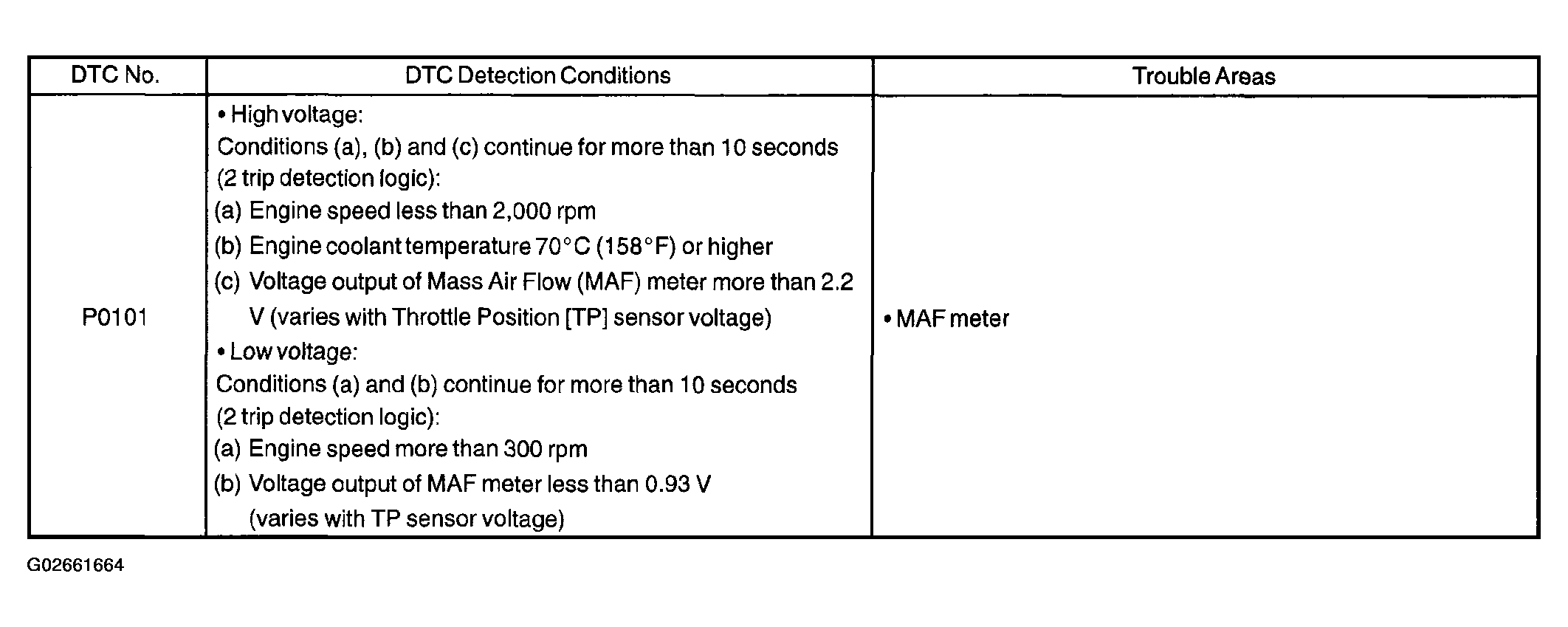

Fig 1: DTC Trouble Detection Chart (DTC P0101)
G02661664Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
