Circuit Description

Refer to DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

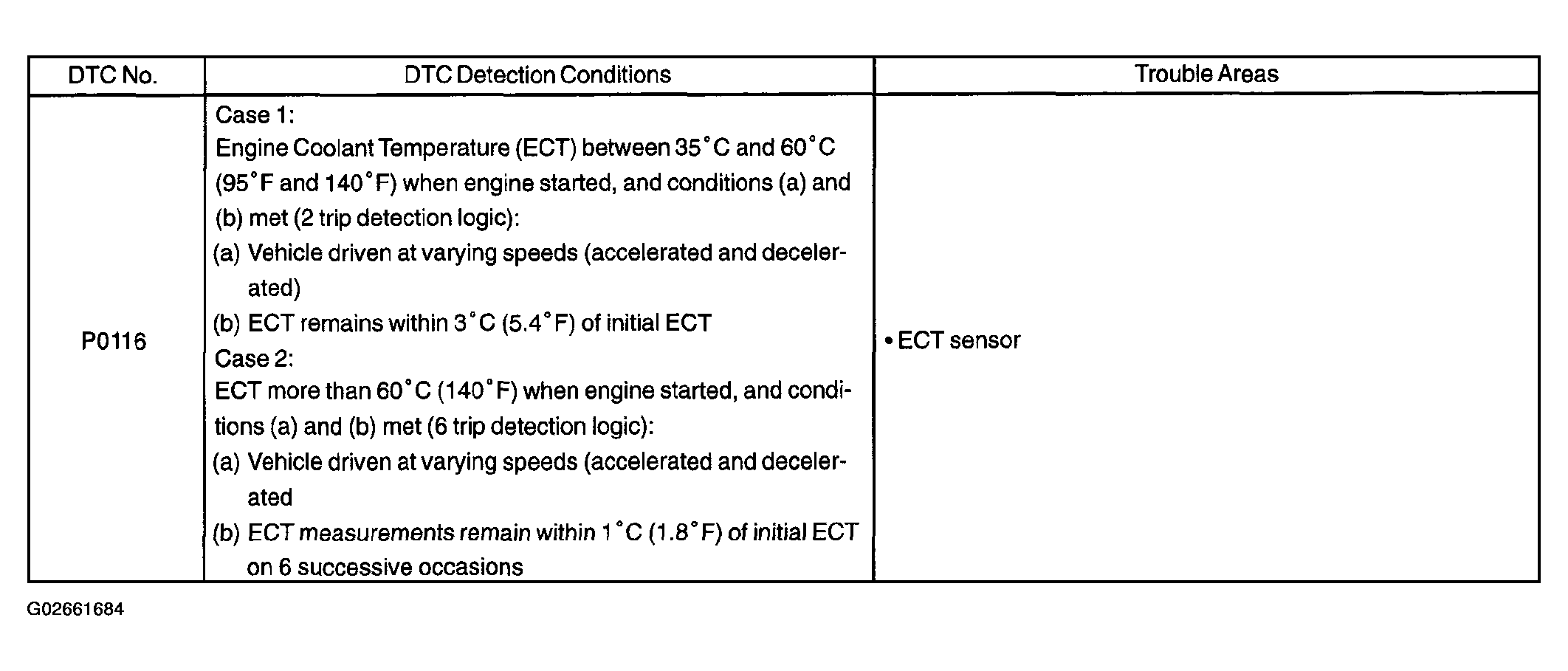

Fig 1: DTC Trouble Detection Chart (DTC P0116)
G02661684Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
