ECM Power Source Circuit: Wiring Diagram

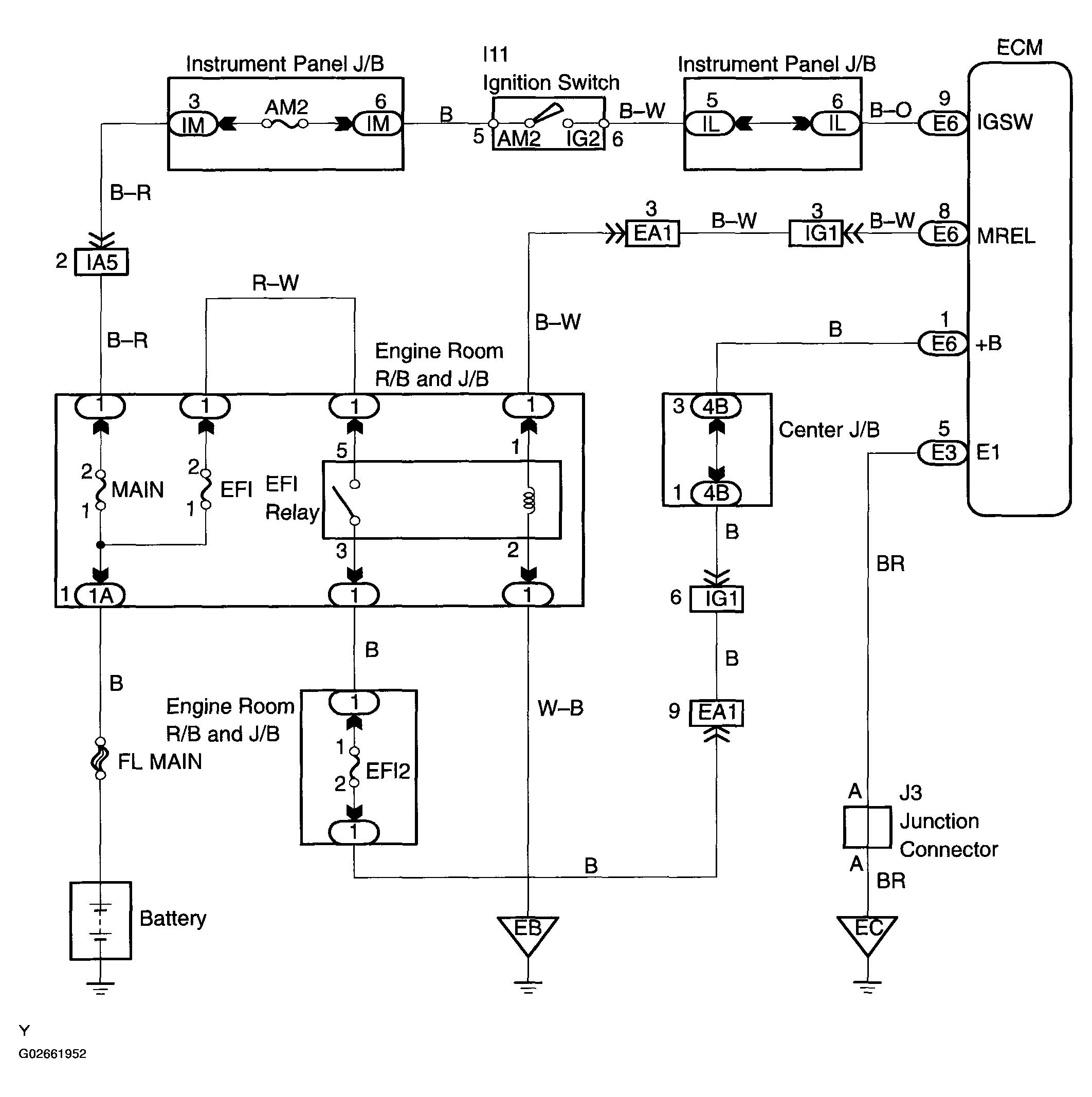

Fig 1: ECM Power Source Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
