Throttle Body ASSY (1ZZ-FE (4WD)): Components: Notes

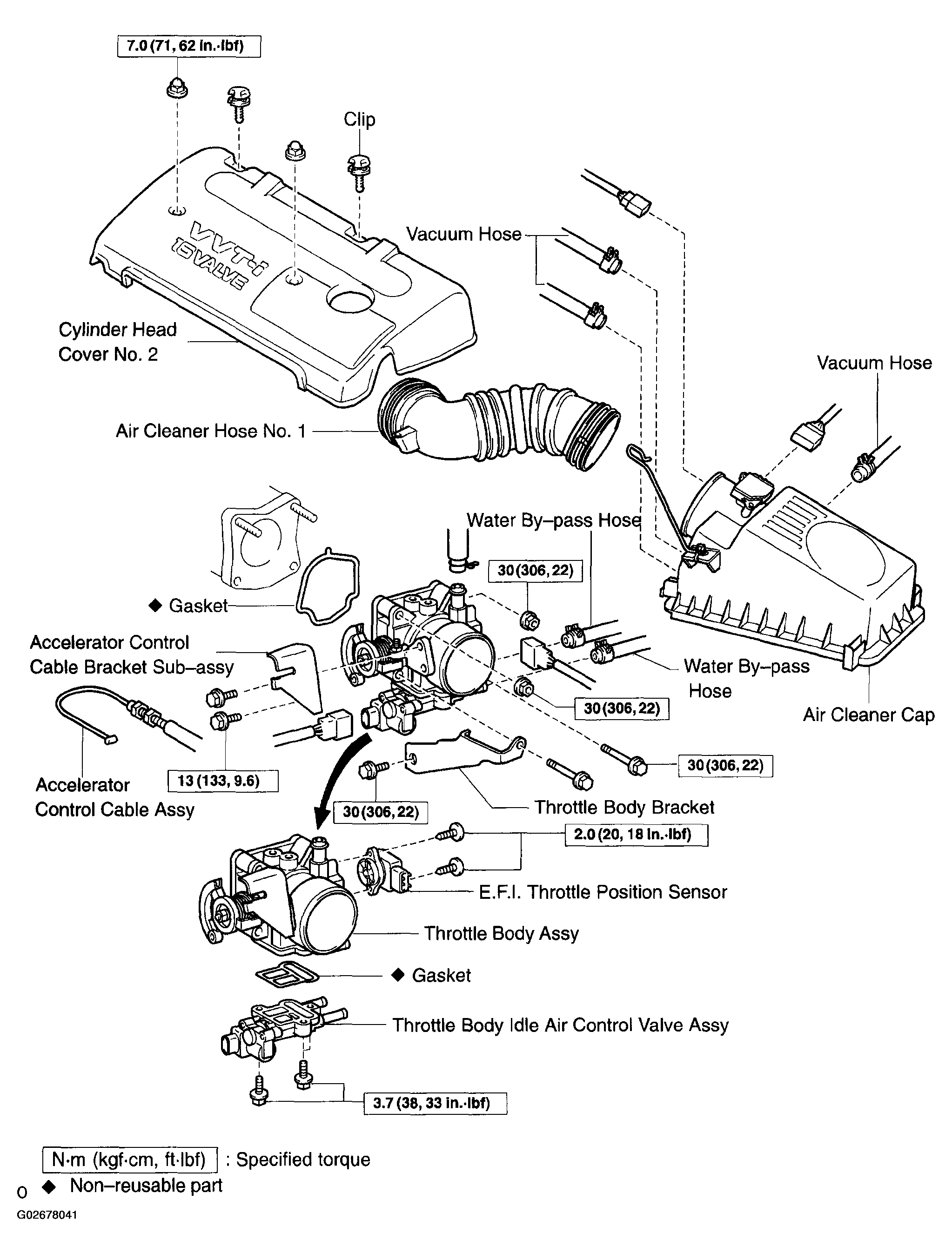

Fig 1: Removing Throttle Body Components With Torque Specifications
G02678041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
