Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0335 CRANKSHAFT POSITION SENSOR "A" CIRCUIT, DTC P0339 CRANKSHAFT POSITION SENSOR "A" CIRCUIT INTERMITTENT .

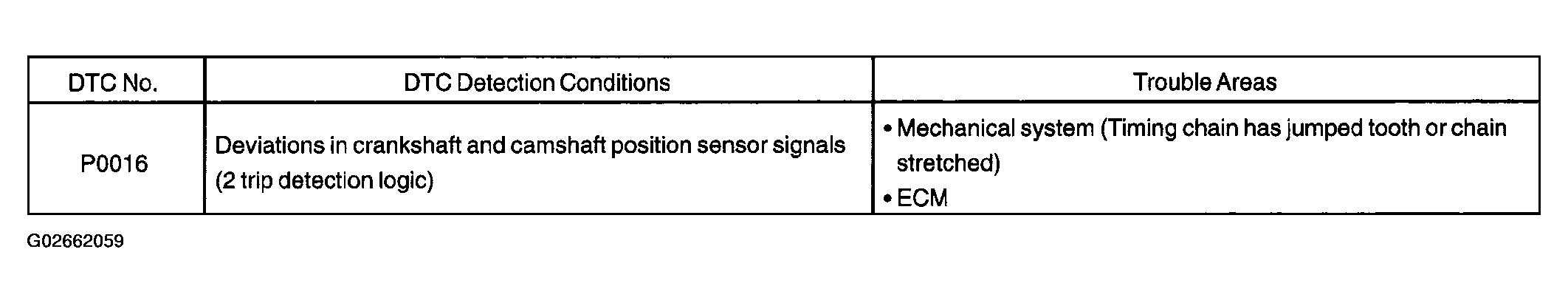

Fig 1: DTC P0016 - Trouble Detection Chart
G02662059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
