Circuit Description
WARNING: This page is about a different variant/trim than selected.
- Refer to DTC P0130 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 1), DTC P2195 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1) for sensor 1.
- Refer to DTC P0136 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 2), DTC P0138 OXYGEN SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 2) for sensor 2.

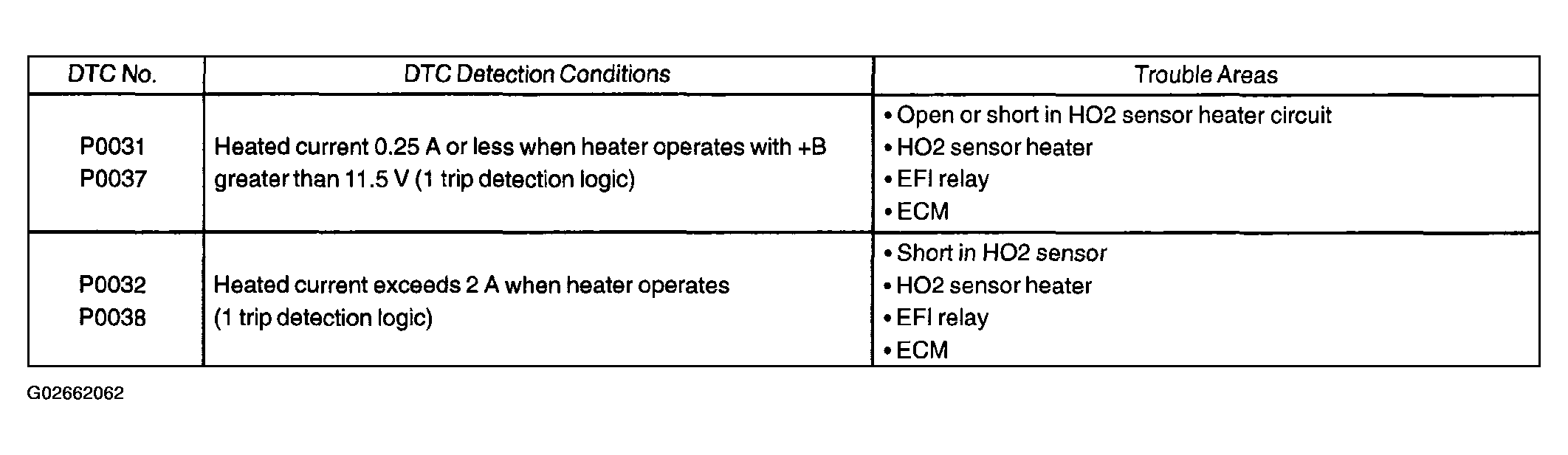

HINT:
- When any of these DTCs are set, the ECM enters fail-safe mode. During fail-safe mode, the ECM turns off the Heated Oxygen (HO2) sensor heater. Fail-safe mode continues until the ignition switch is turned to OFF.
- The ECM provides a pulse width modulated control circuit to adjust the current through the heater. The sensor heater circuit uses a relay on the +B side of the circuit.
