Circuit Description

The occupant classification sensor front LH circuit consists of the occupant classification ECU and the occupant classification sensor front LH.

DTC B1780 is recorded when a malfunction is detected in the occupant classification sensor front LH circuit.

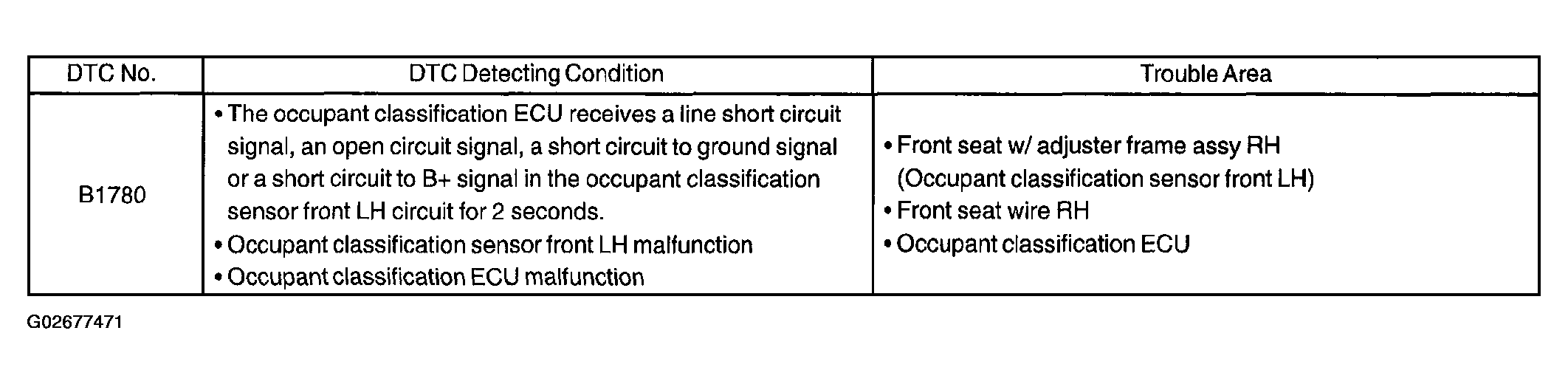

Fig 1: DTC Condition Detecting Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1780 of the passenger occupant classification system.
• Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.
