Circuit Description
The occupant classification sensor front RH circuit consists of the occupant classification ECU and the occupant classification sensor front RH.

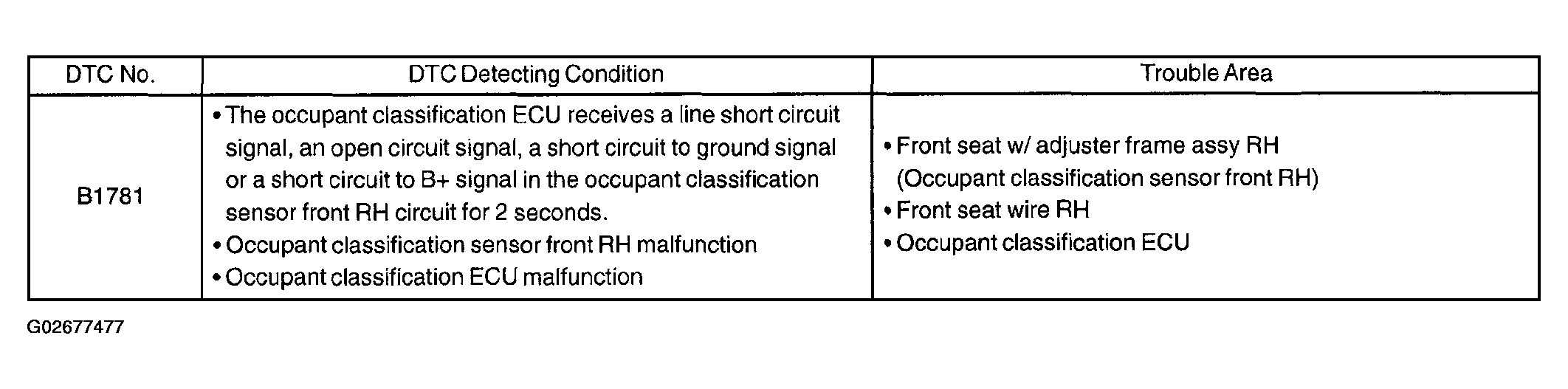

DTC B1781 is recorded when a malfunction is detected in the occupant classification sensor front RH circuit.
HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1781 of the passenger occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.
