Circuit Description

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

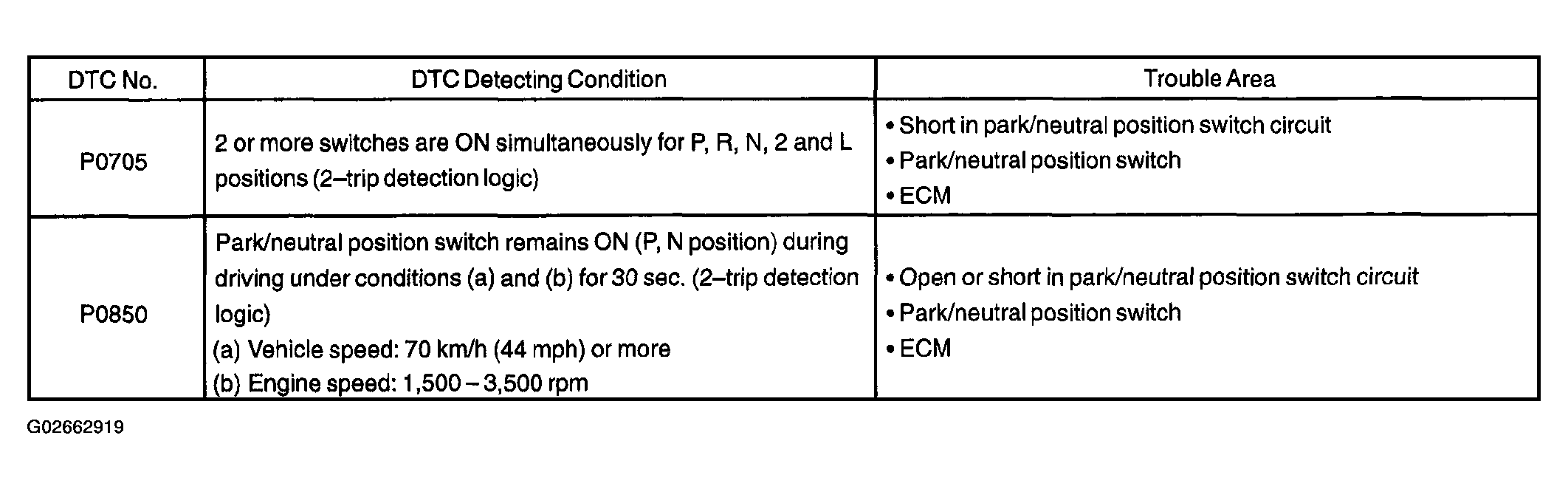

Fig 1: DTC Table
G02662919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
