Throttle Body ASSY (1ZZ-FE (Ff)): Components

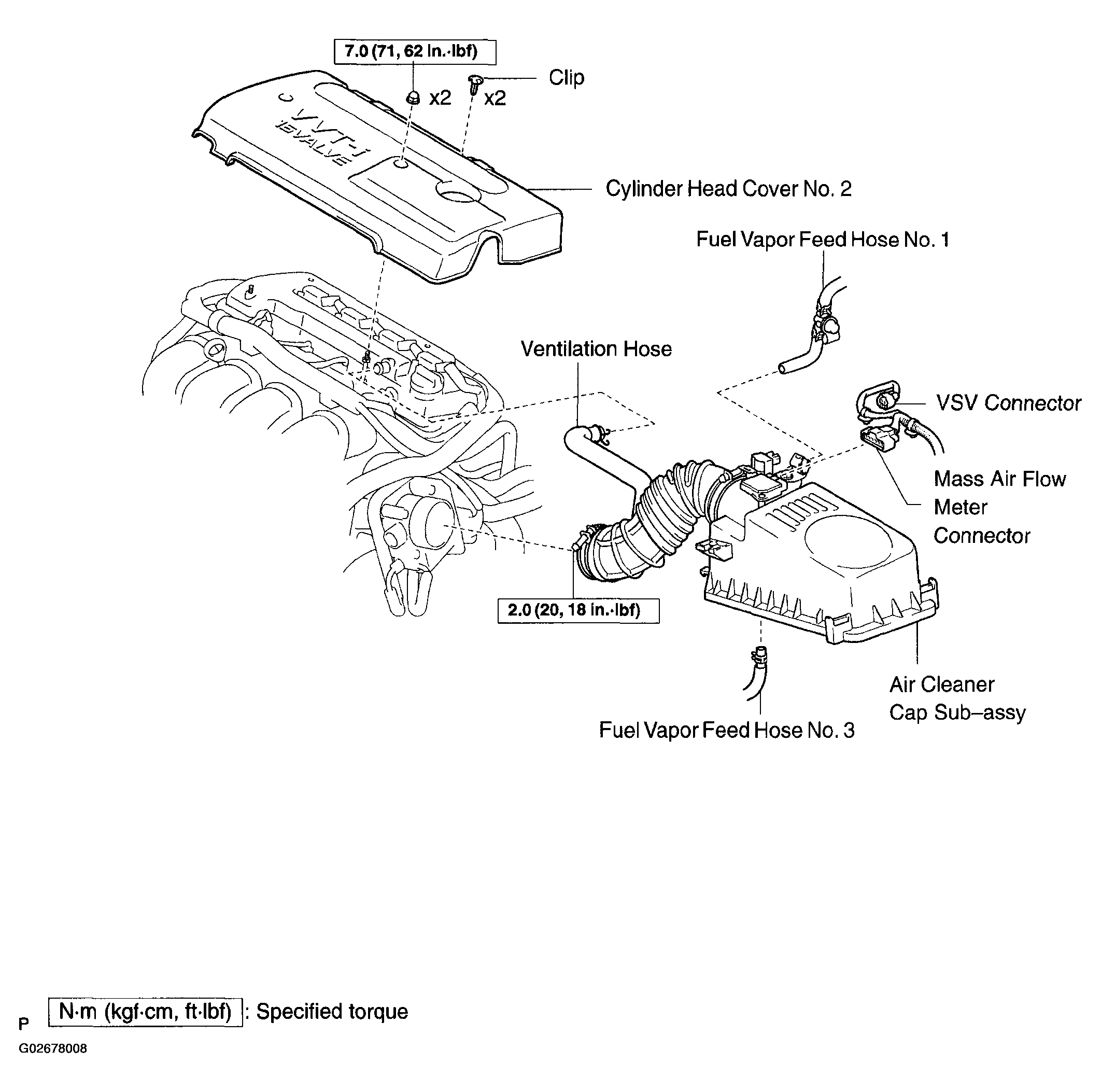

Fig 1: Exploded View Of Throttle Body Assy Components (1 Of 2) With Torque Specifications
G02678008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

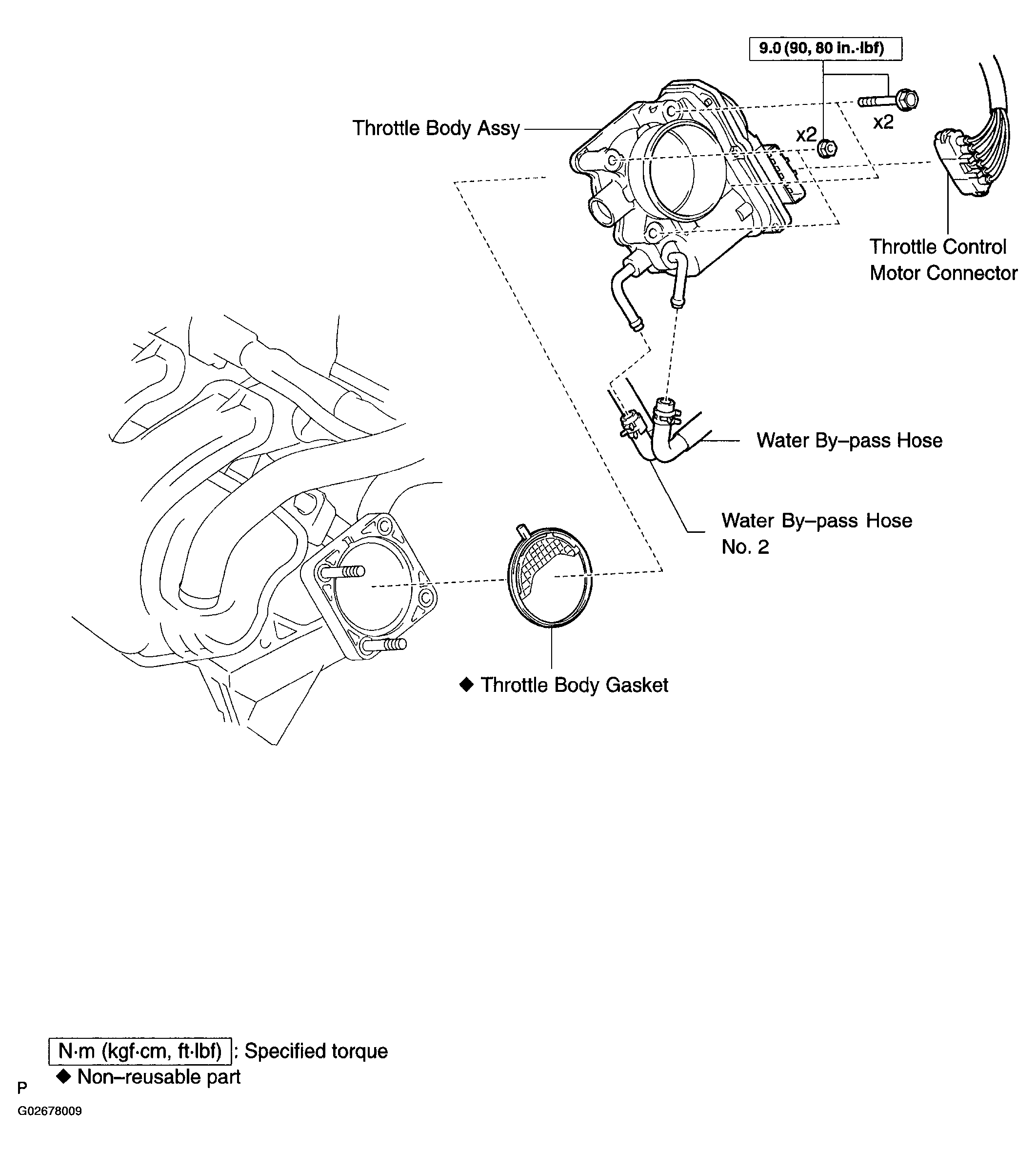

Fig 2: Exploded View Of Throttle Body Assy Components (2 Of 2) With Torque Specifications
G02678009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
