Throttle Body ASSY (1ZZ-FE (Ff)): Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
DRAIN ENGINE COOLANT (See ENGINE COOLANT (2ZZ-GE) )
REMOVE CYLINDER HEAD COVER NO.2

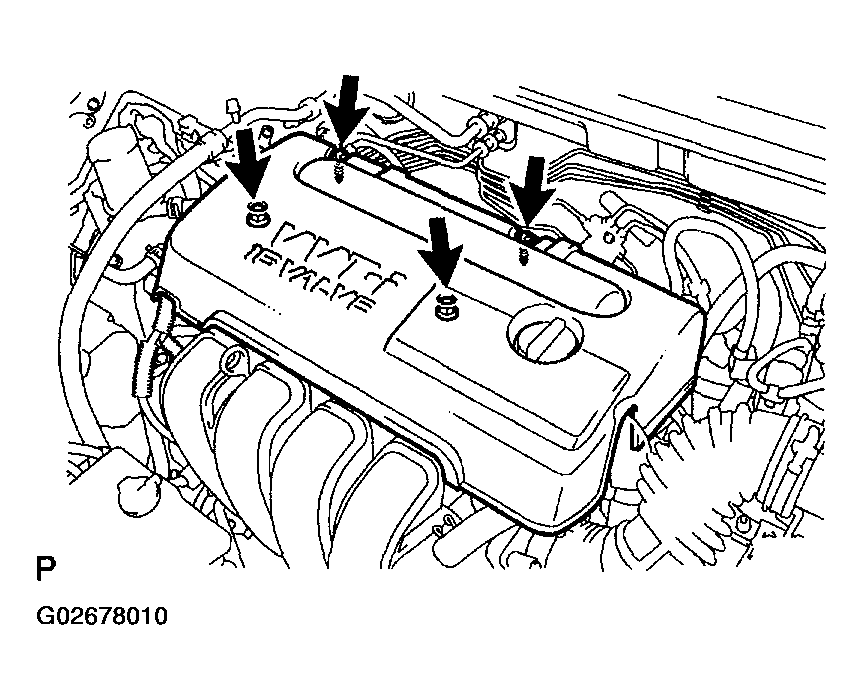

1. Remove the 2 nuts and 2 clips, then remove the cylinder head cover No. 2.

  Fig 1: Removing Nut And Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSY

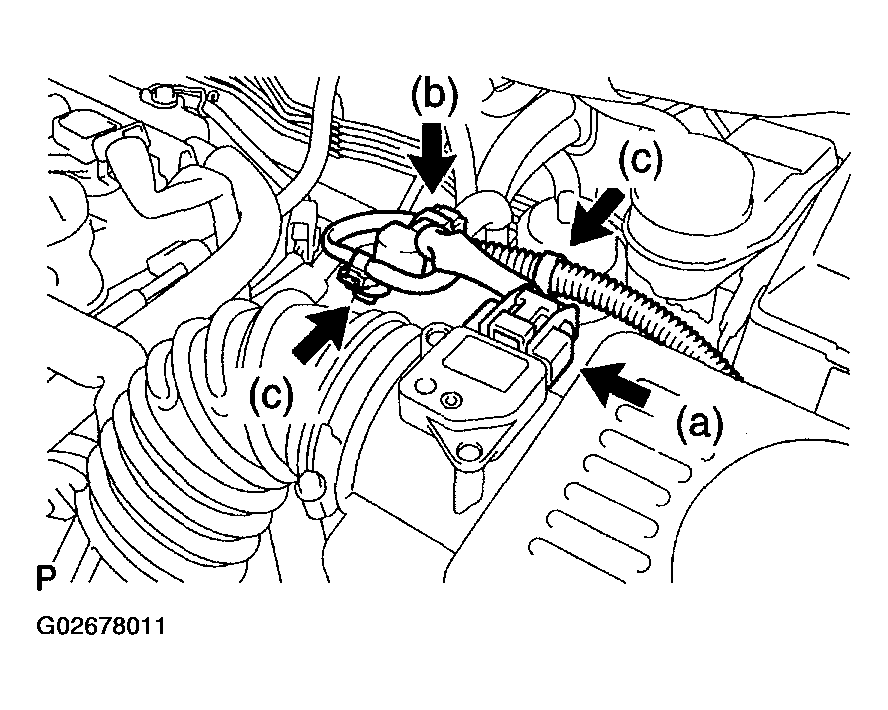

1. Disconnect the mass air flow meter connector.
2. Disconnect the VSV connector.
3. Remove the 2 wire harness clamps.

  Fig 2: Disconnecting VSV Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

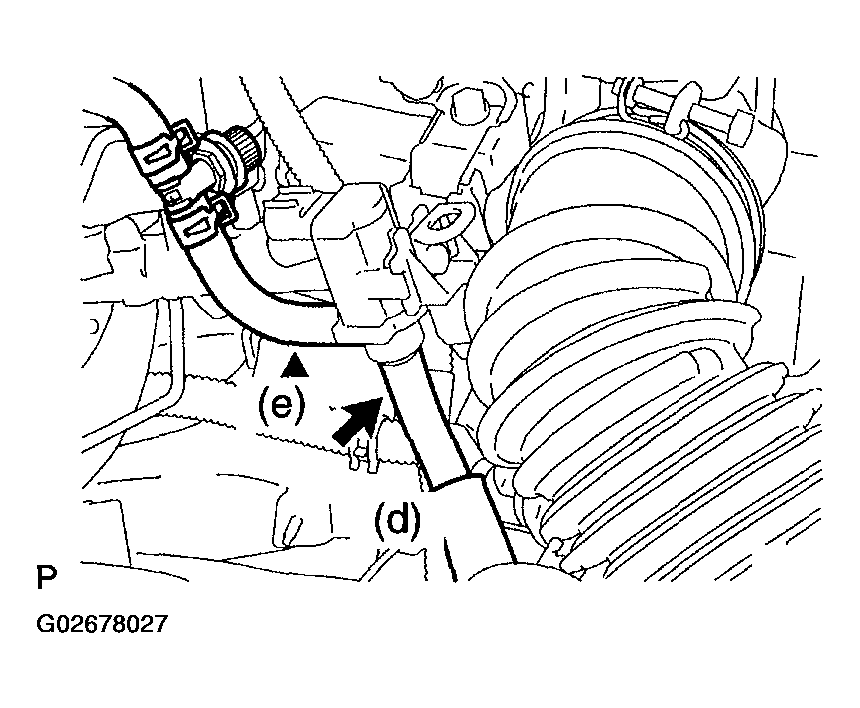

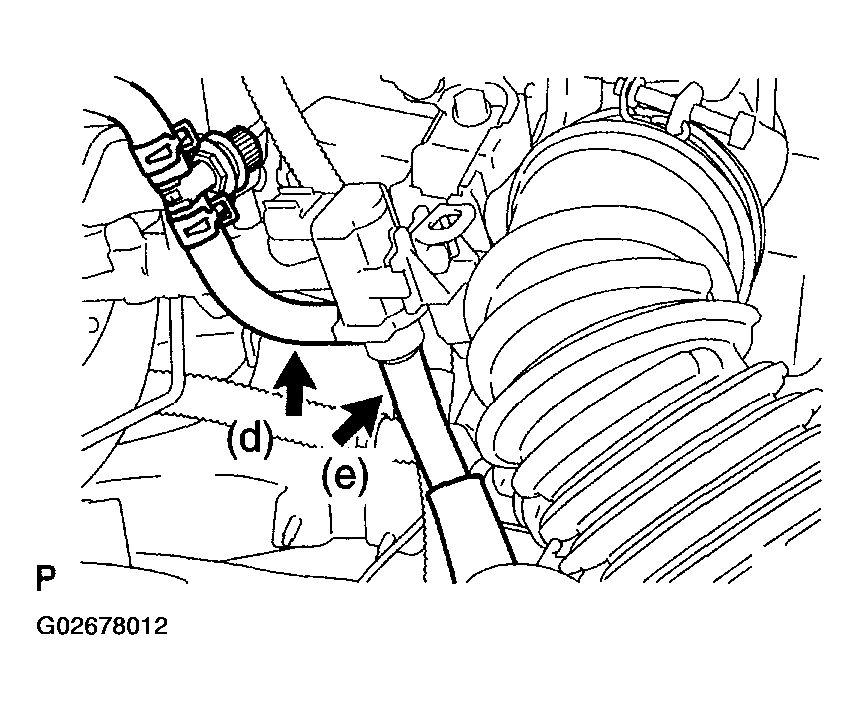

4. Disconnect the fuel vapor feed hose No. 1 from the VSV.
5. Disconnect the fuel vapor feed hose No. 3 from the VSV.

  Fig 3: Disconnecting Fuel Vapor Feed Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

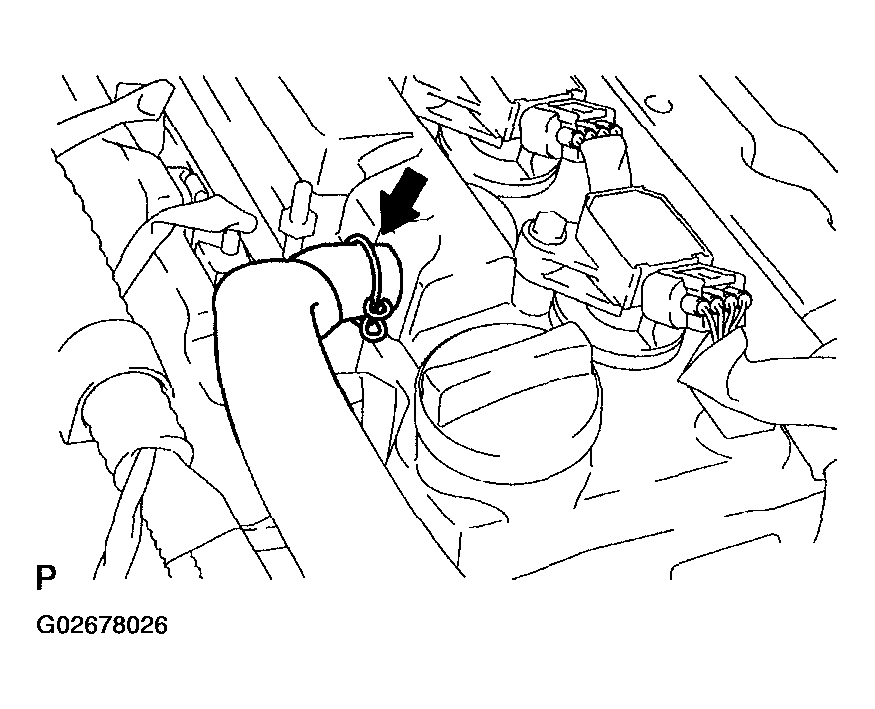

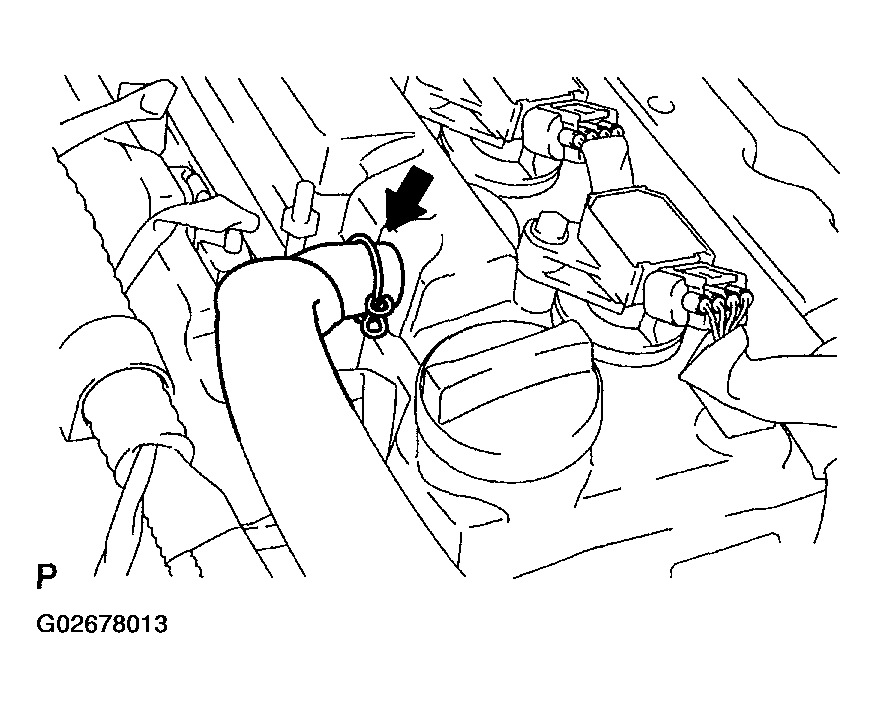

6. Disconnect the ventilation hose No. 1 from the cylinder head cover.

  Fig 4: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

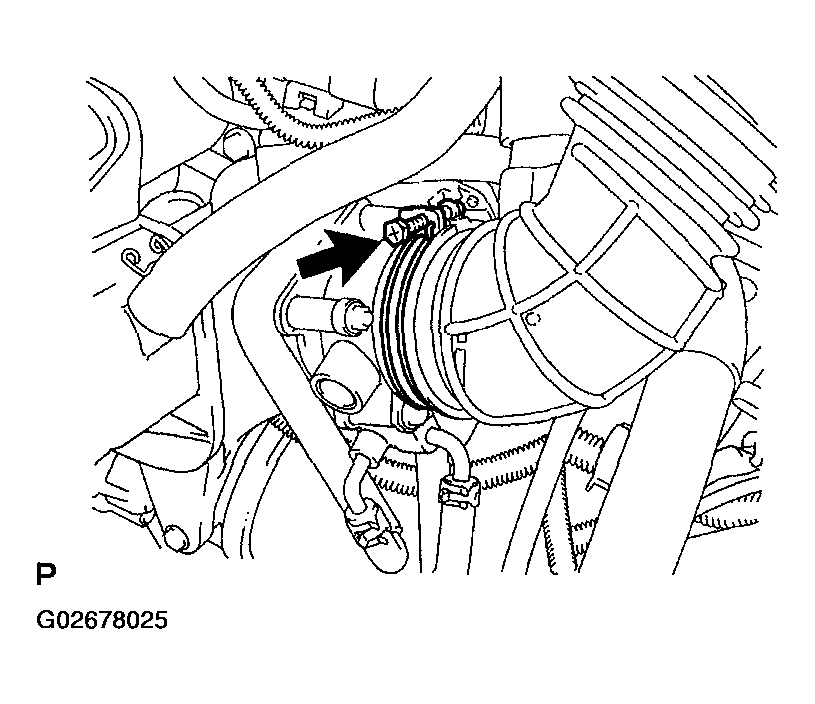

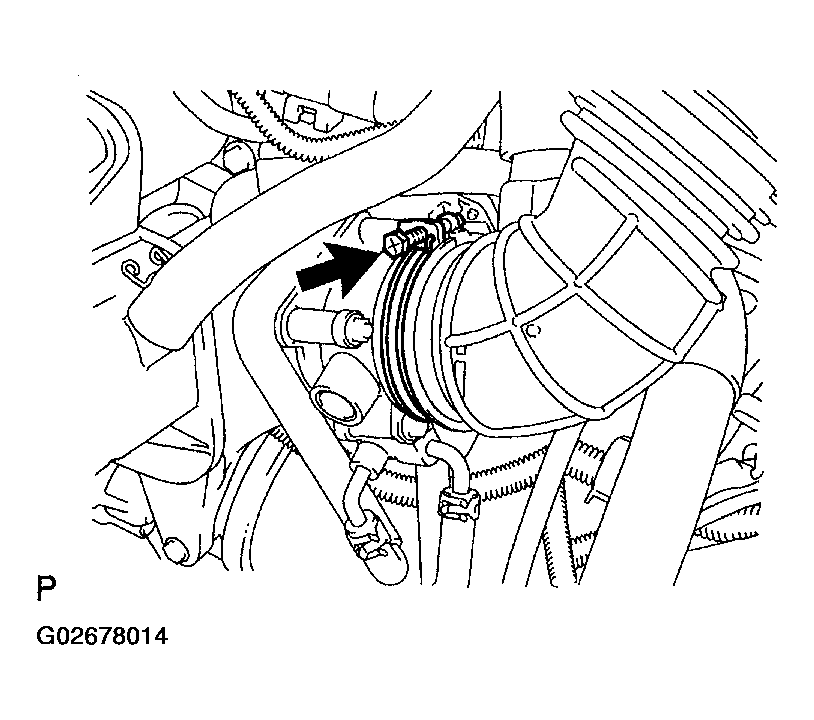

7. Loosen the hose clamp bolt and air cleaner hose No. 1.

  Fig 5: Removing Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

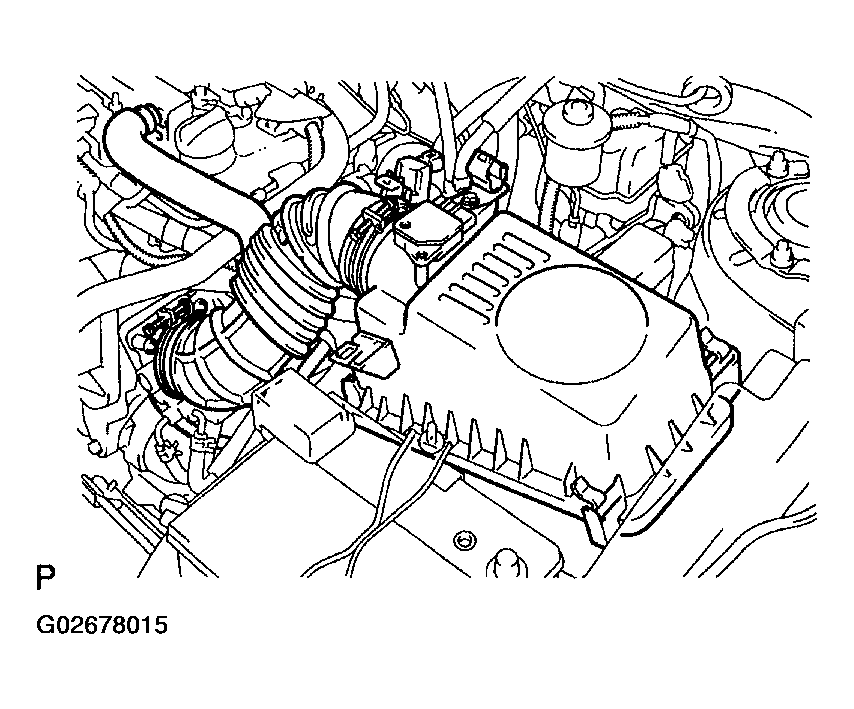

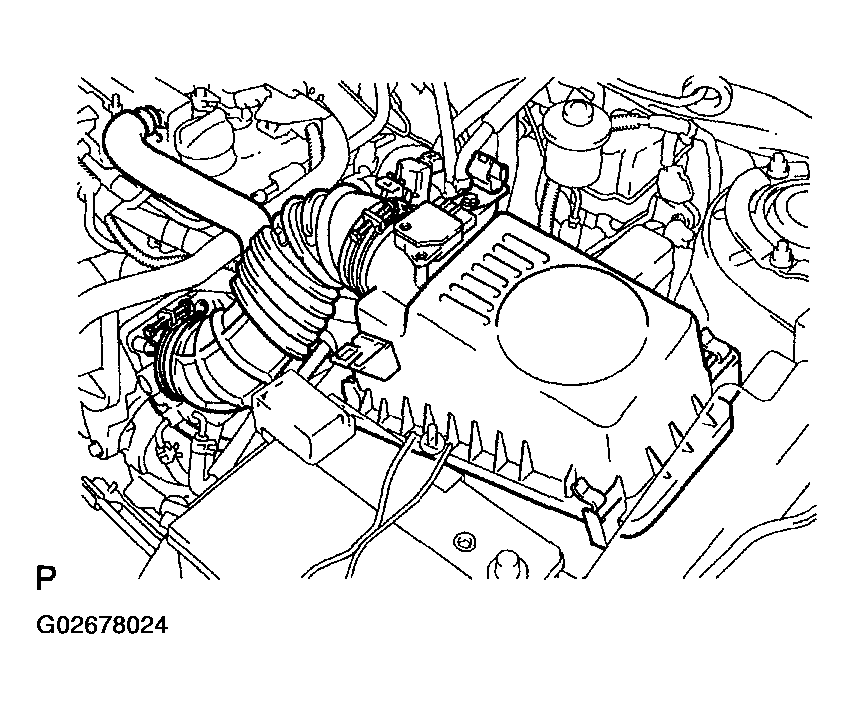

8. Remove the air cleaner cap together with the air cleaner hose.

  Fig 6: Removing Air Cleaner Cap And Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSY

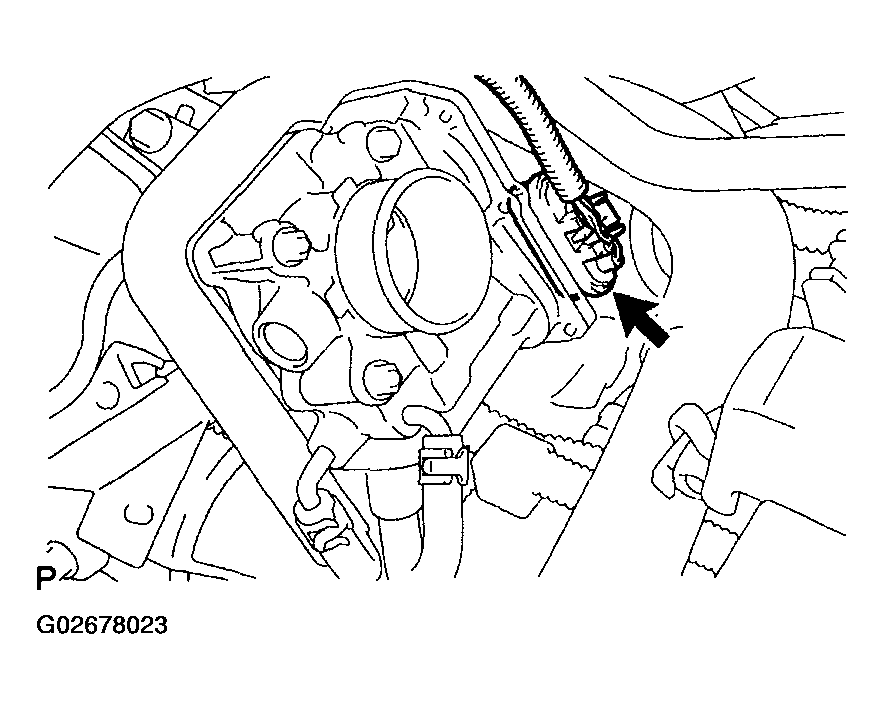

1. Disconnect the throttle control motor connector.

  Fig 7: Removing Throttle Control Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

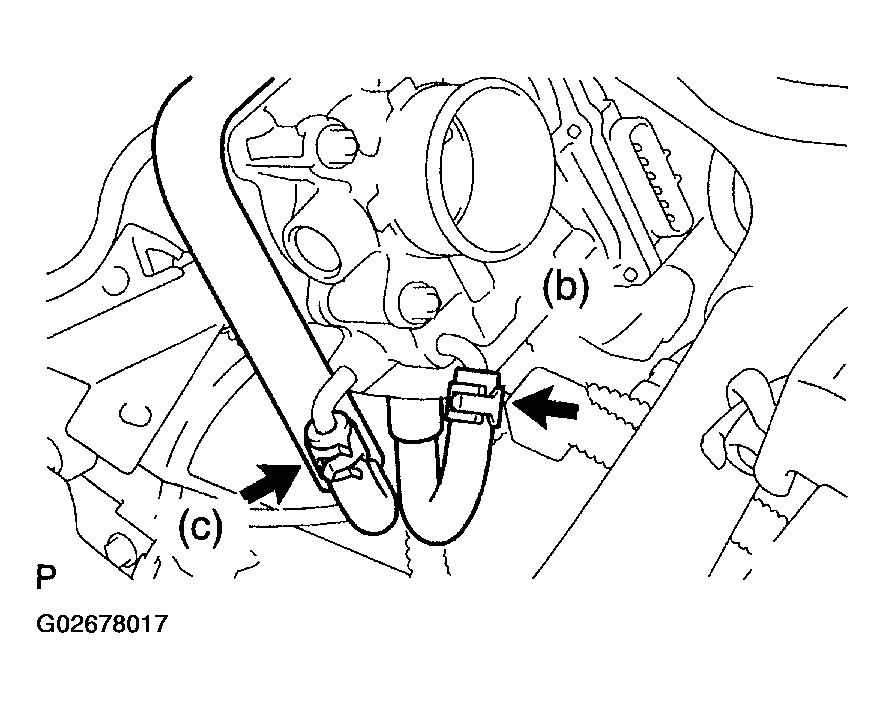

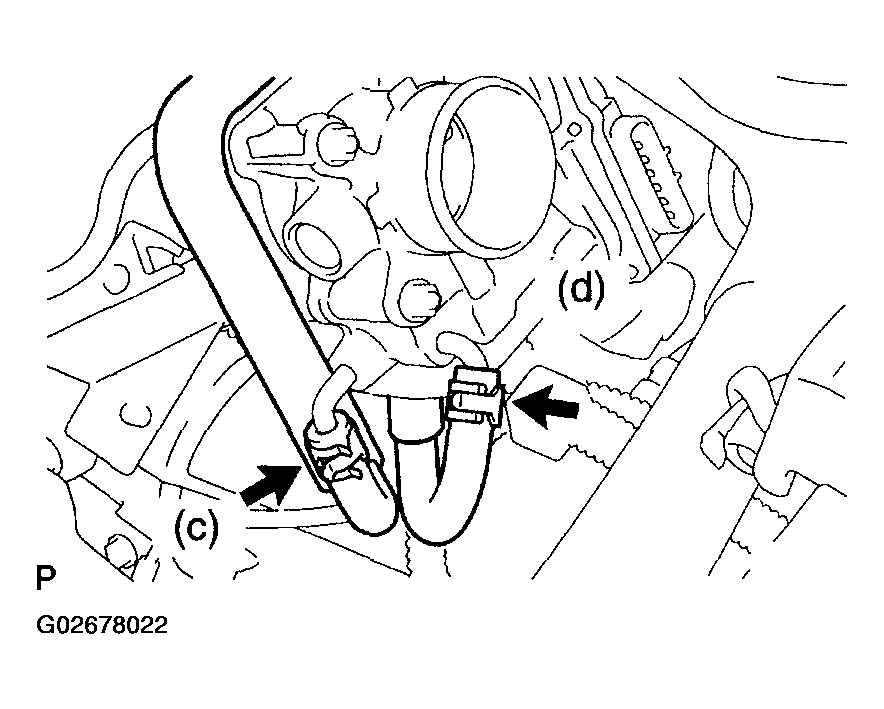

2. Disconnect the water bypass hose from the throttle body.
3. Disconnect the water bypass hose No. 2 from the throttle body.

  Fig 8: Removing Water Bypass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

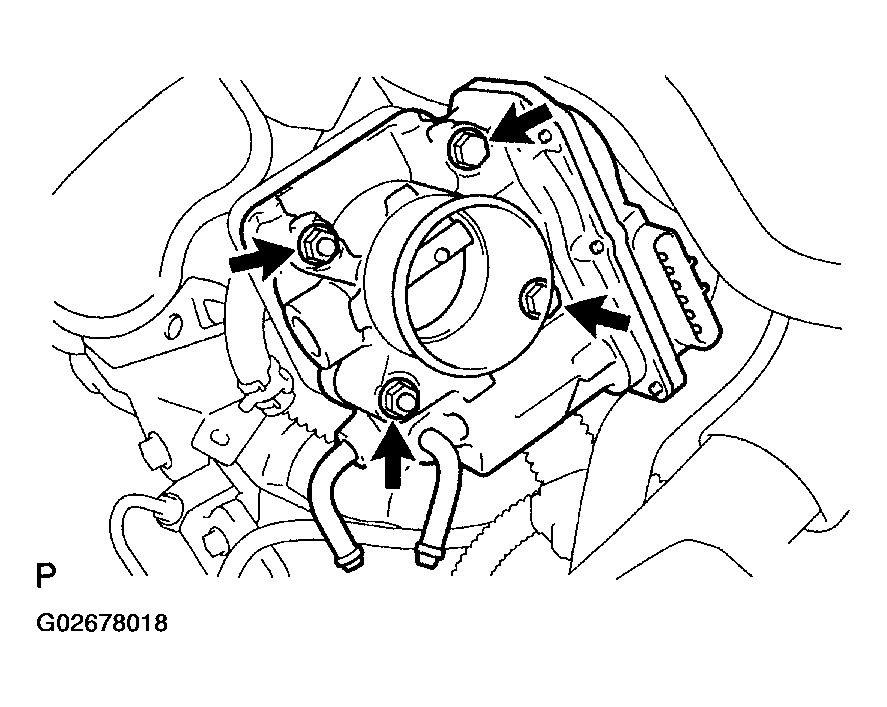

4. Remove the 2 bolts and 2 nuts, then remove the throttle body.

  Fig 9: Removing Bolts And Nuts, Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

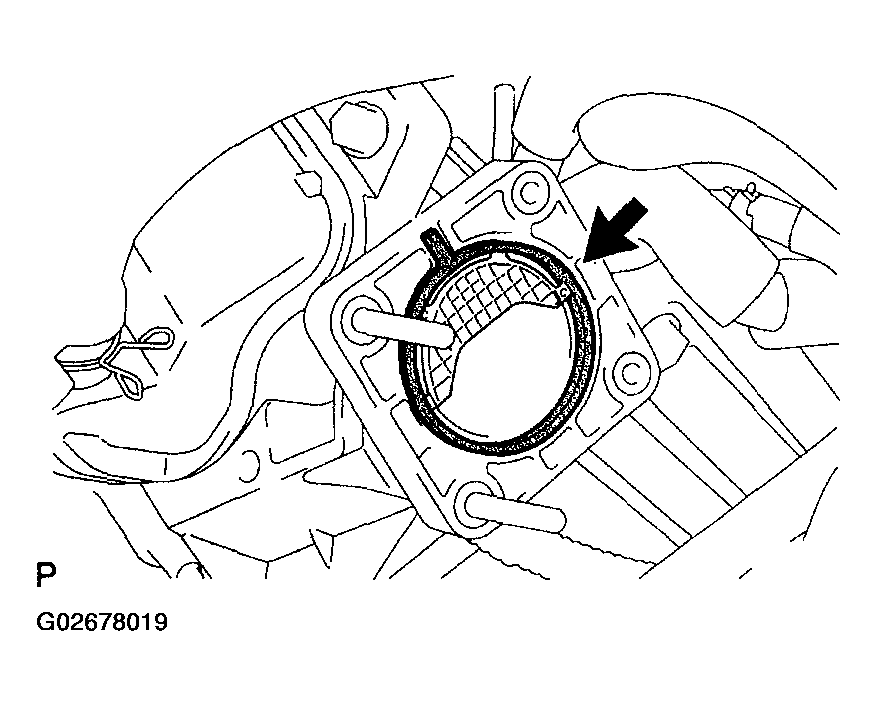

5. Remove the gasket from the intake manifold.

  Fig 10: Removing Gasket From Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE BODY ASSY

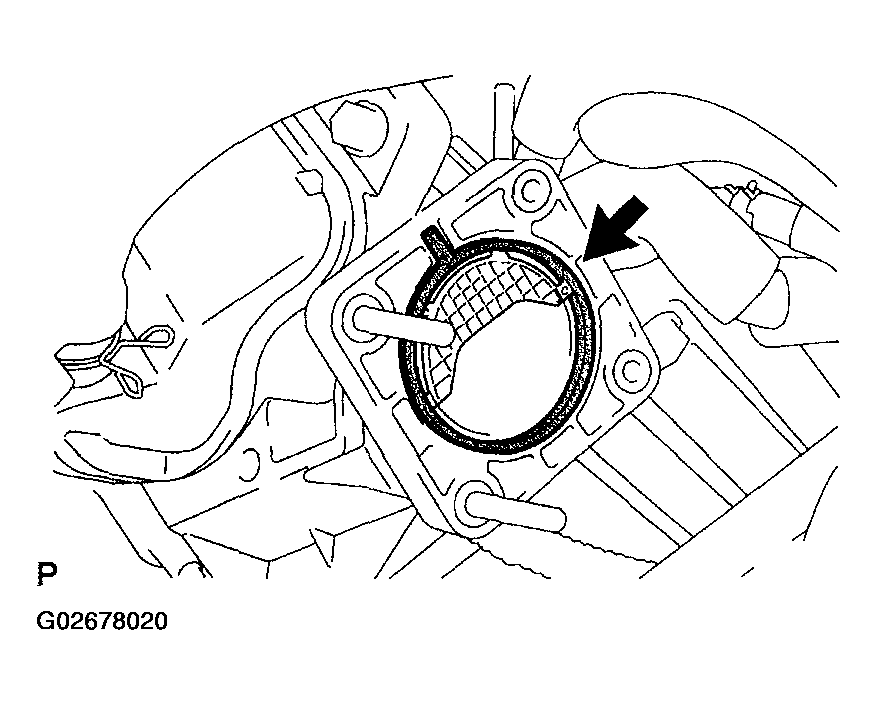

1. Install a new gasket onto the intake manifold.

  Fig 11: Installing Gasket Onto Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle body with the 2 bolts and 2 nuts.
  Torque: 9.0 N.m (90 kgf.cm, 80 in..lbf)

  Fig 12: Installing Throttle Body And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the water bypass hose No. 2 to the throttle body.
4. Connect the water bypass hose to the throttle body.

  Fig 13: Installing Water Bypass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the throttle control motor connector.

  Fig 14: Connecting Throttle Control Motor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSY
1. Install the air cleaner cap together with the air cleaner hose.

  Fig 15: Installing Air Cleaner Cap Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the hose clamp bolt, then connect the air cleaner hose.
  Torque: 2.0 N.m (20 kgf.cm, 18 in..lbf)

  Fig 16: Tightening Hose Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the ventilation hose No. 1 to the cylinder head cover.

  Fig 17: Installing Ventilation Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the fuel vapor feed hose No. 3 to the VSV.
5. Connect the fuel vapor feed hose No. 1 to the VSV.

  Fig 18: Connecting Fuel Vapor Feed Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the 2 wire harness clamps.
7. Connect the VSV connector.
8. Connect the mass air flow meter connector.

  Fig 19: Connecting VSV Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE TERMINAL Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
ADD ENGINE COOLANT (See ENGINE COOLANT (1ZZ-FE) )
CHECK FOR ENGINE COOLANT LEAKAGE (See COOLING SYSTEM (1ZZ-FE) )

Fig 20: Installing Cylinder Head Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

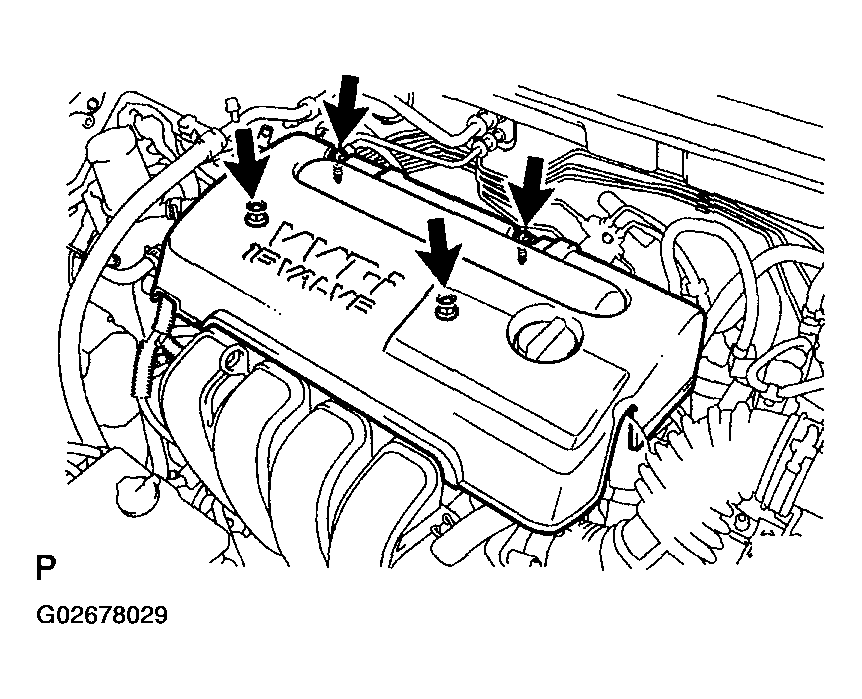

INSTALL CYLINDER HEAD COVER NO.2
1. Install the cylinder head cover No. 2 with the 2 nuts and 2 clips.
  Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)
