Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0010 CAMSHAFT POSITION "A" ACTUATOR CIRCUIT (BANK 1) .

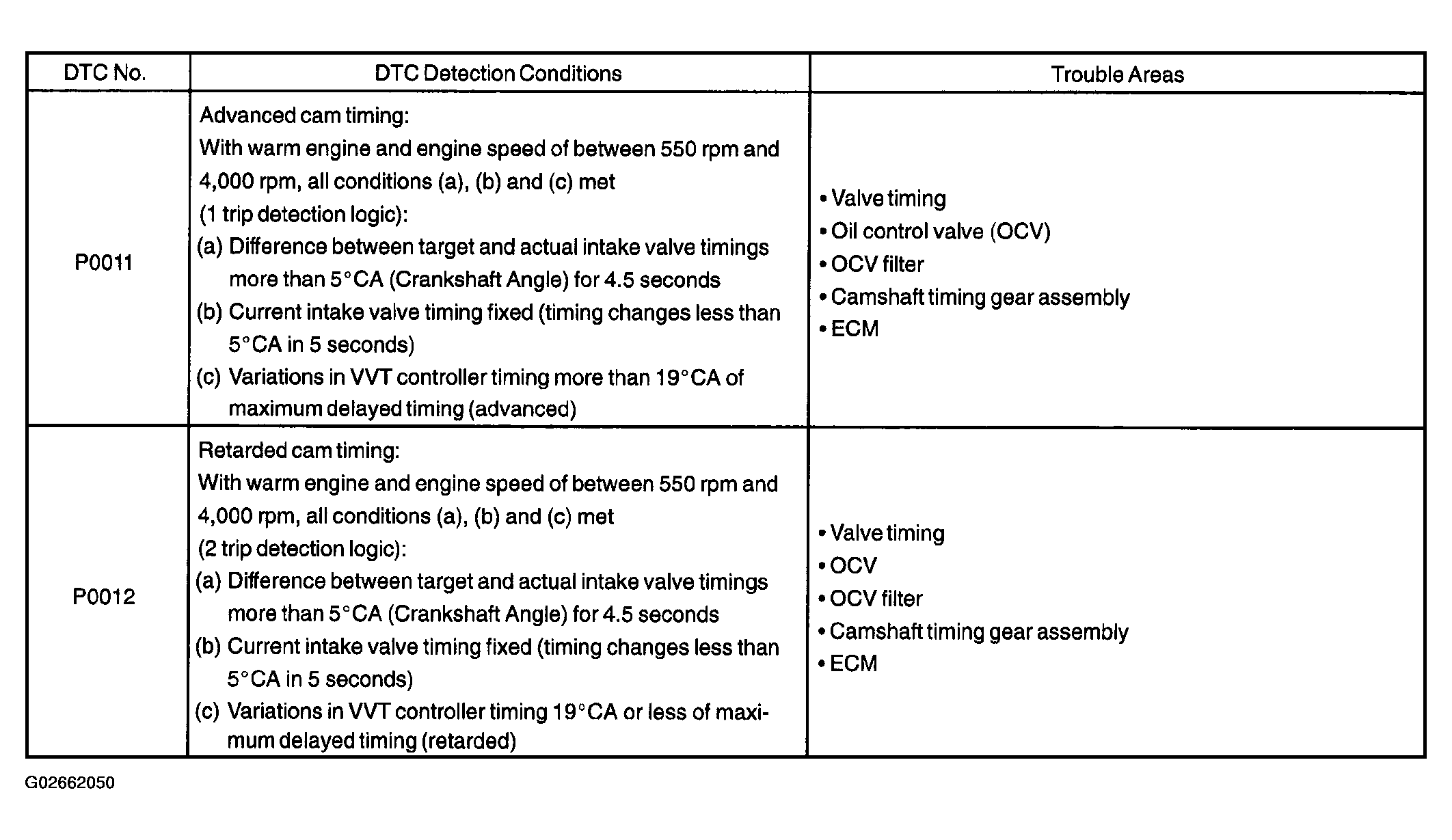

Fig 1: DTC P0011 And P0012 - Trouble Detection Chart
G02662050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
