Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

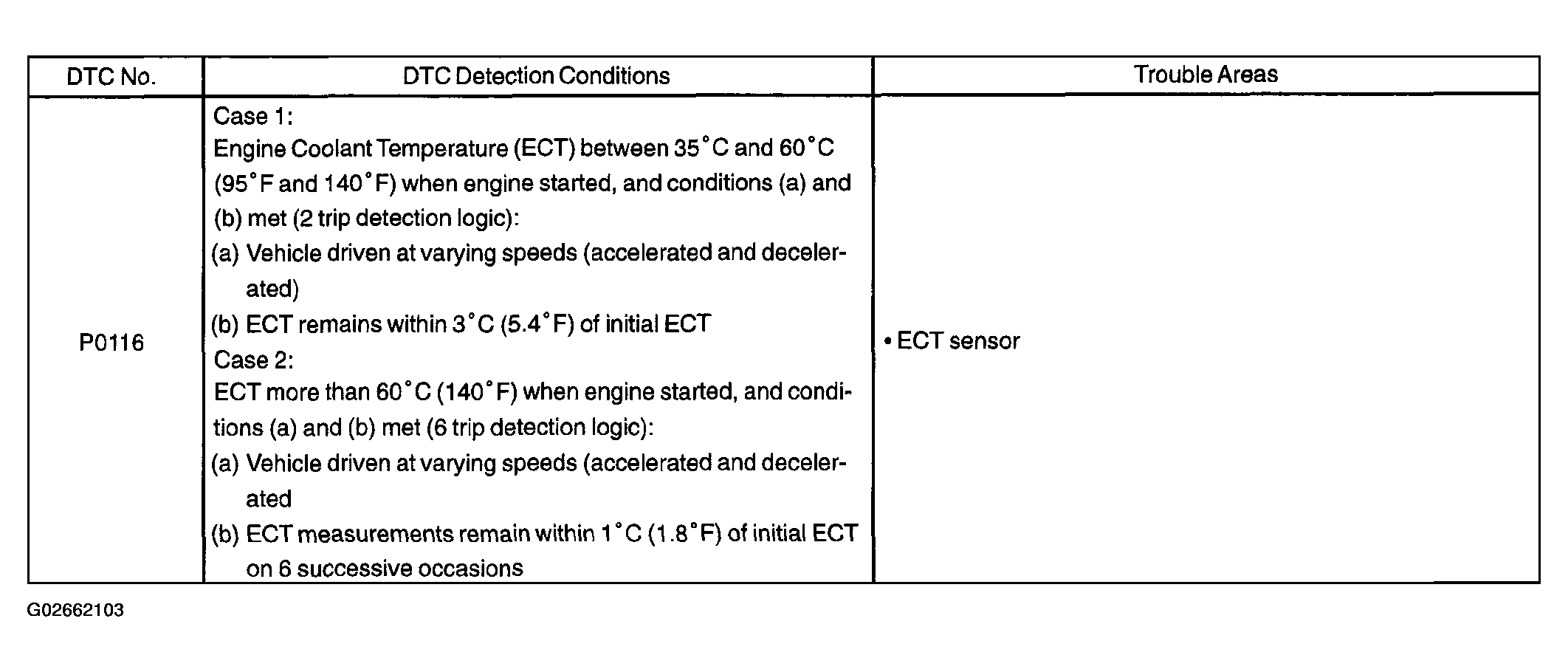

Fig 1: DTC P0116 - Trouble Detection Chart
G02662103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
