Section 2 (Engine Control System (SFI) (1ZZ-FE(4WD)) - Diagnostics)
>>
SFI System (1ZZ-FE (4WD))
>>
DTC P0130, P2195, P2196: Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 1) & Oxygen Sensor Signal Stuck Lean/Rich (Bank 1 Sensor 1)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0130, P2195, P2196: Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 1) & Oxygen Sensor Signal Stuck Lean/Rich (Bank 1 Sensor 1): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

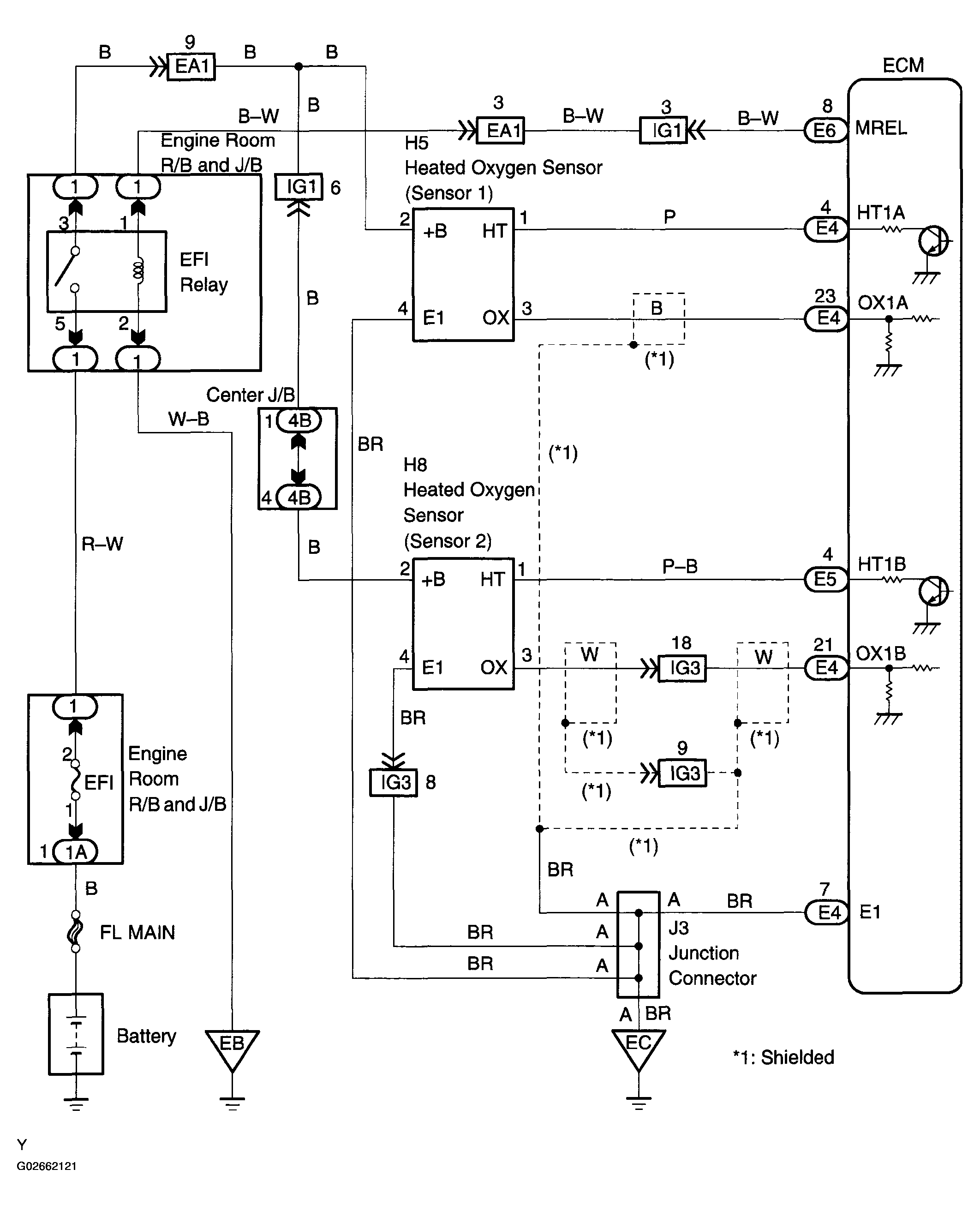

Fig 1: Oxygen Sensor Circuit Malfunction - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
