Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0130 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 1), DTC P2195 OXYGEN SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1) .

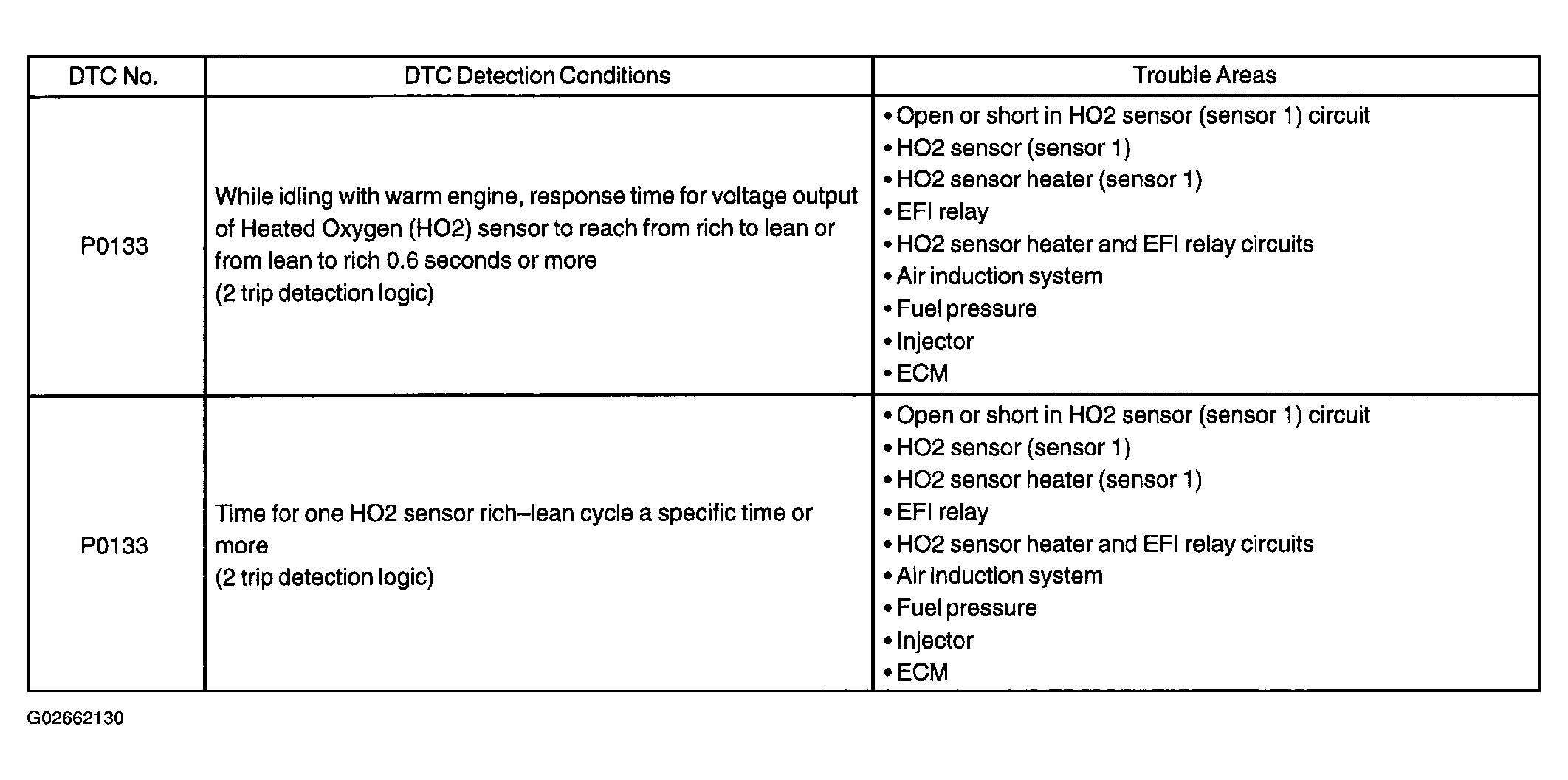

Fig 1: Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) - Trouble Detection Chart
G02662130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
