ECM Power Source Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

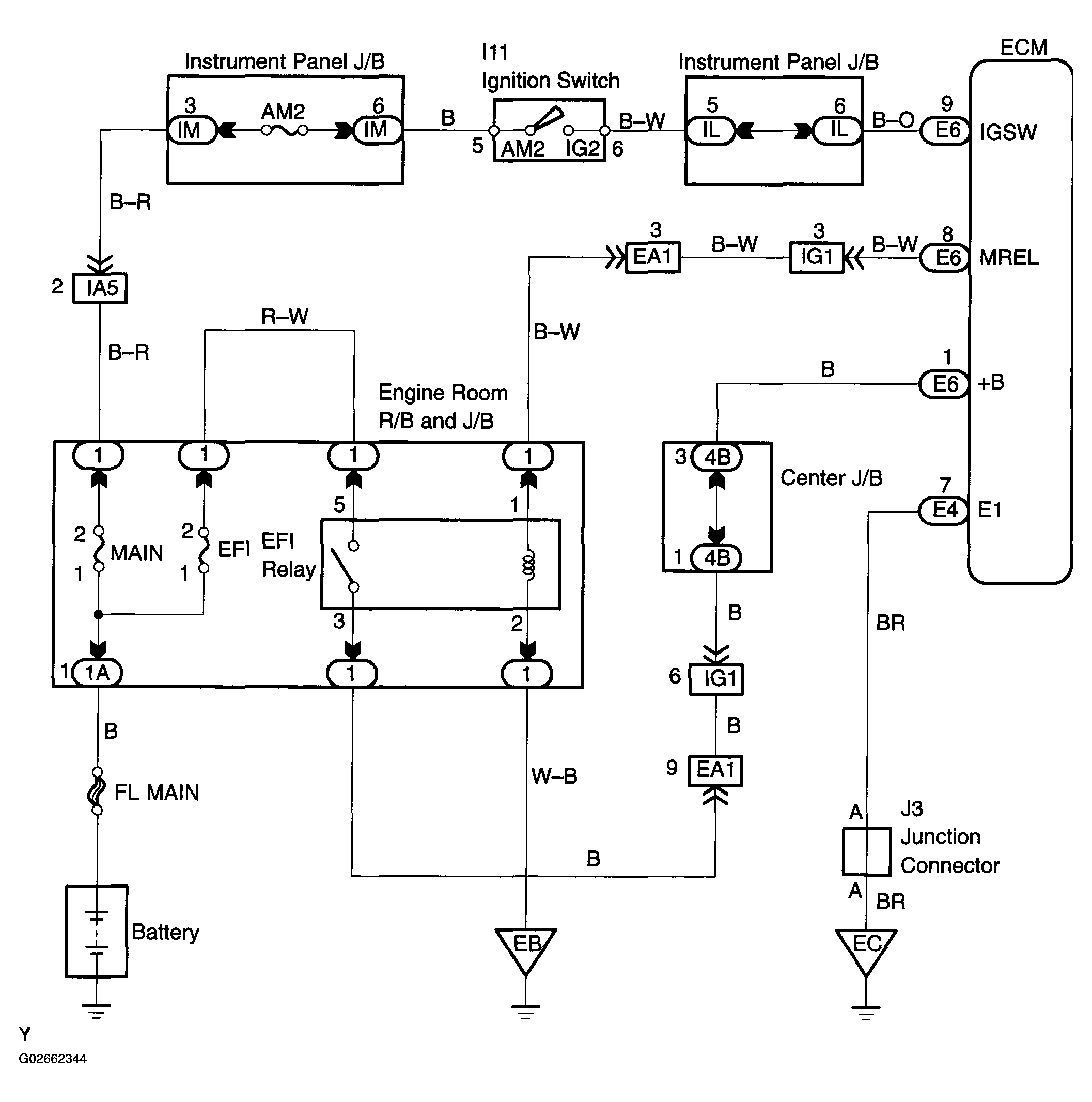

Fig 1: ECM Power Source Circuit - Wiring Diagram
G02662344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
