Waveform 1

WARNING: This page is about a different variant/trim than selected.

Airbag sensor assembly

AIRBAG SENSOR ASSEMBLY WAVEFORM REFERENCE

ECM Terminal Names Between F/PS and E1
Tester Ranges 5 V/DIV, 500 msec./DIV
Conditions Idling with warm engine

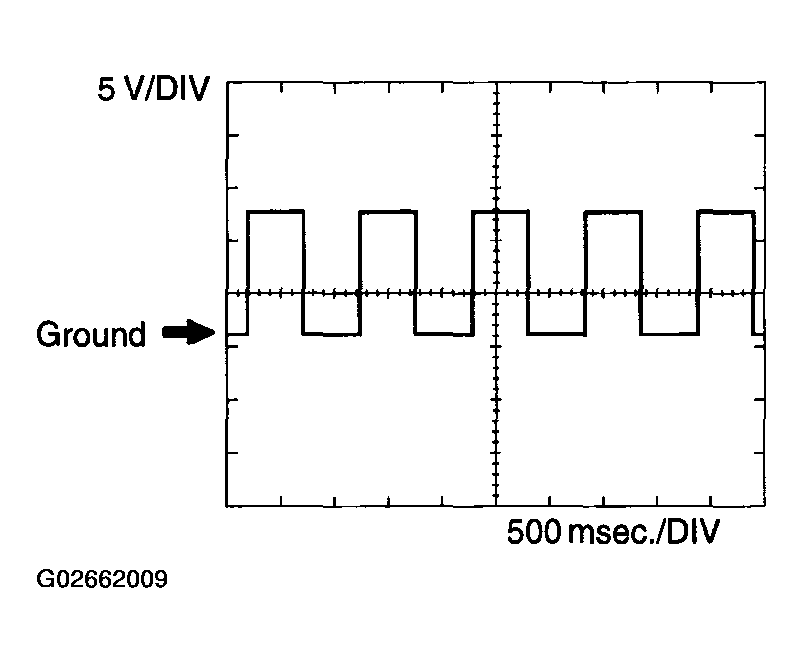

Fig 1: Identifying Airbag Sensor Assembly Waveform
G02662009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
