Camshaft timing oil control valve (OCV)

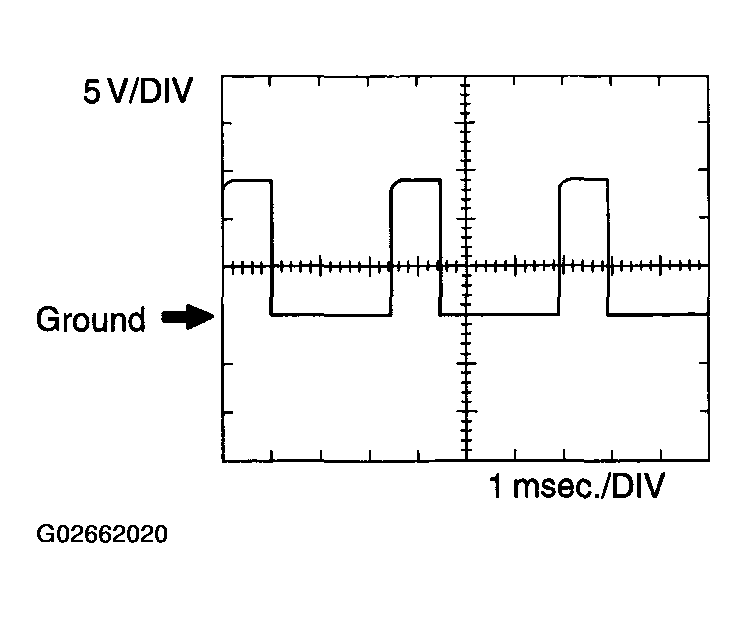

CAMSHAFT TIMING OIL CONTROL VALVE WAVEFORM REFERENCE (OCV)
| ECM Terminal Names |
Between OCV+ and OCV- |
| Tester Ranges |
5 V/DIV, 1 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
