Waveform 12
WARNING: This page is about a different variant/trim than selected.
Terminal SIL of DLC3

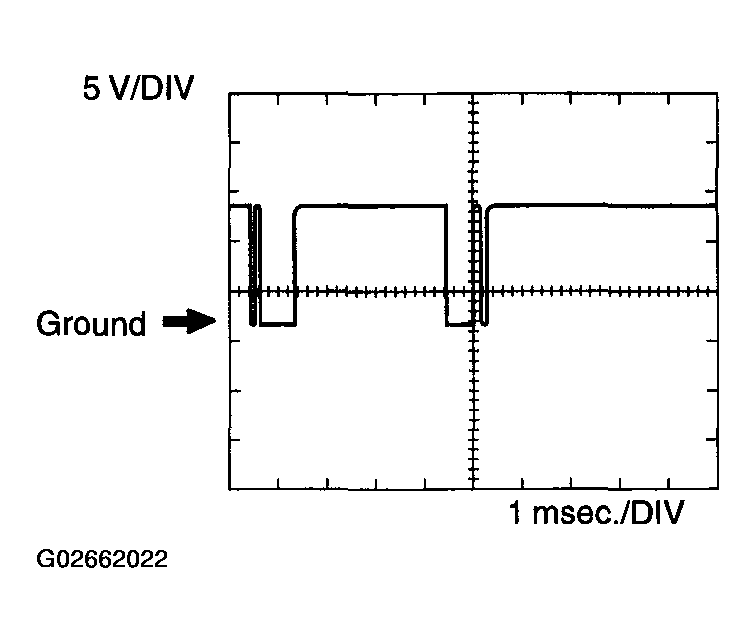

TERMINAL SIL OF DLC3 WAVEFORM REFERENCE
| ECM Terminal Names |
Between SIL and E1 |
| Tester Ranges |
5 V/DIV, 1 msec./DIV |
| Conditions |
Connect hand-held tester or OBD II scan tool to DLC3 |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
