Waveform 2
WARNING: This page is about a different variant/trim than selected.
Vehicle speed signal

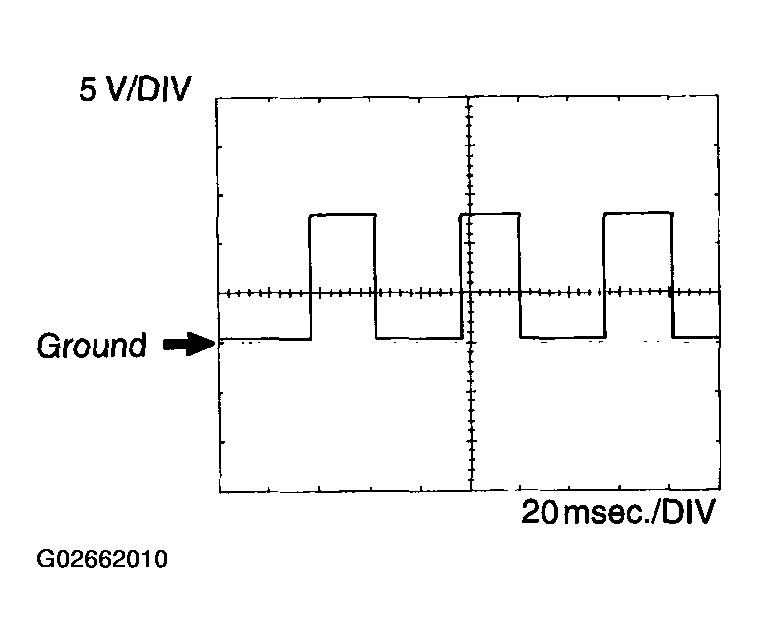

VEHICLE SPEED SIGNAL WAVEFORM REFERENCE
| ECM Terminal Names |
Between SPD and E1 |
| Tester Ranges |
5V/DIV, 20 msec./DIV |
| Conditions |
Driving at 12 mph (20 km/h) |
HINT:
The wavelength becomes shorter as the vehicle speed increases.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
