Audio & Visual System: Preparation

SST

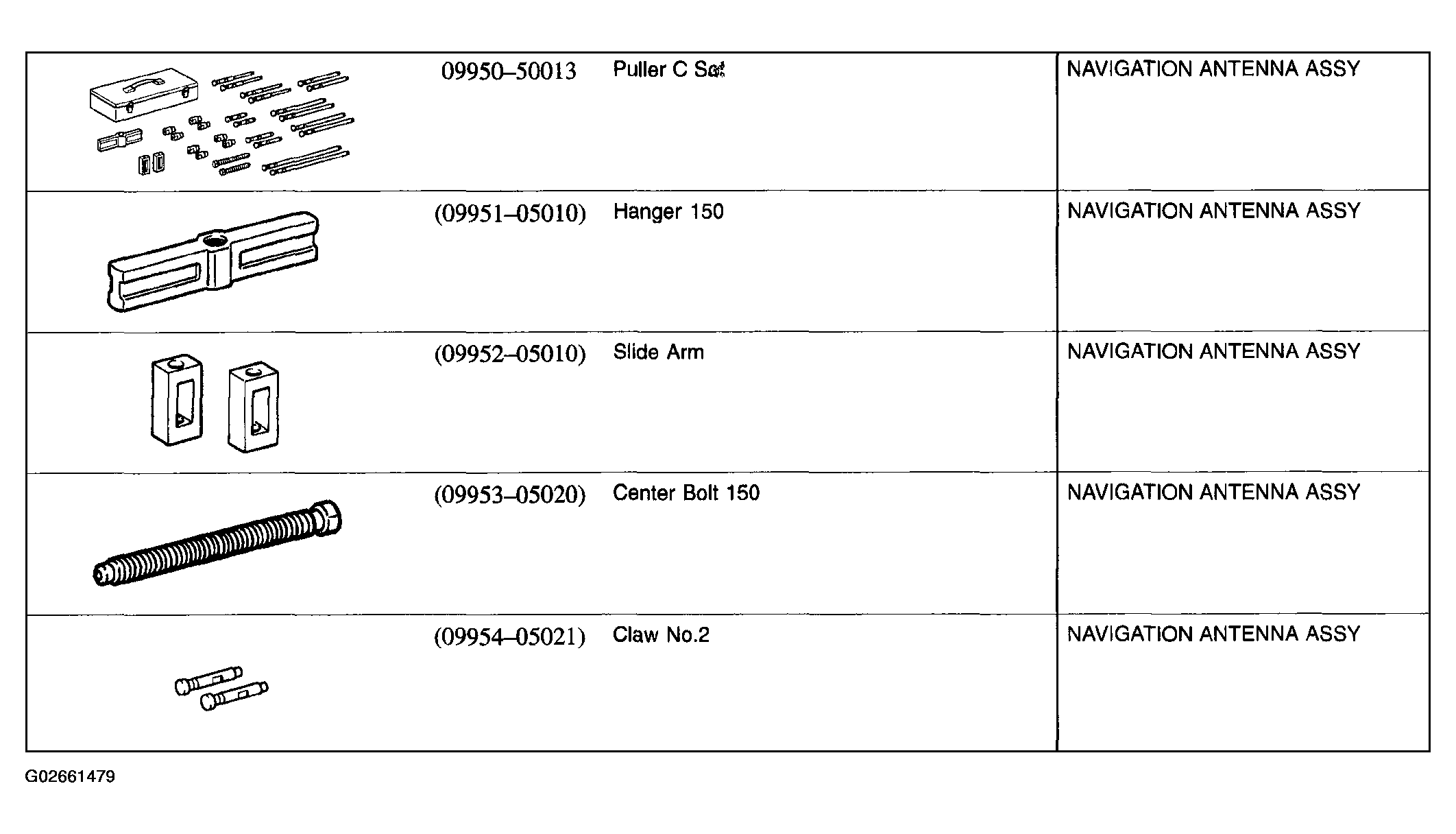

Fig 1: Special Service Tools Description Chart (Audio And Visual System)
G02661479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

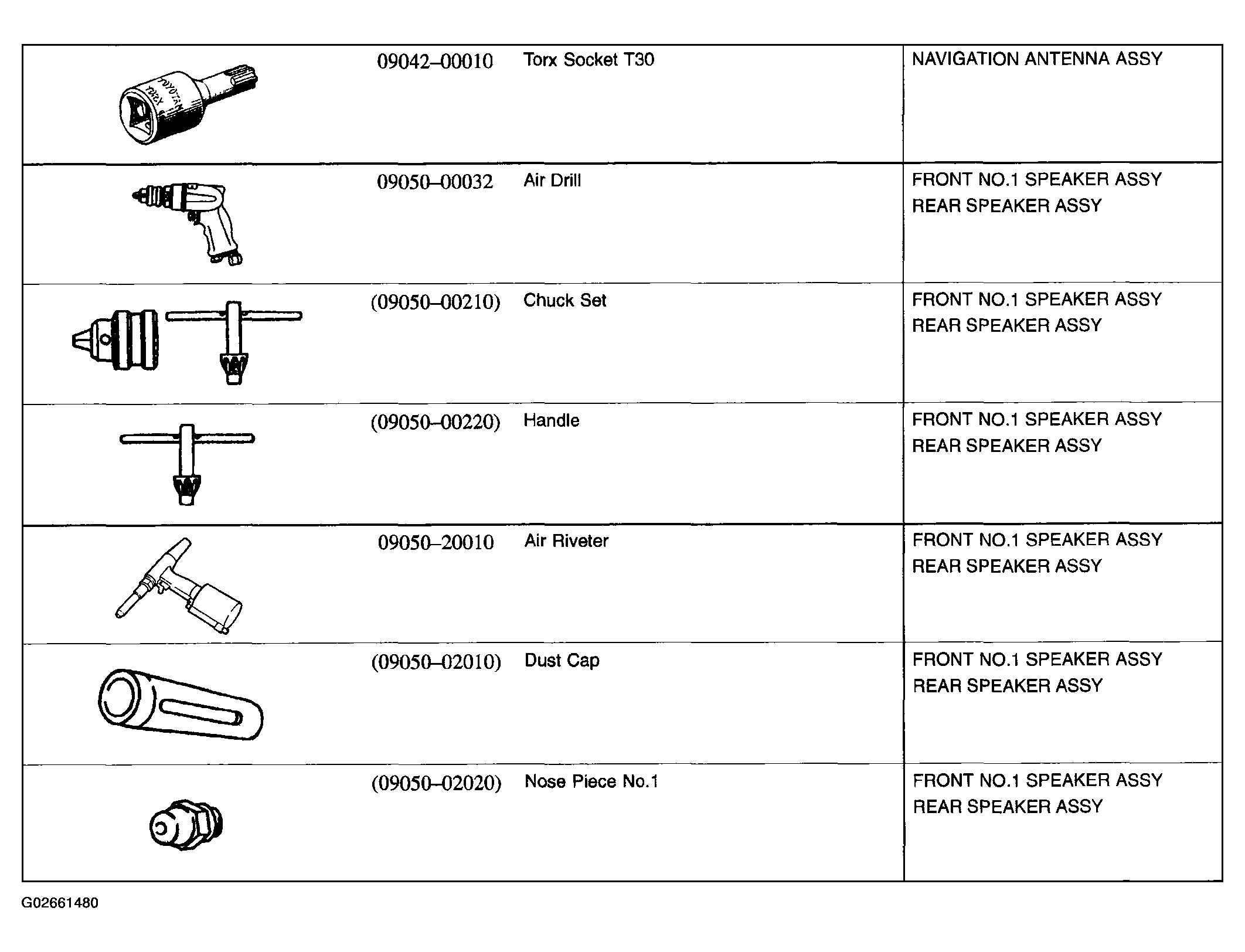

Fig 2: Recommended Tools Description Chart (Audio And Visual System) (1 Of 2)
G02661480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

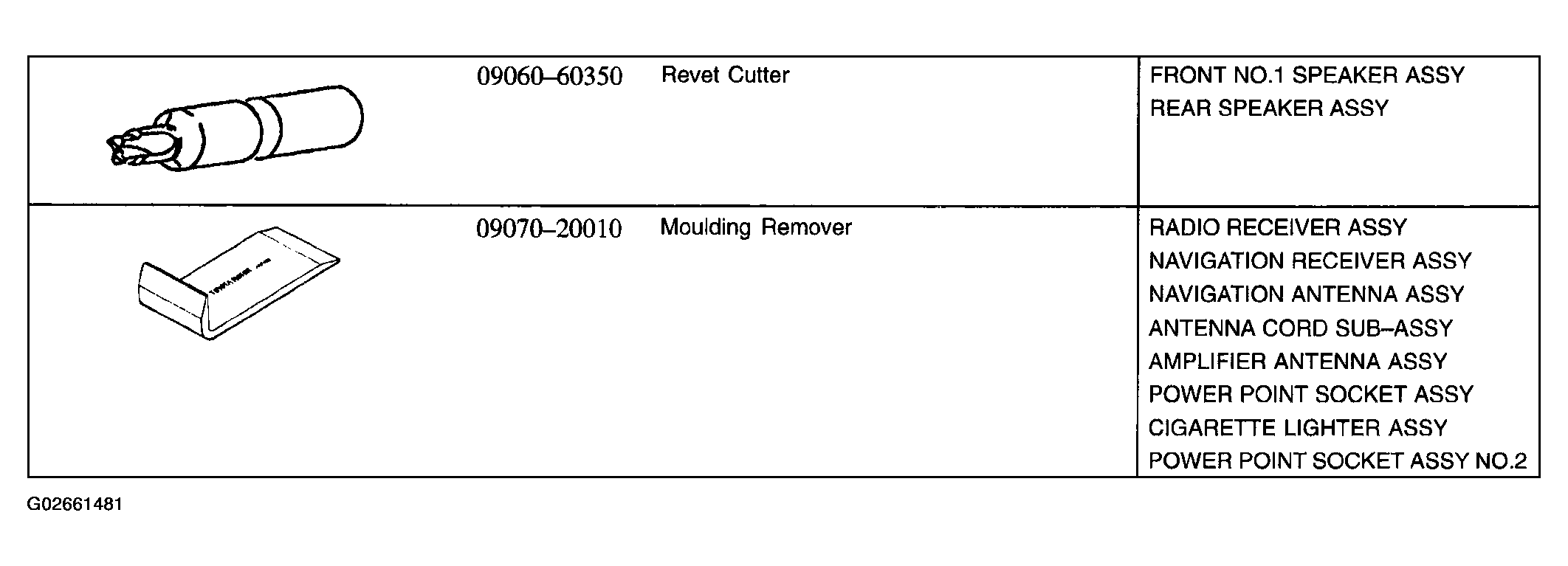

Fig 3: Recommended Tools Description Chart (Audio And Visual System) (2 Of 2)
G02661481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT DETAILS

Drill
Vacuum cleaner
Hand riveter
Tape
Torque wrench
