Steering Column ASSY: Overhaul
- PRECAUTION
- DISCONNECT BATTERY NEGATIVE TERMINAL
- INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE HORN BUTTON ASSY NOTE: If the airbag connector is disconnected with the ignition switch being at ON, DTCs will be recorded.

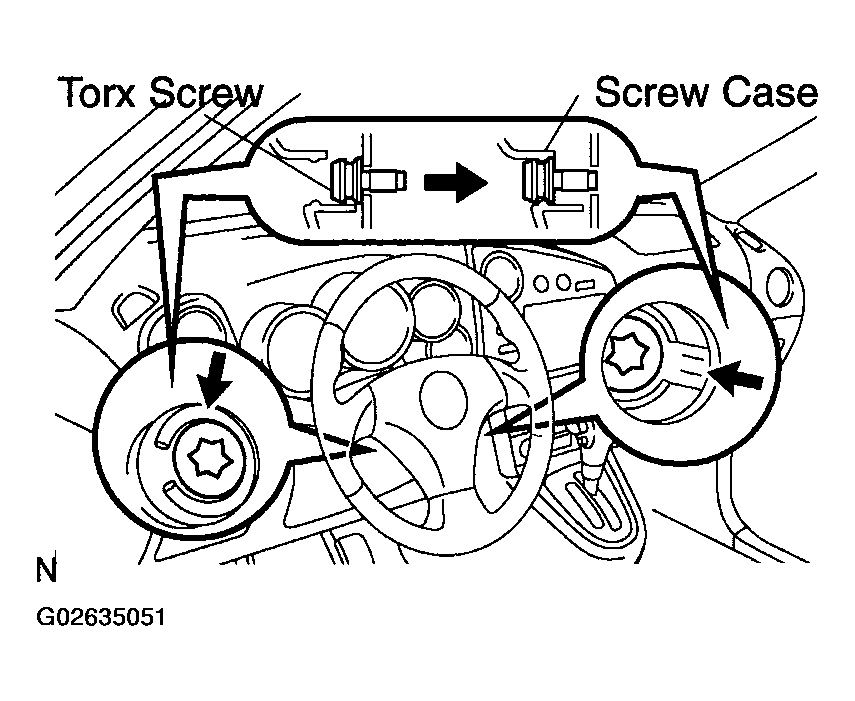

- Using a Torx socket wrench, loosen the 2 Torx screws until the groove along the screw circumference catches on the screw case.
- Pull out the horn button assy from the steering wheel.

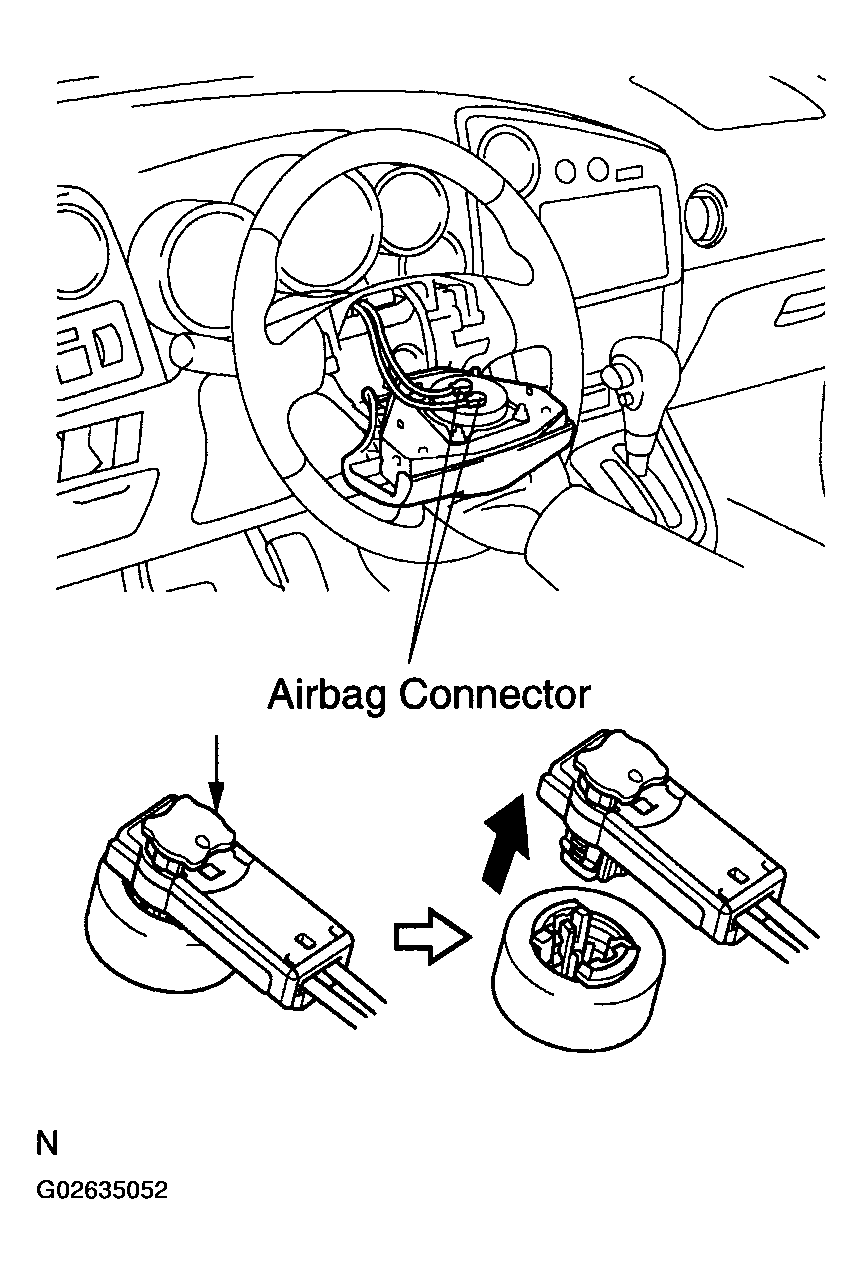

- Using a screwdriver, release the lock part of each airbag connector and disconnect the 2 airbag connectors.NOTE: When removing the horn button assy, take care not to pull the airbag wire harness.

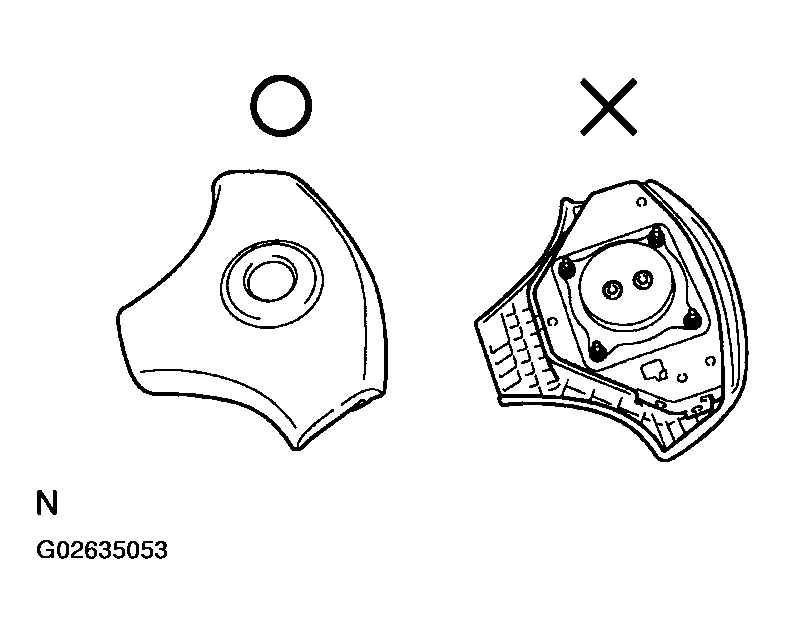

CAUTION:- When storing the horn button assy, keep the upper surface of the pad facing upward.
- Never disassemble the horn button assy.
- REMOVE STEERING WHEEL ASSY
- Disconnect the connector.
- Remove the steering wheel assy set nut.

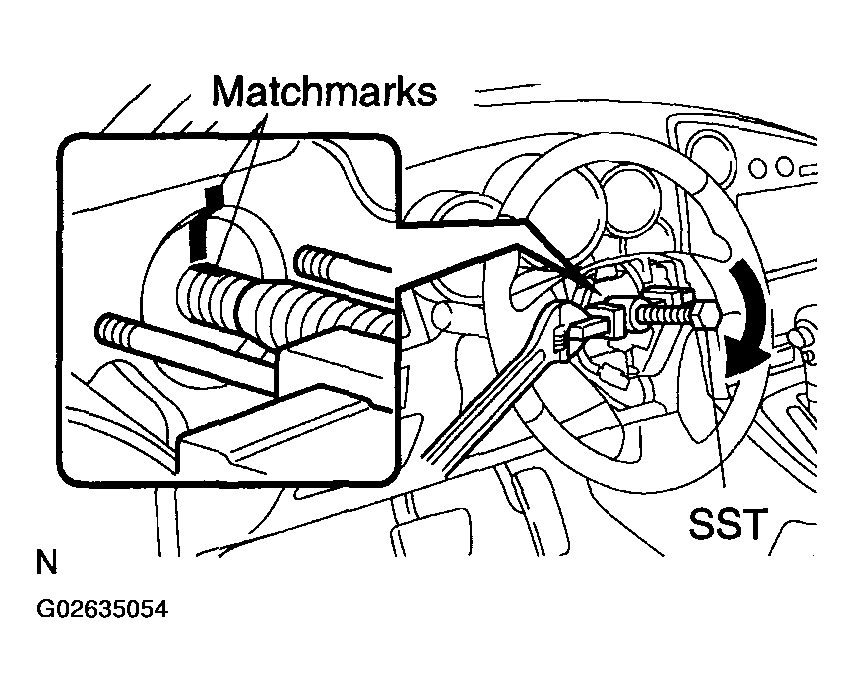

- Place matchmarks on the steering wheel assy and main shaft assy.
- Using SST, remove the steering wheel assy.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE STEERING COLUMN COVER
- Remove the 3 screws and steering column cover.
- DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY (A/T TRANSAXLE)

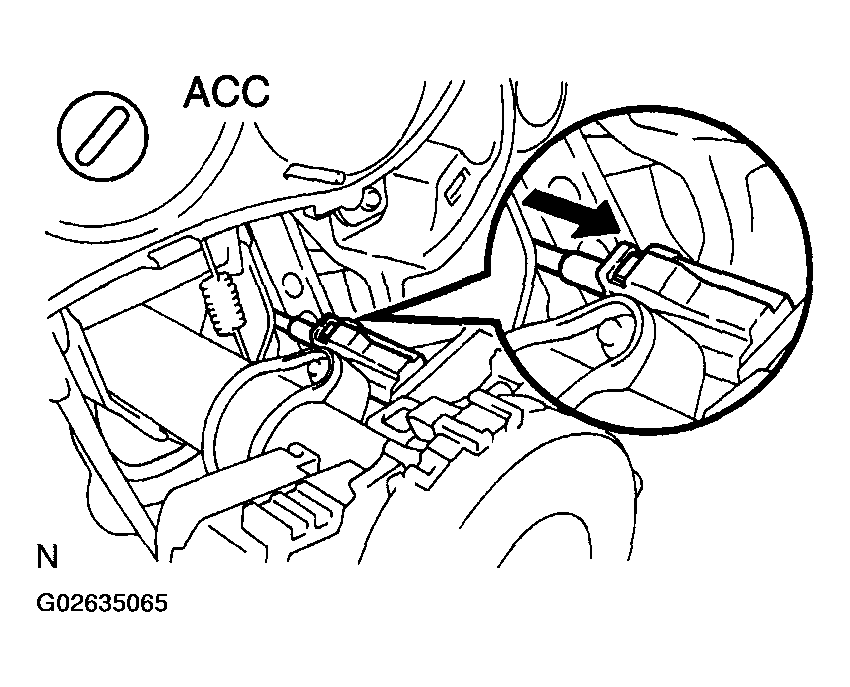

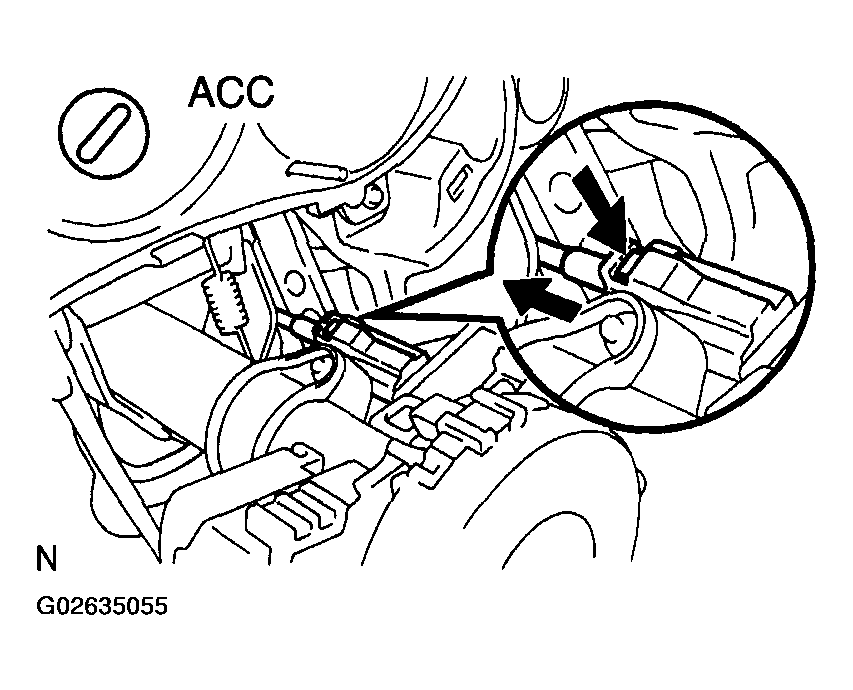

- With the key in ACC, push the claw and pull out the floor shift parking lock cable.
- REMOVE SPIRAL CABLE SUB-ASSY
- REMOVE HEADLAMP DIMMER SWITCH ASSY
- Disconnect the connector and remove the headlamp dimmer switch assy.
- REMOVE WINDSHIELD WIPER SWITCH ASSY
- Disconnect the connector and remove the windshield wiper switch assy.
- REMOVE COLUMN HOLE COVER SILENCER SHEET
- DISCONNECT STEERING INTERMEDIATE SHAFT

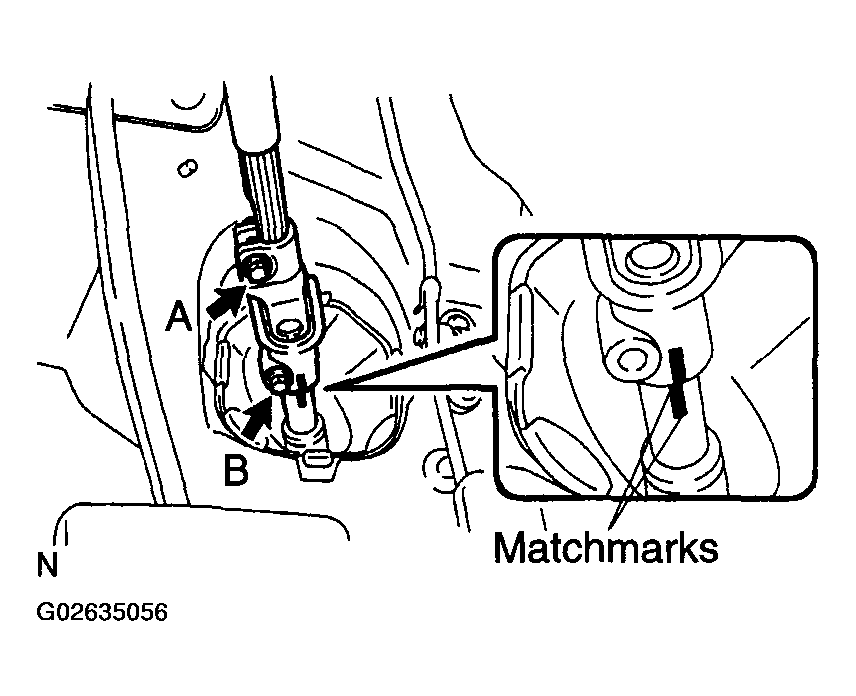

- Place matchmarks on the sliding yoke and steering intermediate shaft.
- Loosen the bolt A and remove the bolt B, then disconnect the steering intermediate shaft.
- REMOVE STEERING COLUMN ASSY
- Disconnect the connectors and wire harness clamps from the steering column assy.
- Remove the 3 bolts and steering column assy.
- REMOVE STEERING COLUMN UPPER W/SWITCH BRACKET ASSY

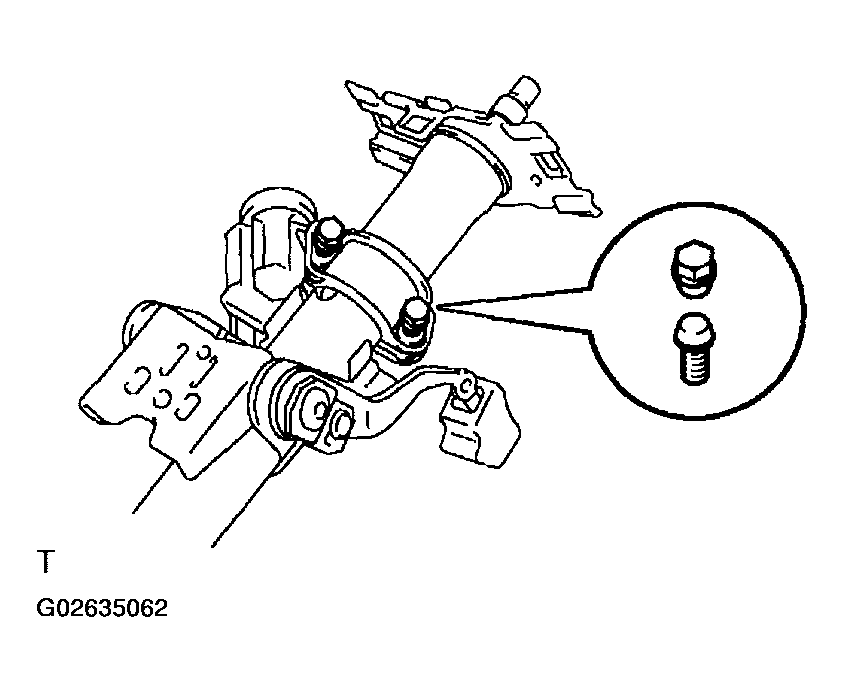

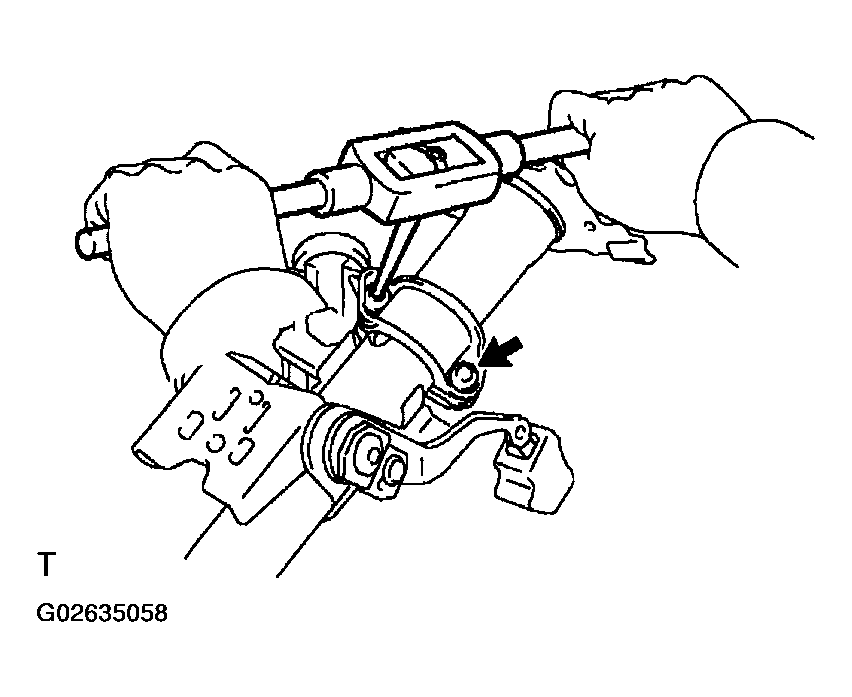

- Using a centering punch, mark the center of the 2 tapered-head bolts.
- Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 bolts.
- Using a screw extractor, remove the 2 bolts and steering column upper w/switch bracket assy.
- REMOVE STEERING COLUMN CLAMP UPPER
- REMOVE IGNITION SWITCH LOCK CYLINDER ASSY
- Place the ignition switch lock cylinder assy at the ACC position.

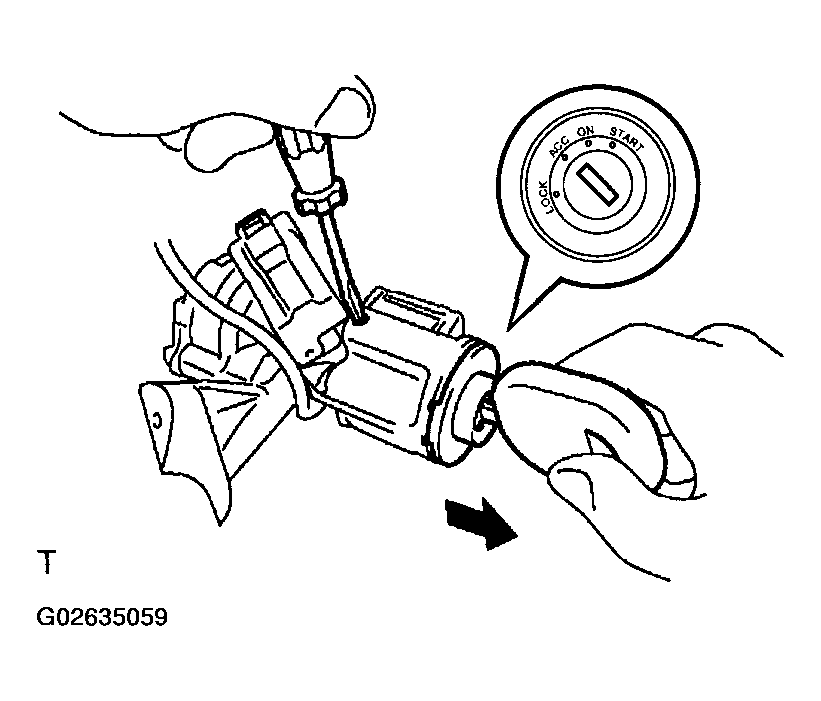

- Push down the stop pin with a screwdriver, and pull out the cylinder assy.
- REMOVE UNLOCK WARNING SWITCH ASSY
- Disconnect the unlock warning switch assy connector from the ignition or starter switch assy.
- Remove the unlock warning switch assy.

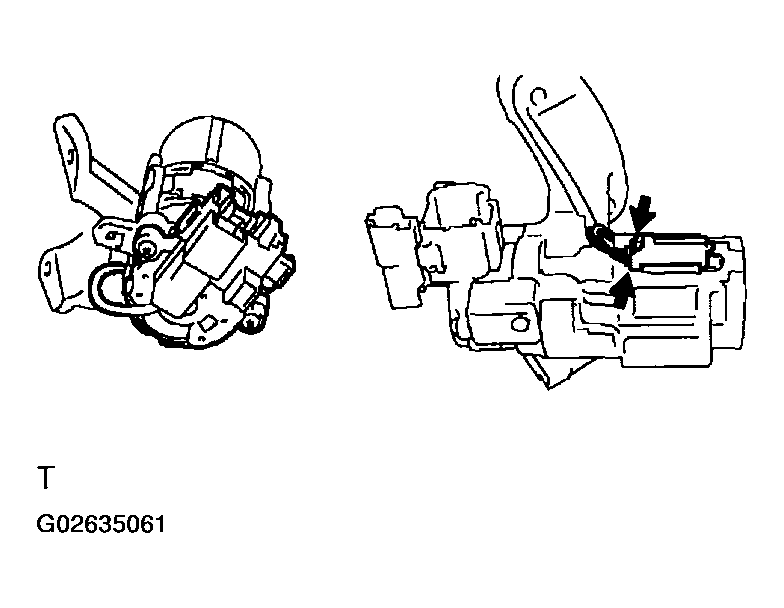

- REMOVE IGNITION OR STARTER SWITCH ASSY
- Remove the 2 screws and ignition or starter switch assy from the steering column bracket assy.
- INSTALL IGNITION OR STARTER SWITCH ASSY

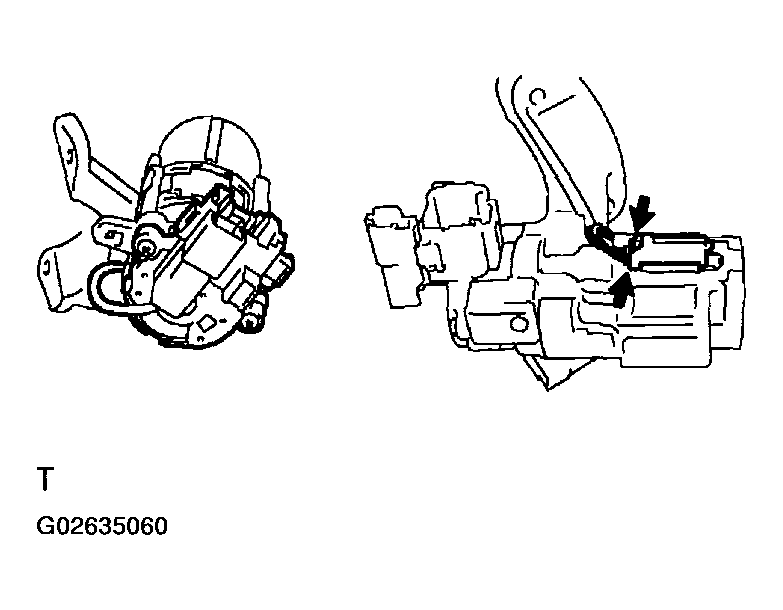

- Install the ignition or starter switch assy to the steering column bracket assy with the 2 screws.
- INSTALL UNLOCK WARNING SWITCH ASSY
- Install the unlock warning switch assy.
- Connect the unlock warning switch assy connector to the ignition or starter switch assy.
- INSTALL IGNITION SWITCH LOCK CYLINDER ASSY
- Make sure that the ignition switch lock cylinder assy is at the ACC position.
- Install the ignition switch lock cylinder assy.
- INSPECT STEERING LOCK OPERATION
- Check that the steering lock mechanism is activated when removing the key.
- Check that the steering lock mechanism is deactivated when inserting the key and turning it to ACC position.
- INSTALL STEERING COLUMN UPPER W/SWITCH BRACKET ASSY

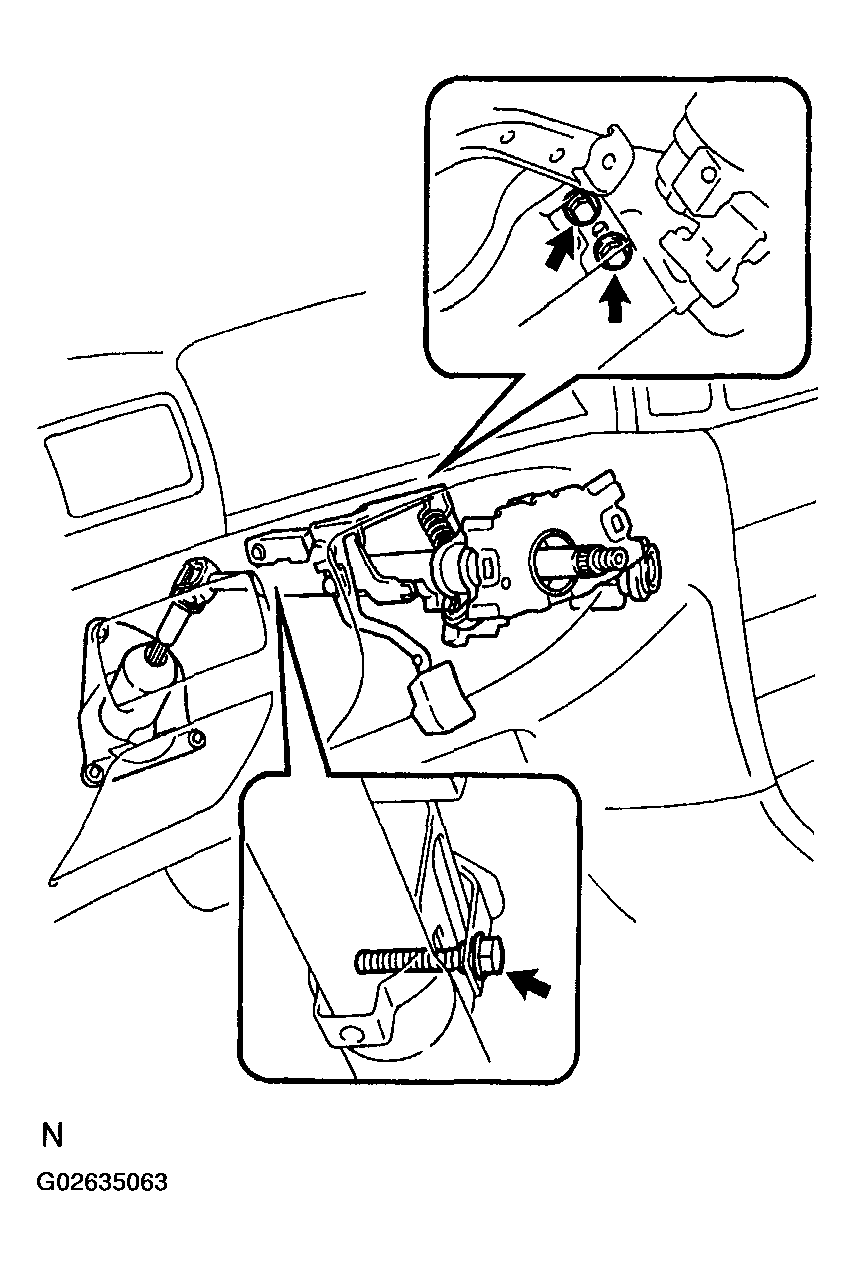

- Temporarily install the steering column upper w/switch bracket assy and steering column upper clamp with 2 new tapered-head bolts.
- Tighten the 2 tapered-head bolts until the bolt heads break off.
- INSTALL STEERING COLUMN ASSY

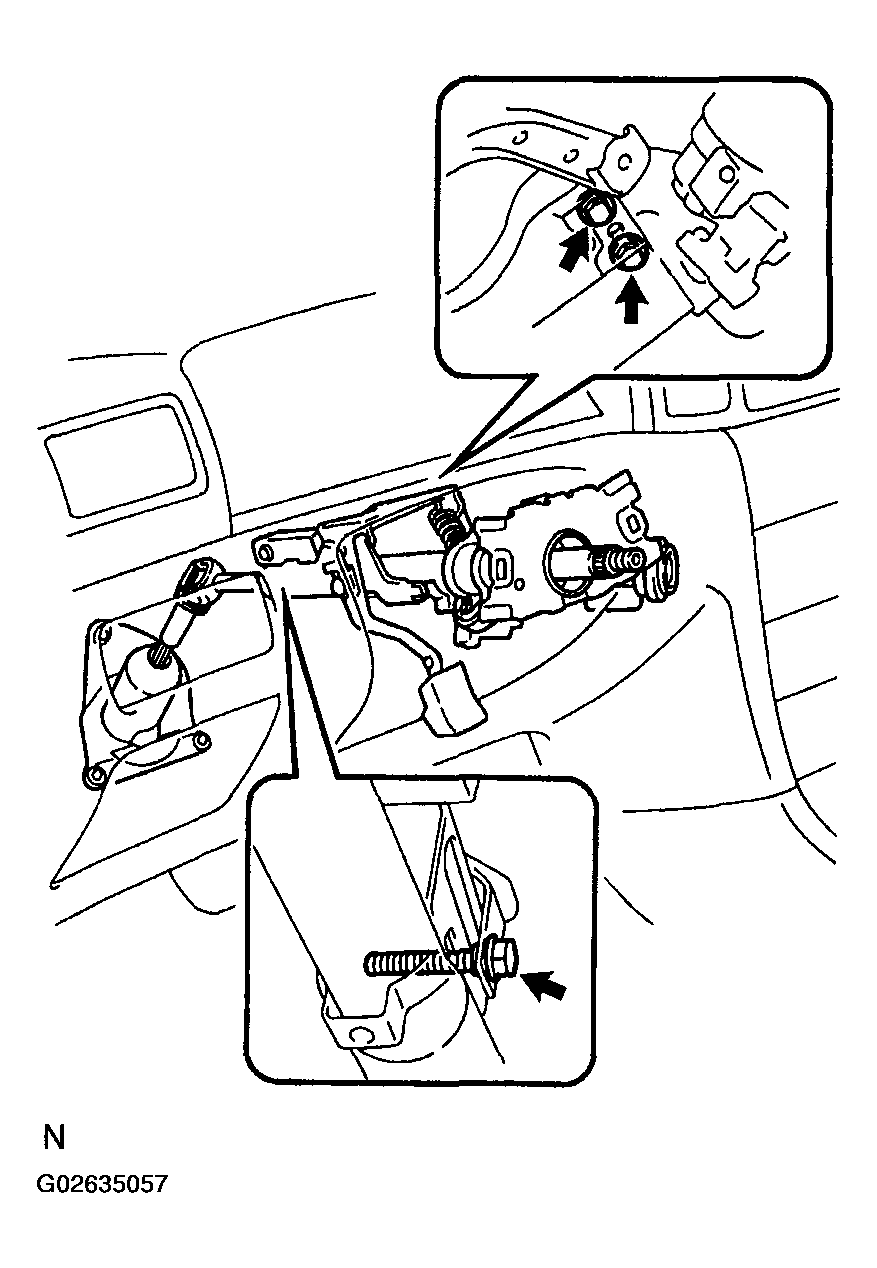

- Install the steering column assy with the 3 bolts.
Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
- Connect the connectors and wire harness clamps.
- Install the steering column assy with the 3 bolts.
- CONNECT STEERING INTERMEDIATE SHAFT

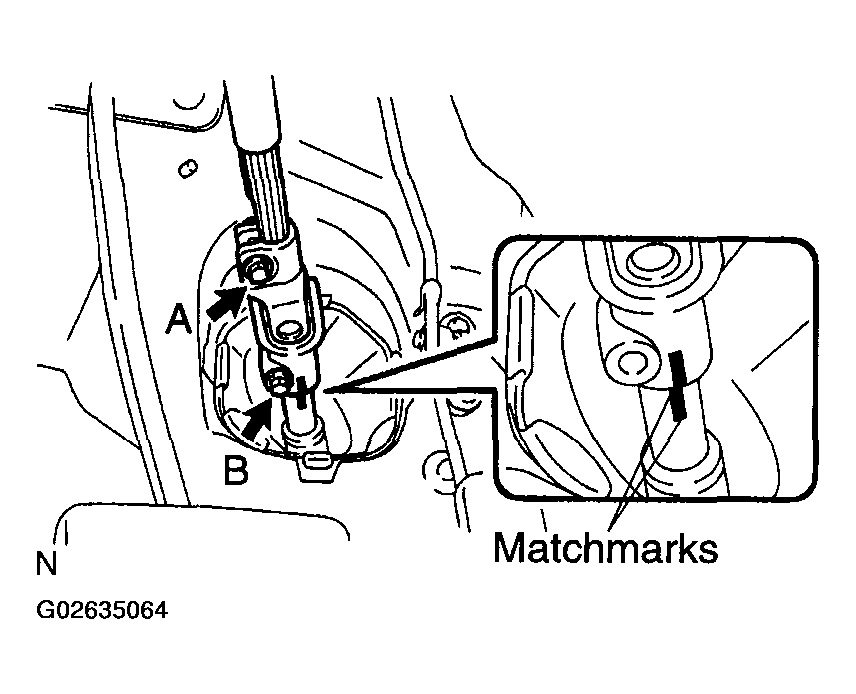

- Align the matchmarks on the sliding yoke and steering intermediate shaft.
- Install the bolt B and torque the bolt A.
Torque: 35 N.m (360 kgf.cm, 26 ft.lbf)
- INSTALL COLUMN HOLE COVER SILENCER SHEET
- INSTALL WINDSHIELD WIPER SWITCH ASSY
- Install the windshield wiper switch assy and connect the connector.
- INSTALL HEADLAMP DIMMER SWITCH ASSY
- Install the headlamp dimmer switch assy and connect the connector.
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL SPIRAL CABLE SUB-ASSY
- CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY (A/T TRANSAXLE)
- With the key in ACC, push into the floor shift parking lock cable and install it.
- CONNECT CHECK KEY INTERLOCK OPERATION
- INSTALL STEERING COLUMN COVER
- Install the steering column cover with the 3 screws.
- CENTER SPIRAL CABLE
- Check that the ignition switch is at OFF.
- Check that the battery negative terminal is disconnected.NOTE: Do not start the operation for 90 seconds after removing the terminal.

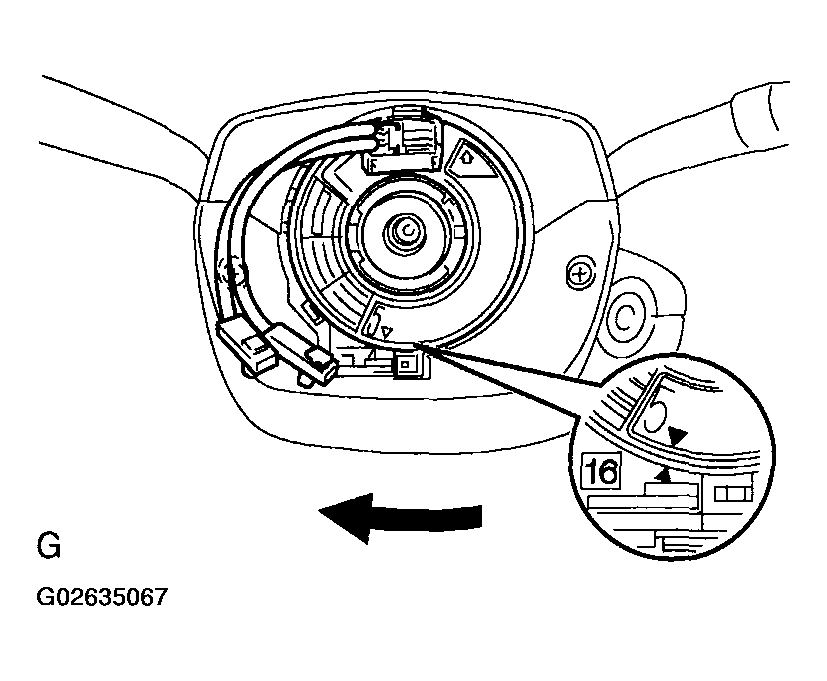

- Turn the cable counterclockwise by hand until it becomes harder to turn.
- Then rotate the cable clockwise about 2.5 turns to align the marks.
HINT:
The cable will rotate about 2.5 turns to either right or left of the center.
- INSTALL STEERING WHEEL ASSY
- Align the matchmark with the one on the steering wheel assy and steering main shaft assy.
- Install the steering wheel assy with the set nut.
Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)
- Connect the connector.
- INSPECT HORN BUTTON ASSY (See ON-VEHICLE INSPECTION )
- INSTALL HORN BUTTON ASSY NOTE:
- Never use the airbag parts removed from another vehicle. When replacing parts, replace with new ones.
- Make sure that the horn button assy is installed to the specified torque.
- If the horn button assy has been dropped, or there are cracks, dents or other defects in the case or connector, replace the horn button assy with a new one.
- When installing the horn button assy, take care so that the wirings do not interfere with other parts and that they are not pinched between other parts.
- Connect the 2 airbag connectors.

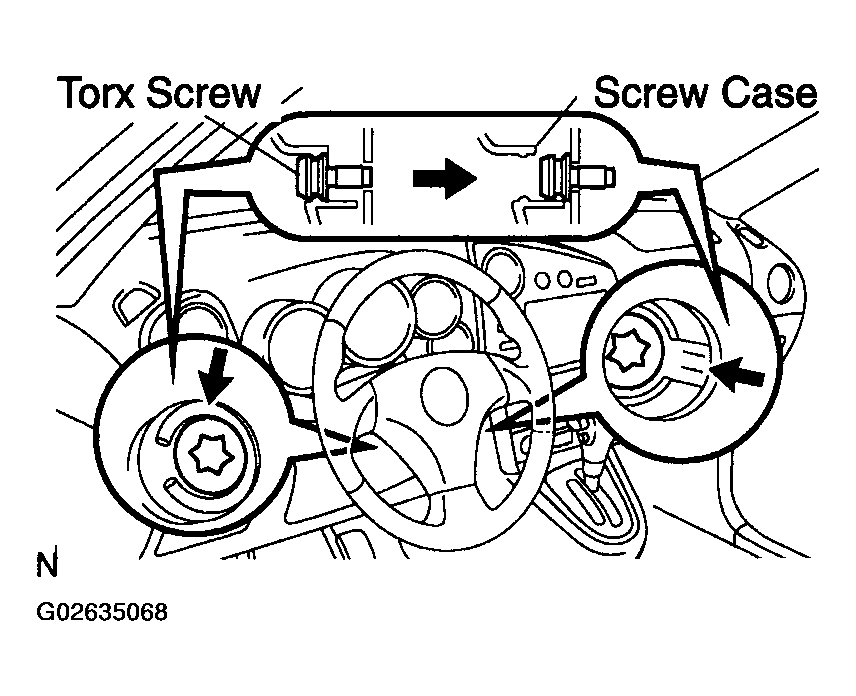

- Install the horn button assy after confirming that the circumference groove of the Torx screws is caught on the screw case.
- Using a Torx socket wrench, torque the 2 Torx screws.
Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)
- STEERING WHEEL CENTER POINT
- INSPECT SRS WARNING LIGHT (See DIAGNOSIS SYSTEM )
