Transfer ASSY (4WD): Components

WARNING: This page is about a different variant/trim than selected.

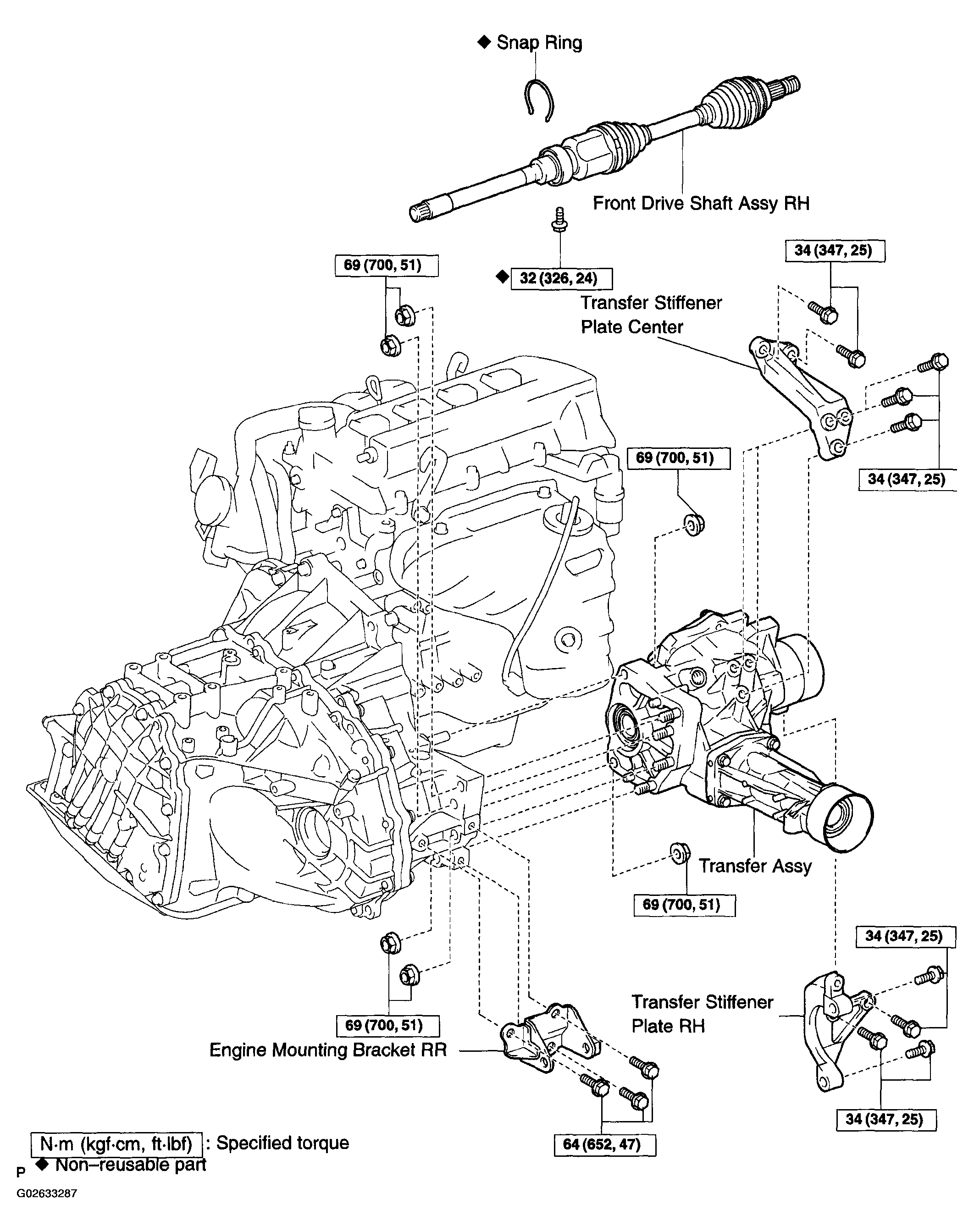

Fig 1: Transfer Assy Replacement Components - 4WD With Torque Specifications (1 Of 2)
G02633287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

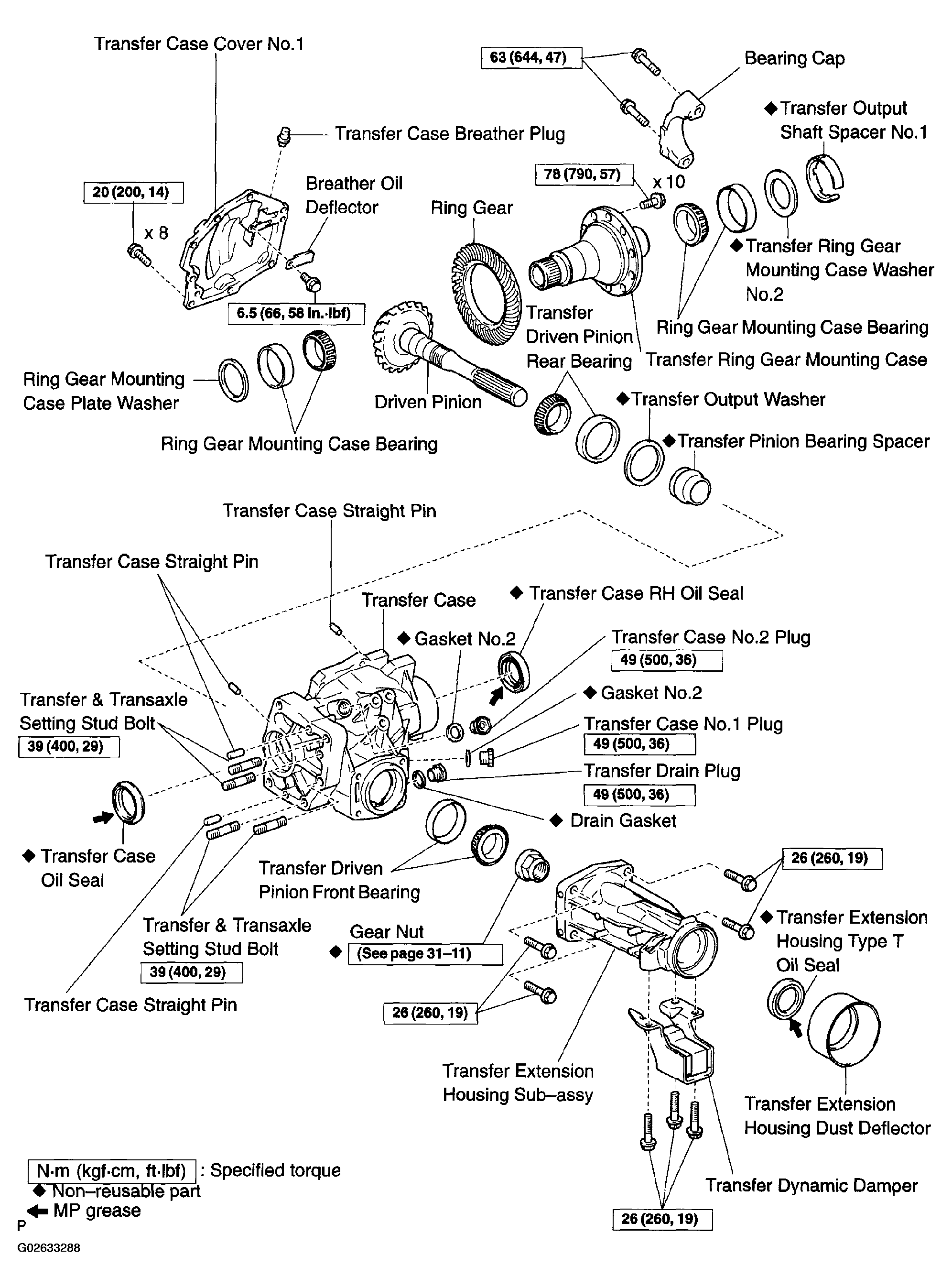

Fig 2: Transfer Assy Replacement Components - 4WD With Torque Specifications (2 Of 2)
G02633288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
