Cruise Control Main Switch ASSY: Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL (SEE SUPPLEMENTAL RESTRAINT SYSTEM )
INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE HORN BUTTON ASSY (SEE REPLACEMENT )
REMOVE STEERING WHEEL ASSY (SEE OVERHAUL )
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE CRUISE CONTROL MAIN SWITCH ASSY
1. Remove the 2 screws and cruise control main switch assy.

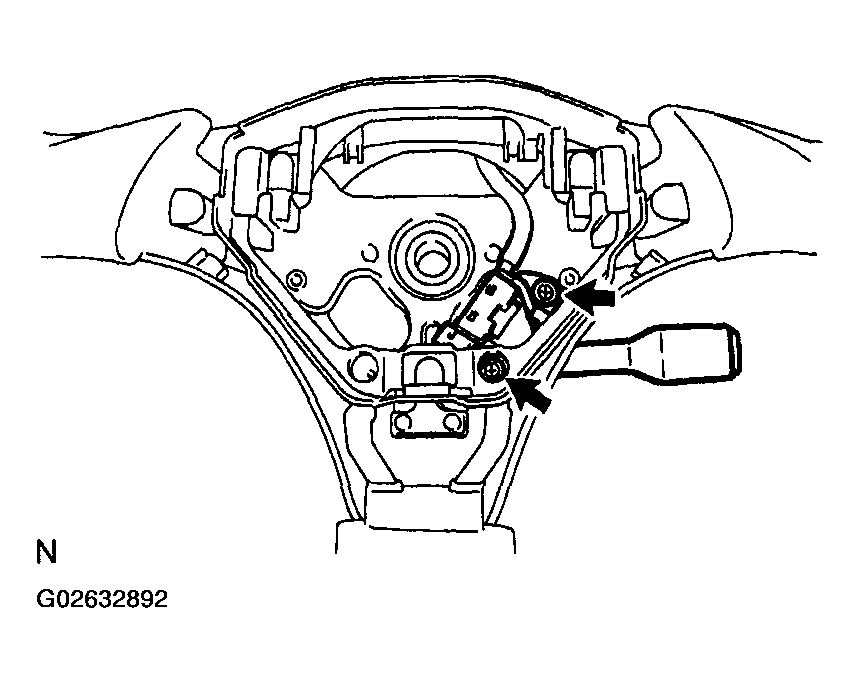

  Fig 1: Removing Cruise Control Main Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CENTER SPIRAL CABLE (SEE OVERHAUL )
INSTALL STEERING WHEEL ASSY (SEE OVERHAUL )
INSPECT STEERING WHEEL CENTER POINT (SEE OVERHAUL )
INSPECT HORN BUTTON ASSY (SEE REPLACEMENT )
INSTALL HORN BUTTON ASSY (SEE ON-VEHICLE INSPECTION )
INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM )
