Hybrid Vehicle Control System Does Not Start Using Smart Ignition Function (Start When Key Is Inserted): Wiring Diagram

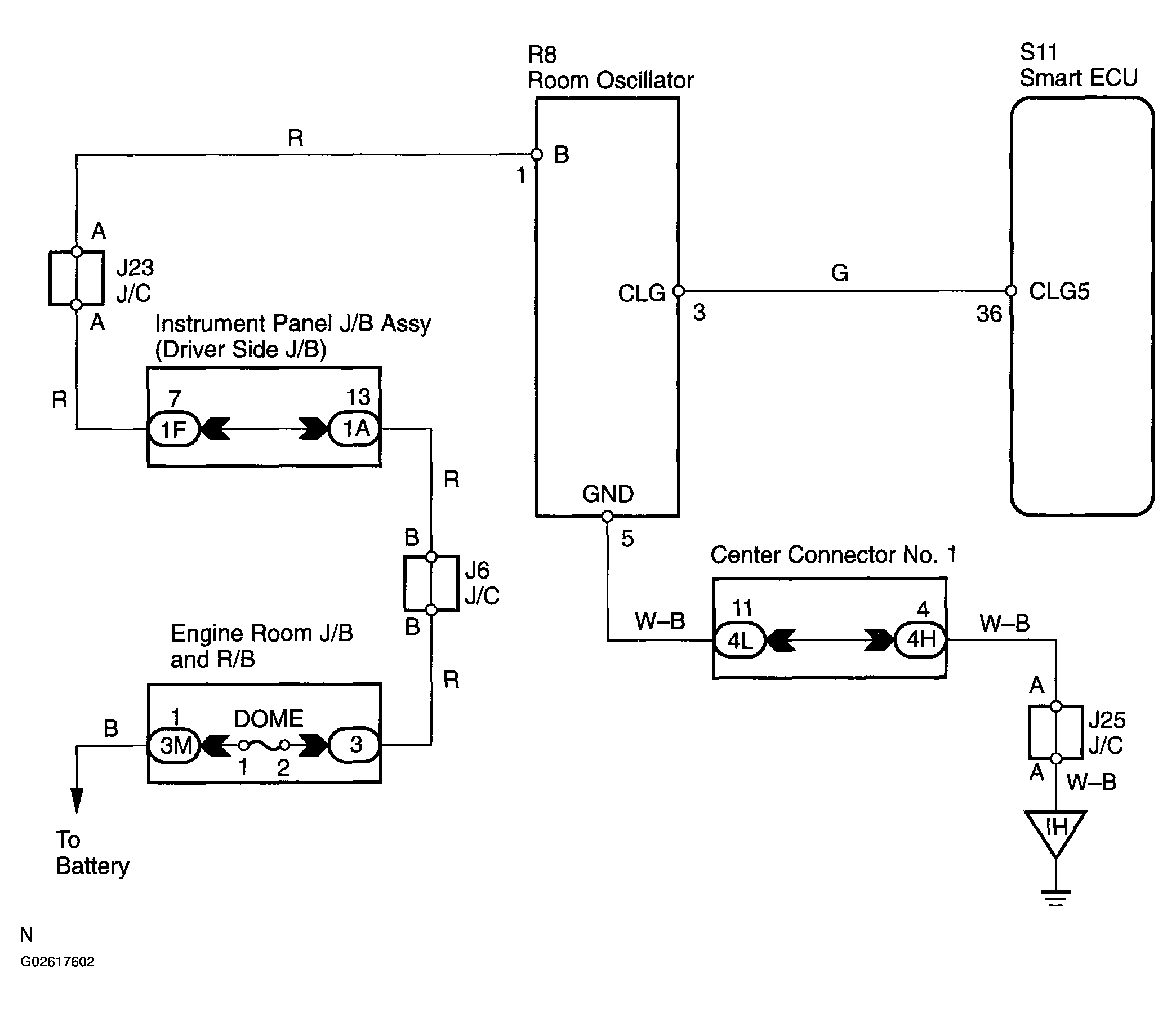

Fig 1: Wiring Diagram - Hybrid Vehicle Control System Does Not Start Using Smart Ignition Function (Start When Key Is Inserted)
G02617602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
