Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B2271 | IGNITION HOLD MONITOR MALFUNCTION |
| DTC B2272 | IGNITION 1 MONITOR MALFUNCTION |
| DTC B2273 | IGNITION 2 MONITOR MALFUNCTION |
| DTC B2274 | ACC MONITOR MALFUNCTION |
| DTC B2275 | STSW MONITOR MALFUNCTION |
| DTC B2277 | DETECTING VEHICLE SUBMERSION |
| DTC B2278 | MAIN SWITCH (POWER SWITCH) MALFUNCTION |
| DTC B2281 | P SIGNAL MALFUNCTION (CABLE INFORMATION DOES NOT MATCH BEAN INFORMATION) |
| DTC B2282 | VEHICLE SPEED SIGNAL MALFUNCTION (CABLE INFORMATION DOES NOT MATCH BEAN INFORMATION) |
| DTC B2284 | BRAKE SIGNAL MALFUNCTION (CABLE INFORMATION DOES NOT MATCH BEAN INFORMATION) |
| DTC B2286 | READY SIGNAL MALFUNCTION |
| DTC B2287, B2289 | LIN COMMUNICATION MASTER MALFUNCTION & KEY COLLATION WAITING TIME OVER |

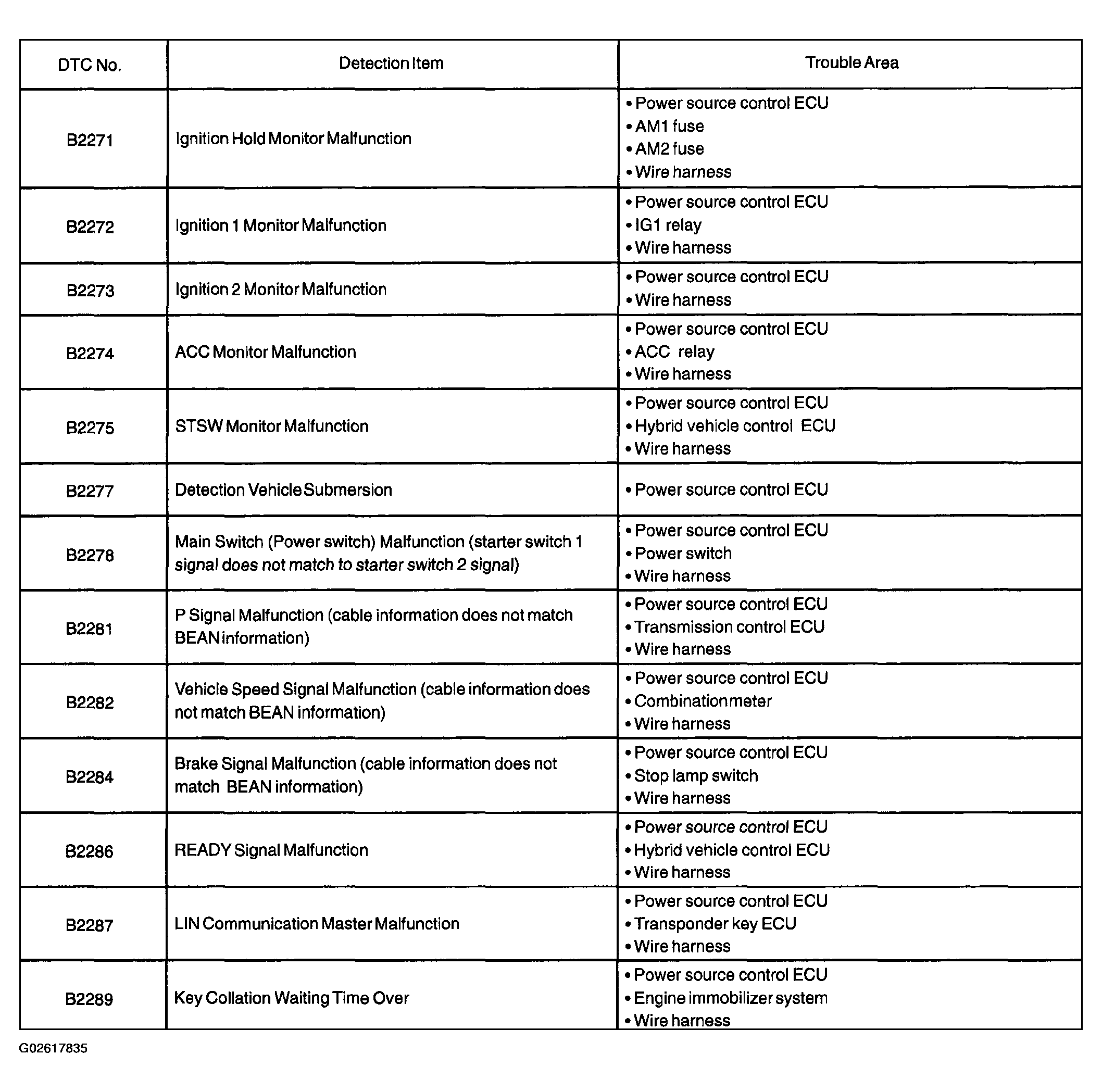

- DTC CHECK
If a malfunction code is displayed during the DTC check, check the suspected area listed for that code in the table below, and proceed to the appropriate page.
