Circuit Description

Refer to DTC P1120 DTC P1120 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT, DTC P1122 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT LOW, DTC P1123 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT HIGH  .

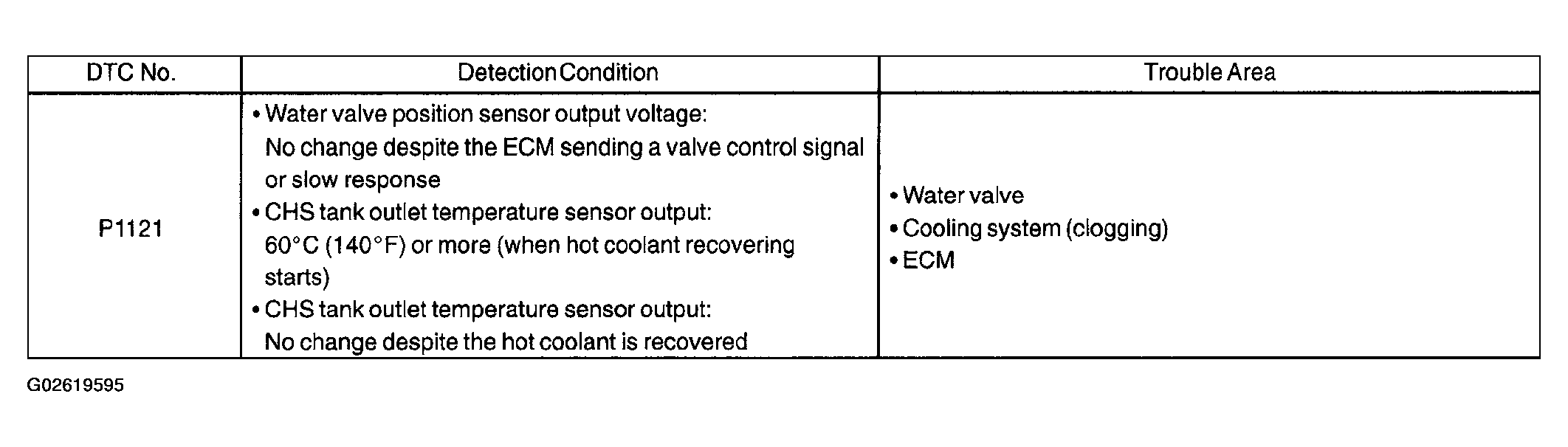

Fig 1: DTC P1121 Detection Condition And Trouble Area
G02619595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
