Confirmation Driving Pattern

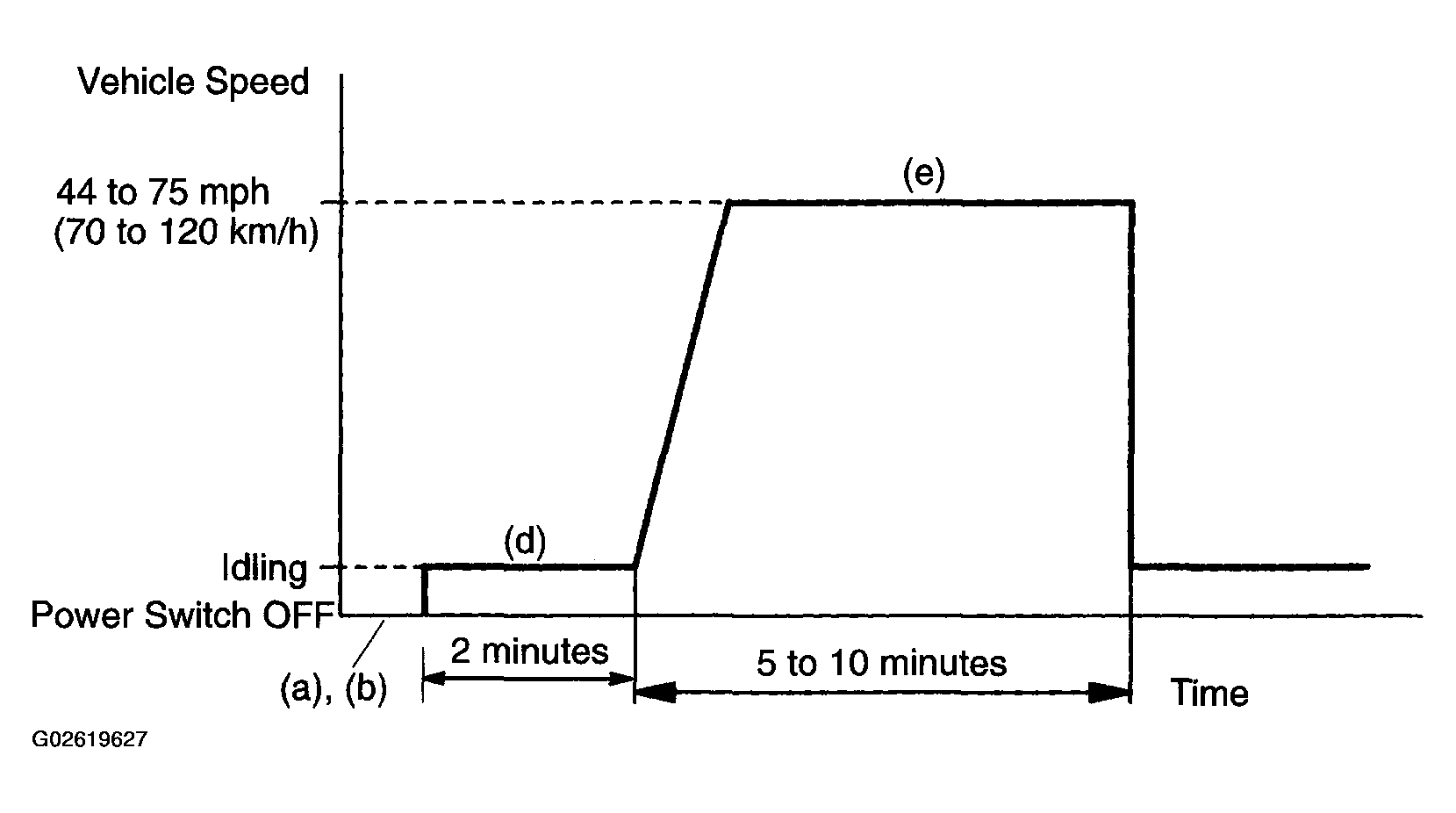

Fig 1: Confirmation Driving Pattern
G02619627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the hand-held tester to the DLC3.
  2. Switch the ECM from normal mode to check mode using the hand-held tester (See CHECK MODE PROCEDURE  )
  3. Put the engine in inspection mode (See PRECAUTION  ).
  4. Start the engine and warm it up with all the accessory switches OFF.
  5. Deactivate the inspection mode and drive the vehicle at 44 to 75 mph (70 to 120 km/h) for 5 to 10 minutes (the engine must be run during monitoring).

    HINT:

    If malfunction exists, the MIL will be illuminated during step (d).

    NOTE:
    • If the conditions in this test are not strictly followed, no malfunction will be detected. If you do not have the hand-held tester, turn the power switch OFF after performing steps (d) and (e), then perform steps (d) and (e) again.
    • Do not drive the vehicle without deactivating inspection mode, otherwise damaging the transaxle may result.
