DTC U0073, U0121: Control Module Communication Bus Off & Lost Communication With Anti-Lock Brake System (Abs) Control Module: Wiring Diagram

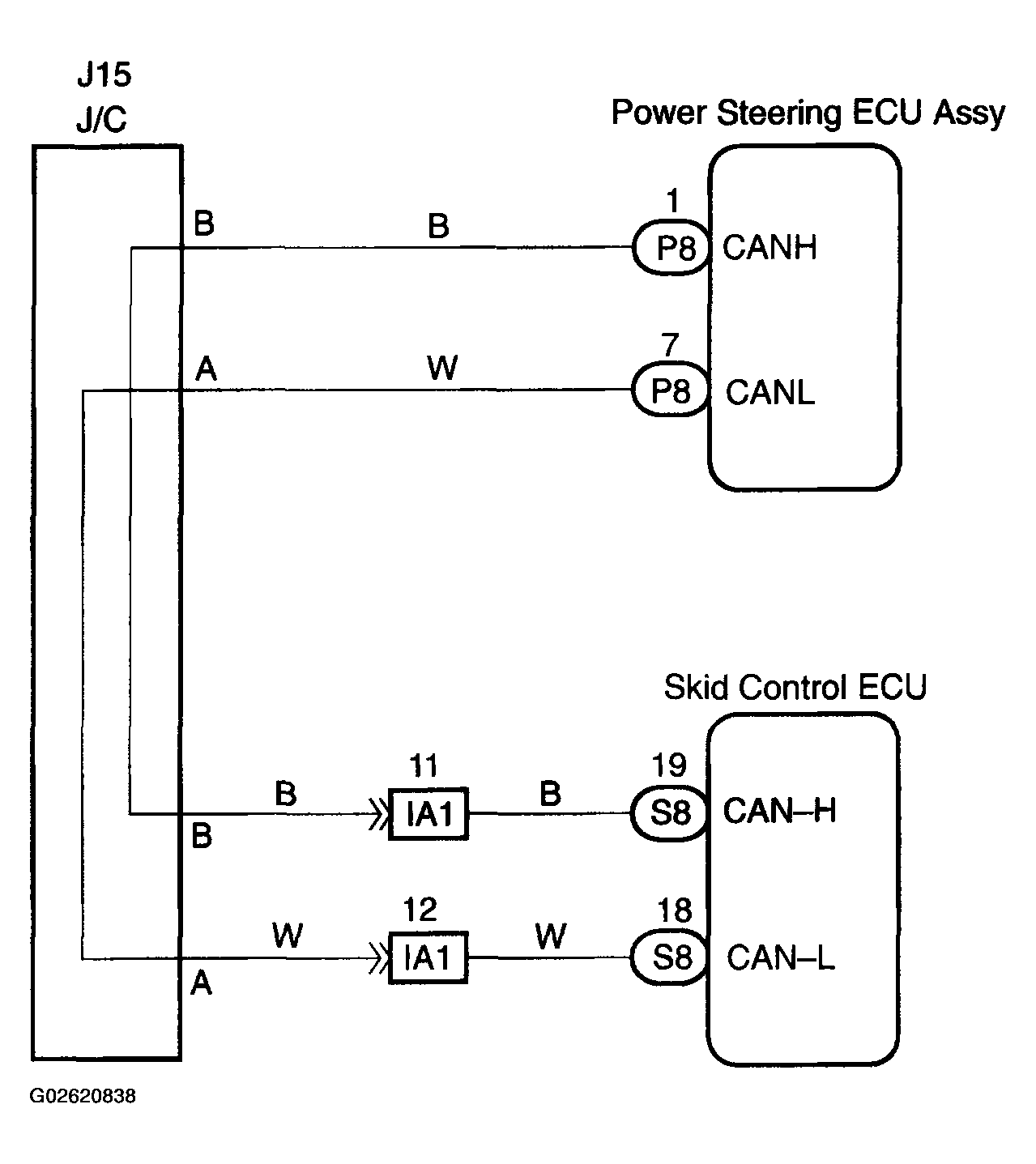

Fig 1: Wiring Diagram - DTC U0073, U0121
G02620838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
