Inspection Procedure

  1. READ VALUE OF HAND-HELD TESTER
    1. Connect the hand-held tester to the DLC3.
    2. Turn the power switch on (IG).
    3. Select the items "MAIN SW (MAIN)", MAIN SW (SUB)", "CANCEL SW", "SET/COAST SW", and "RES/ACC SW" in the DATA LIST, and check the display on the tester screen when the cruise control main switch is operated.
      Fig 1: Identifying Read Value Of Hand-Held Tester
      G02618186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HYBRID VEHICLE CONTROL ECU:

      HYBRID VEHICLE CONTROL ECU

      Item Measurement Item/Display (Range) Normal Condition
      MAIN SW (MAIN) Cruise main switch signal (Main CPU)/ON or OFF ON: Cruise control main switch
      MAIN SW (MAIN) Cruise main switch signal (Main CPU)/ON or OFF ON-OFF button is pushed on
      MAIN SW (MAIN) Cruise main switch signal (Main CPU)/ON or OFF OFF: Cruise control main switch
      MAIN SW (MAIN) Cruise main switch signal (Main CPU)/ON or OFF ON-OFF button is pushed off
      MAIN SW (SUB) Cruise main switch signal (Sub CPU)/ON or OFF ON: Cruise control main switch
      MAIN SW (SUB) Cruise main switch signal (Sub CPU)/ON or OFF ON-OFF button is pushed on
      MAIN SW (SUB) Cruise main switch signal (Sub CPU)/ON or OFF OFF: Cruise control main switch
      MAIN SW (SUB) Cruise main switch signal (Sub CPU)/ON or OFF ON-OFF button is pushed off
      CANCEL SW CANCEL switch signal/ON or OFF ON: Cruise control main switch is pulled to CANCEL
      CANCEL SW CANCEL switch signal/ON or OFF OFF: Cruise control main switch is not pulled to CANCEL
      SET/COAST SW -/SET switch signal/ON or OFF ON: Cruise control main switch is pushed to -/SET
      SET/COAST SW -/SET switch signal/ON or OFF OFF: Cruise control main switch is not pushed to -/SET
      RES/ACC SW +/RES switch signal/ON or OFF ON: Cruise control main switch is pushed to +/RES
      RES/ACC SW +/RES switch signal/ON or OFF OFF: Cruise control main switch is not pushed to +/RES

      OK:

      When cruise control main switch operation is performed, the standard values will be above.

    1. NG: Go to step   3 .
    2. OK: GO TO NEXT STEP

      PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE )

  2. INSPECT HYBRID VEHICLE CONTROL ECU
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      SWITCH CONDITION SPECIFICATION

      Symbol (Terminal Connection) Switch Condition Specified Value
      CCS (H14-13) - Body ground Neutral 10 to 14V
      CCS (H14-13) - Body ground +RES 6.6 to 10.1V
      CCS (H14-13) - Body ground -SET 4.5 to 7.1V
      CCS (H14-13) - Body ground CANCEL 2.3 to 4.0V
      CCS (H14-13) - Body ground ON-OFF button is on Below 1V
      Fig 2: Inspecting Hybrid Vehicle Control ECU
      G02618187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

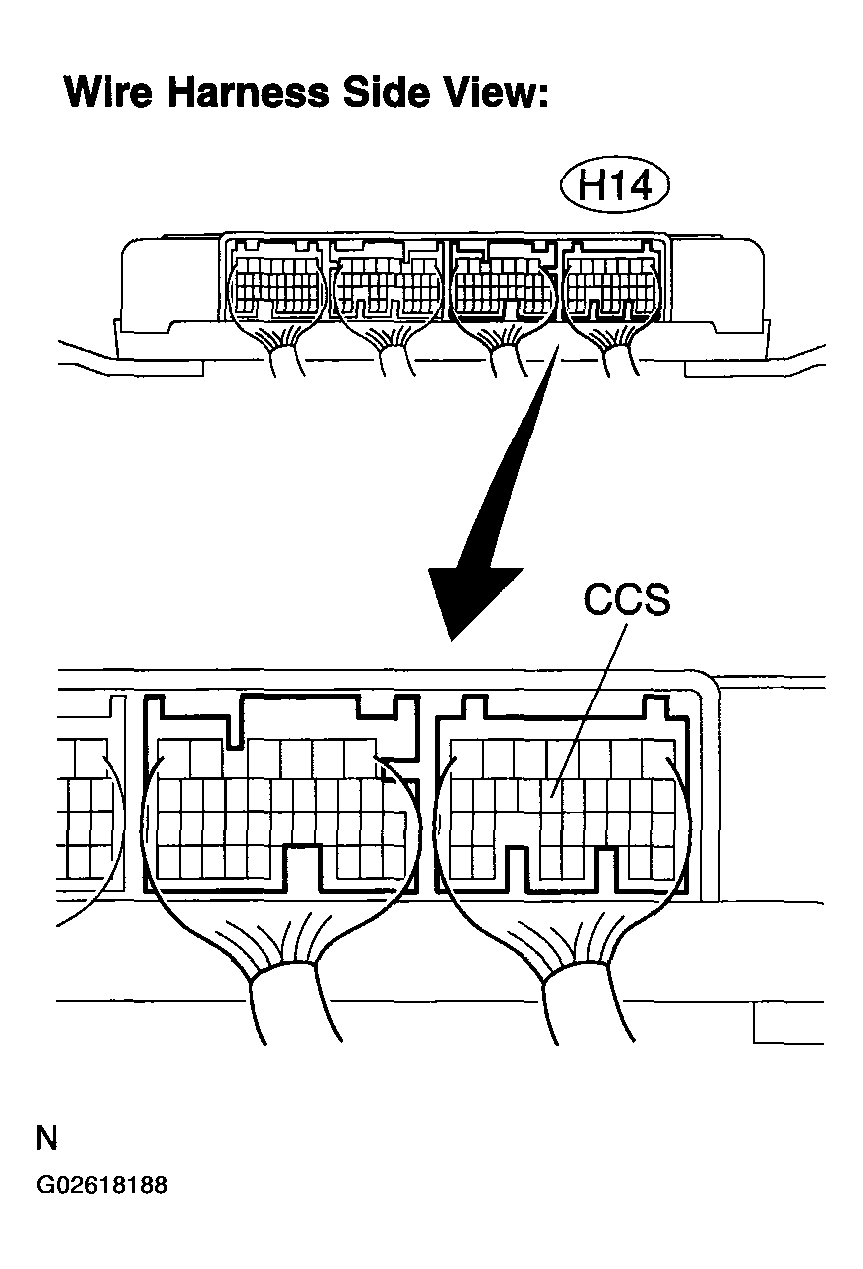

      Fig 3: Identifying Side View Of Wire Harness
      G02618188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step 3
    2. OK: GO TO NEXT STEP

      PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (SEE )

  3. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Disconnect the H14 connector of the hybrid vehicle control ECU.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      SWITCH CONDITION SPECIFICATION

      Symbol (Terminal Connection) Switch Condition Specified Value
      CCS (H14-13) - Body ground Neutral 10 kΩ or higher
      CCS (H14-13) - Body ground +RES 210 to 270 Ω
      CCS (H14-13) - Body ground -SET 560 to 700 Ω
      CCS (H14-13) - Body ground CANCEL 1,380 to 1,700 Ω
      CCS (H14-13) - Body ground ON-OFF button is on Below 1 Ω
      Fig 4: Inspecting Cruise Control Main Switch
      G02618189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

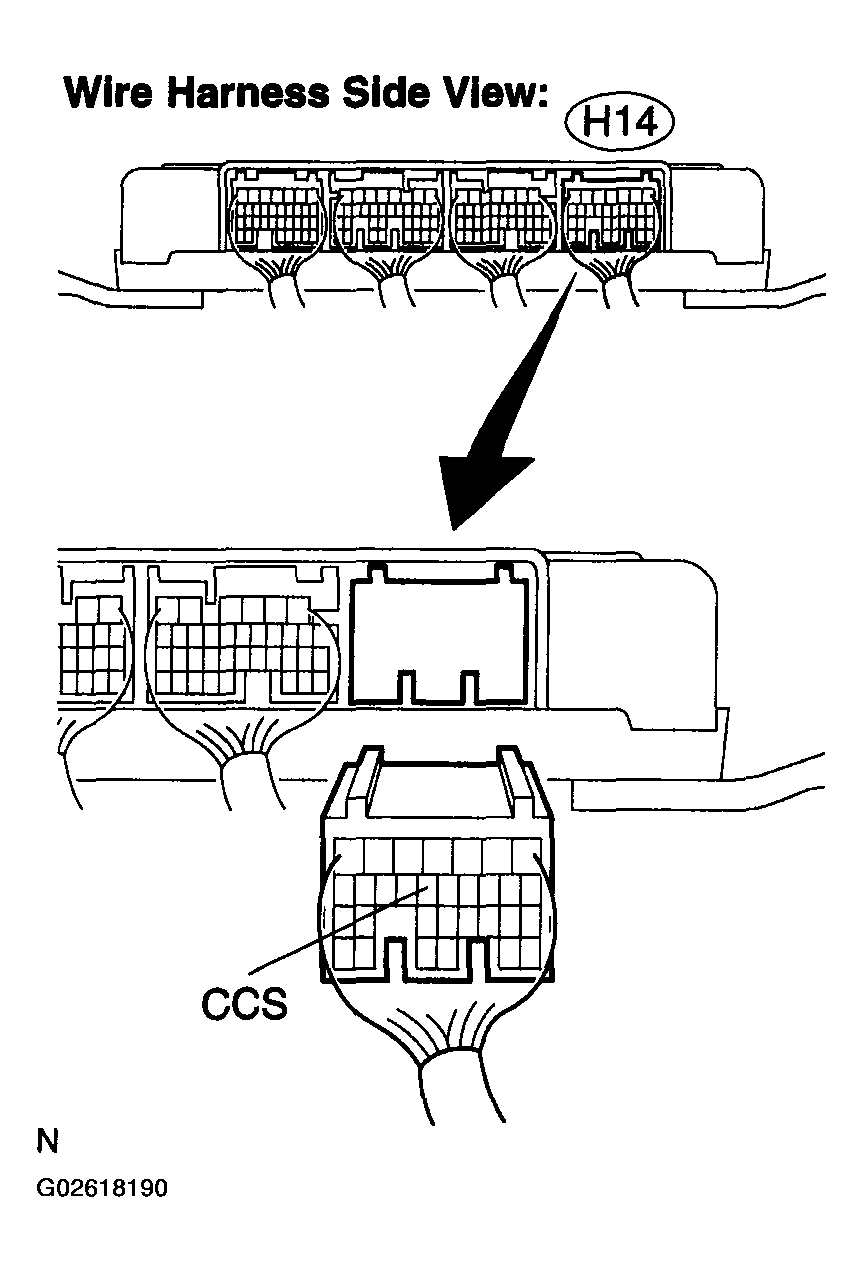

      Fig 5: Identifying Side View Of Wire Harness
      G02618190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step 4
    2. OK: GO TO NEXT STEP

      REPLACE HYBRID VEHICLE CONTROL ECU (SEE )

  4. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Disconnect the cruise main control switch connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      SWITCH CONDITION SPECIFICATION

      Tester Connection Switch Condition Specified Value
      B-1 - B-3 Neutral 10 kΩ or higher
      B-1 - B-3 +RES 210 to 270 Ω
      B-1 - B-3 -SET 560 to 700 Ω
      B-1 - B-3 CANCEL 1,380 to 1,700 Ω
      B-1 - B-3 ON-OFF button is on Below 1 Ω

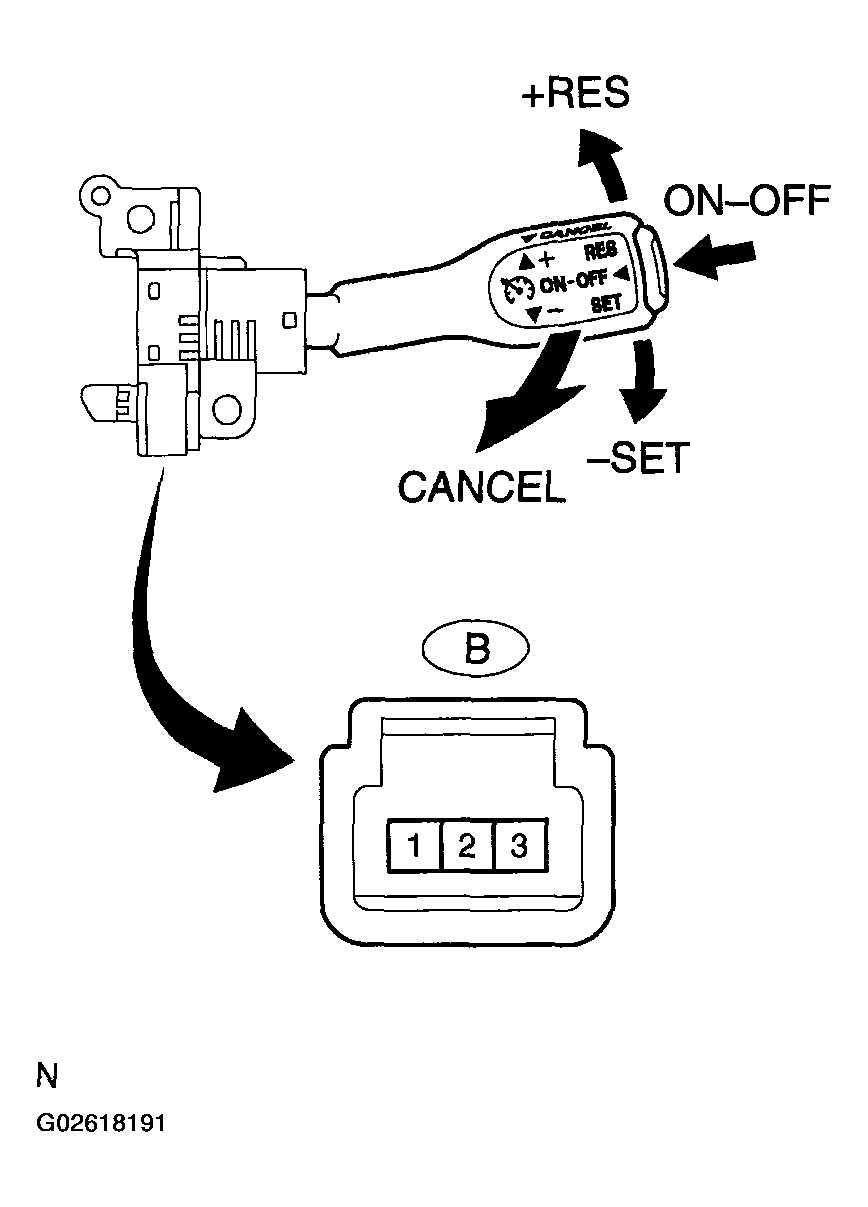

      Fig 6: Disconnecting Cruise Main Control Switch Connector
      G02618191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE CRUISE CONTROL MAIN SWITCH (SEE  REPLACEMENT  )
    2. OK: GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH - SPIRAL CABLE SUB-ASSY)
    1. Disconnect the spiral cable side connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION CONDITION SPECIFICATION

      Terminal Connection Condition Specified Value
      A-3 - B-1 Always Below 1 Ω
      A-4 - B-3 Always Below 1Ω

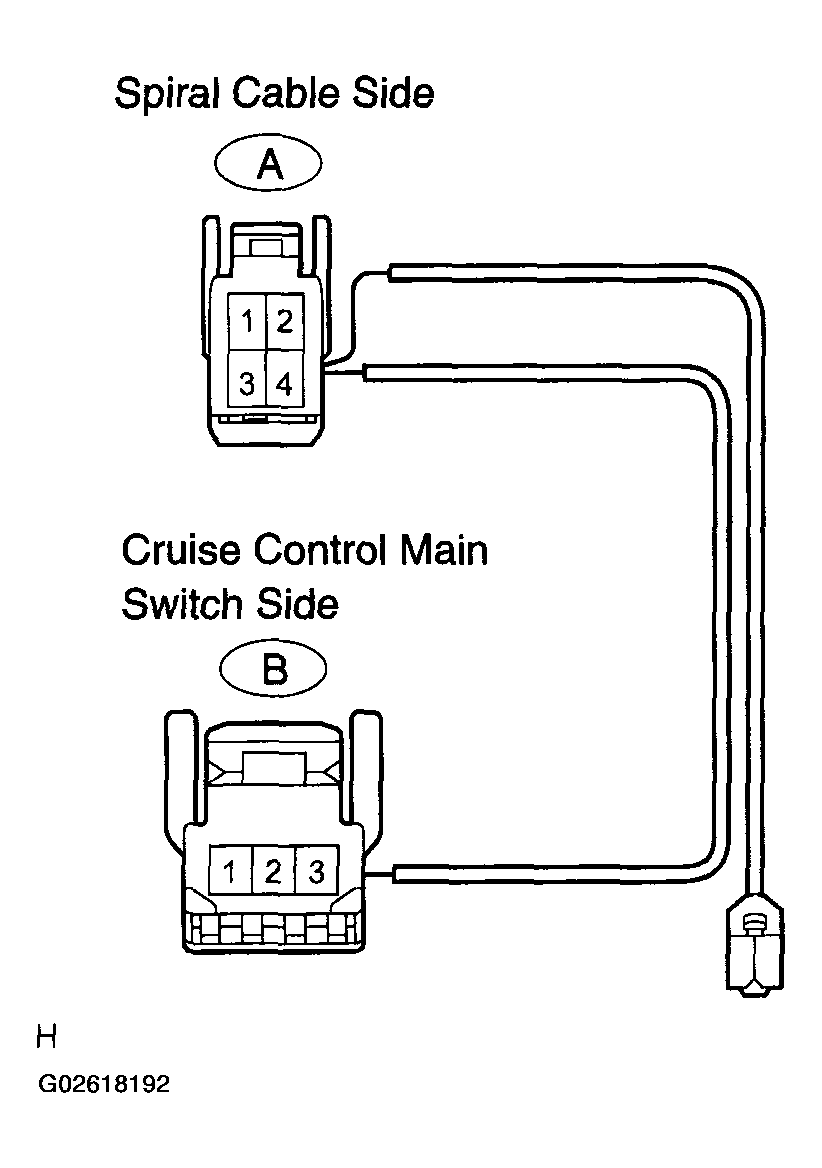

      Fig 7: Disconnecting Spiral Cable Side Connector
      G02618192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  6. INSPECT SPIRAL CABLE SUB-ASSY
    1. Disconnect the spiral cable connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION CONDITION SPECIFICATION

      Terminal Connection Condition Specified Value
      A-3 - C12-1 Always Below 1 Ω
      A-4 - C12-2 Always Below 1 Ω

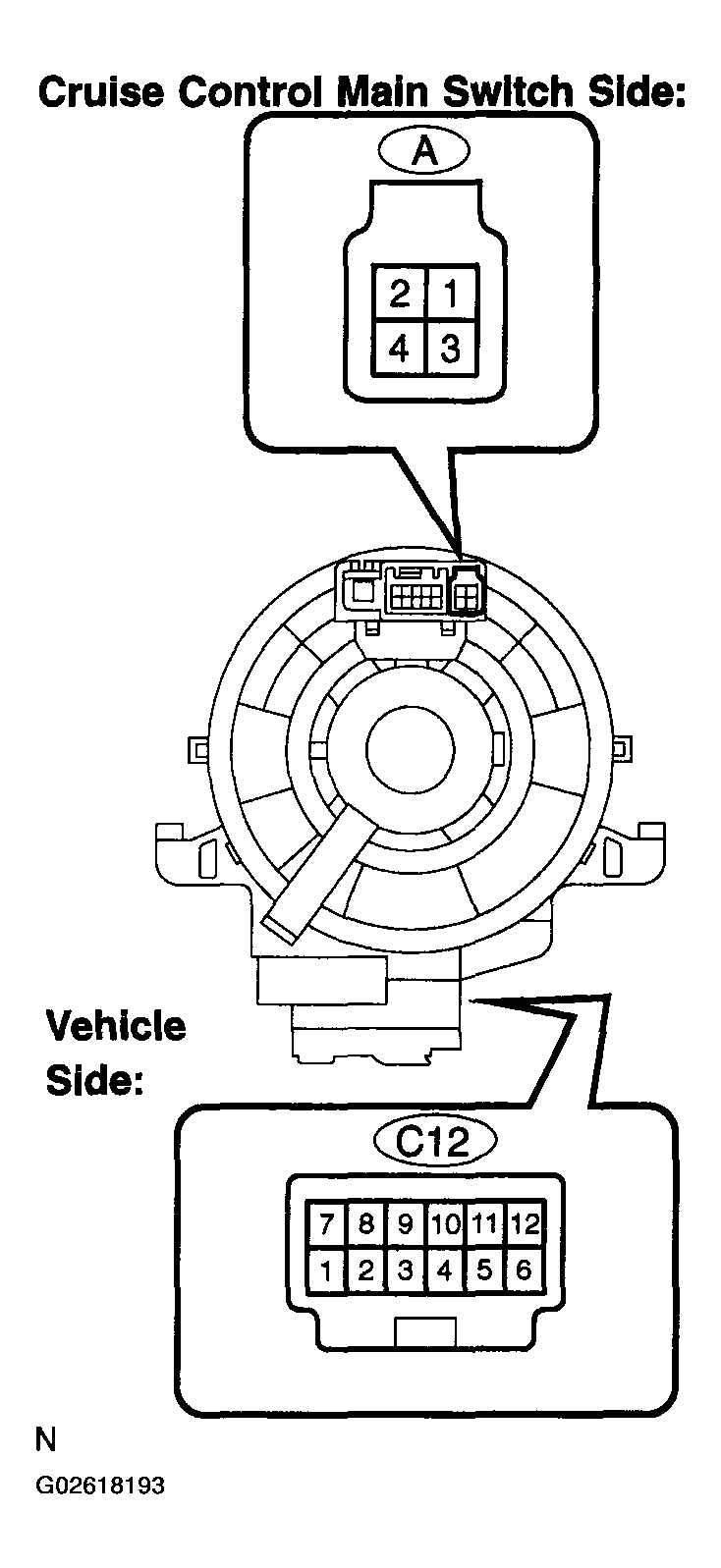

      Fig 8: Inspecting Spiral Cable Sub-Assy
      G02618193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE )
    2. OK: GO TO NEXT STEP
  7. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - HYBRID VEHICLE CONTROL ECU)
    1. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION CONDITION SPECIFICATION

      Symbol (Terminal Connection) Condition Specified Value
      CCS (H14-13) - C12-1 Always Below 1 Ω
      CCS (H14-13) - Body ground Always 10 kΩ or higher
      Fig 9: Checking Harness And Connector (Spiral Cable Sub-Assy - Hybrid Vehicle Control ECU)
      G02618194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

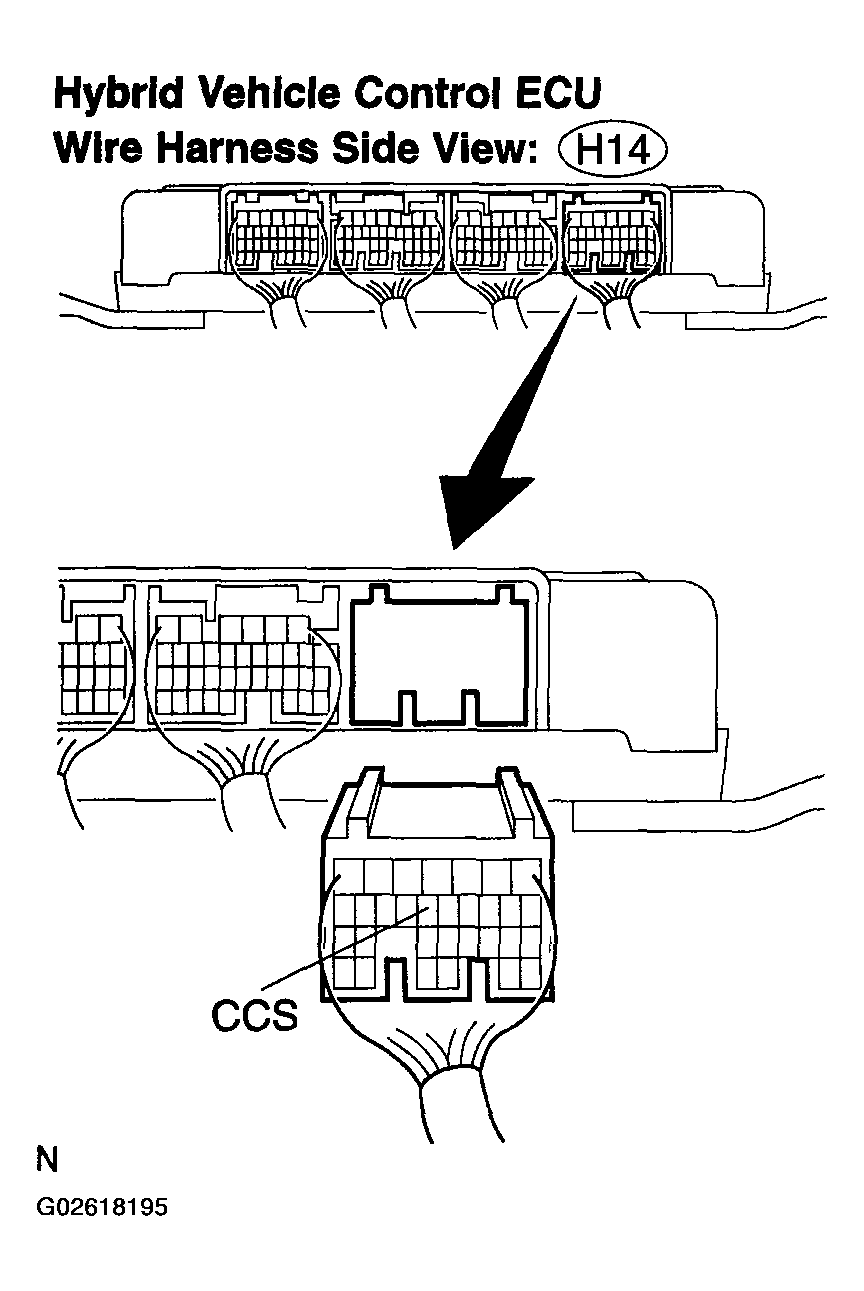

      Fig 10: Identifying Hybrid Vehicle Control ECU Connector Terminal
      G02618195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY - HYBRID VEHICLE CONTROL ECU)
    2. OK: GO TO NEXT STEP

      REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)
