Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODES (DTC) LIST

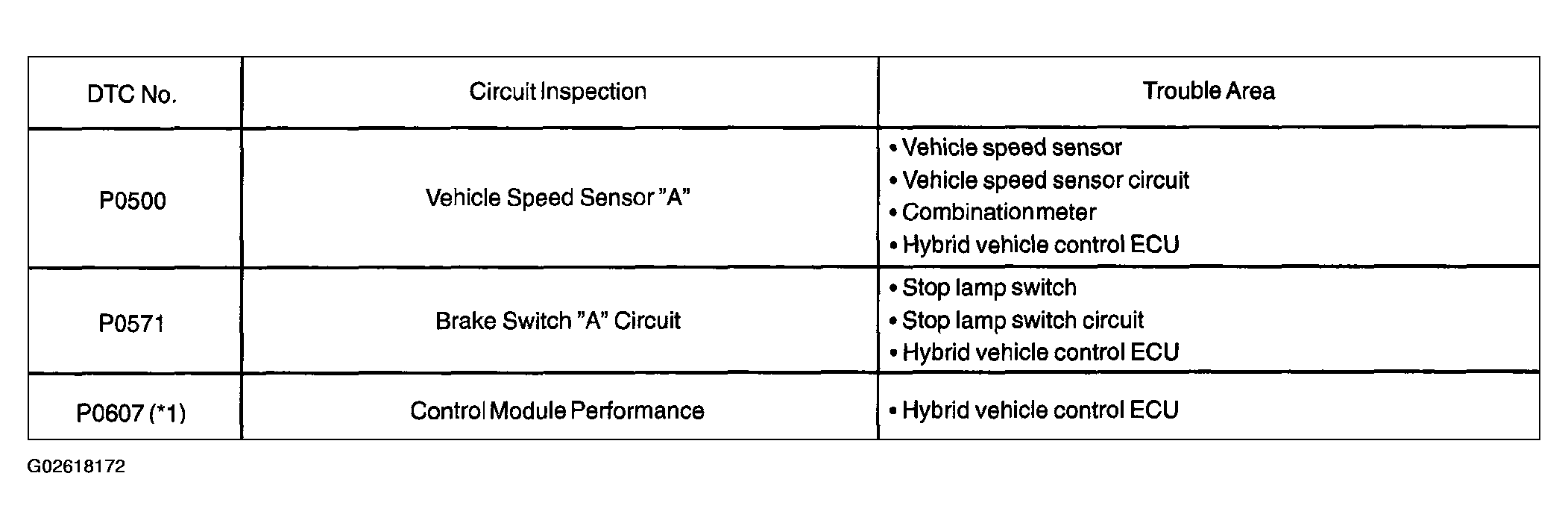

| DTC | Description |
|---|---|
| DTC P0500 | VEHICLE SPEED SENSOR "A" |
| DTC P0571 | BRAKE SWITCH "A" CIRCUIT |
| DTC P0607 | CONTROL MODULE PERFORMANCE |
If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "See page" under the respective "DTC No." in the DTC chart.
HINT:
*1: DTC P0607 indicates an internal abnormality of the hybrid vehicle control ECU. If this DTC is output, replace the hybrid vehicle control ECU.
