Smart Functions Do Not Operate At All: Wiring Diagram

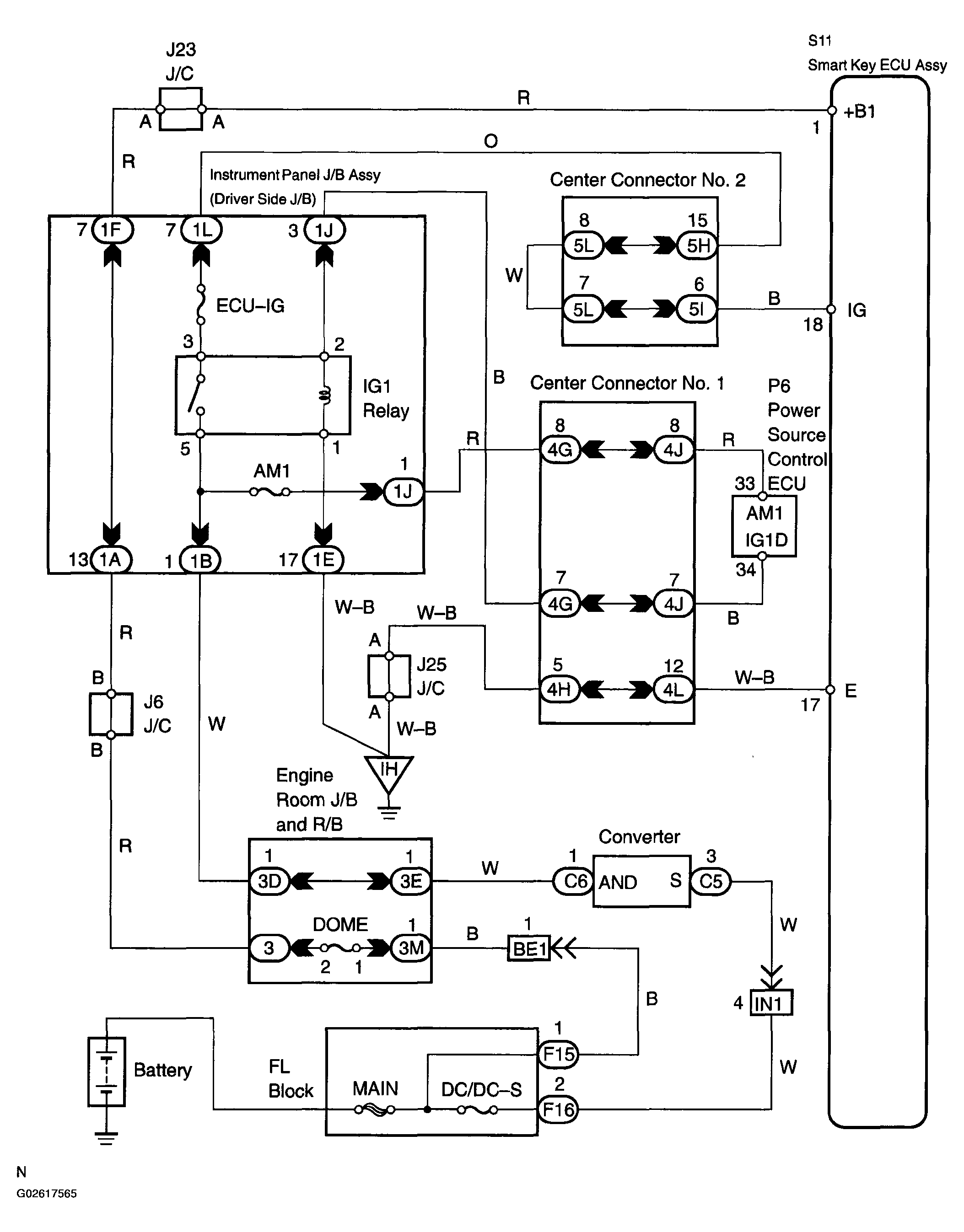

Fig 1: Wiring Diagram - Smart Functions Do Not Operate At All
G02617565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
