Inspection Procedure
- CHECK MANUAL DOOR UNLOCK OPERATION
- Check that the manual door unlock function operates normally.
OK: Manual door unlock function operates normally.
- NG: Go to POWER DOOR LOCK CONTROL SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )
- OK: GO TO NEXT STEP
- Check that the manual door unlock function operates normally.
- CHECK DOOR ELECTRICAL KEY OSCILLATOR RH
- Measure the voltage between the terminals of the connector when the smart key is operated.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
- NG: Go to STEP 7
- OK: GO TO NEXT STEP
- Measure the voltage between the terminals of the connector when the smart key is operated.
- CHECK DOOR ELECTRICAL KEY OSCILLATOR RH
- Measure the voltage between the terminals of the connector when the outside door handle is touched.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
- NG: Go to STEP4
- OK: Go to STEP 5
- Measure the voltage between the terminals of the connector when the outside door handle is touched.

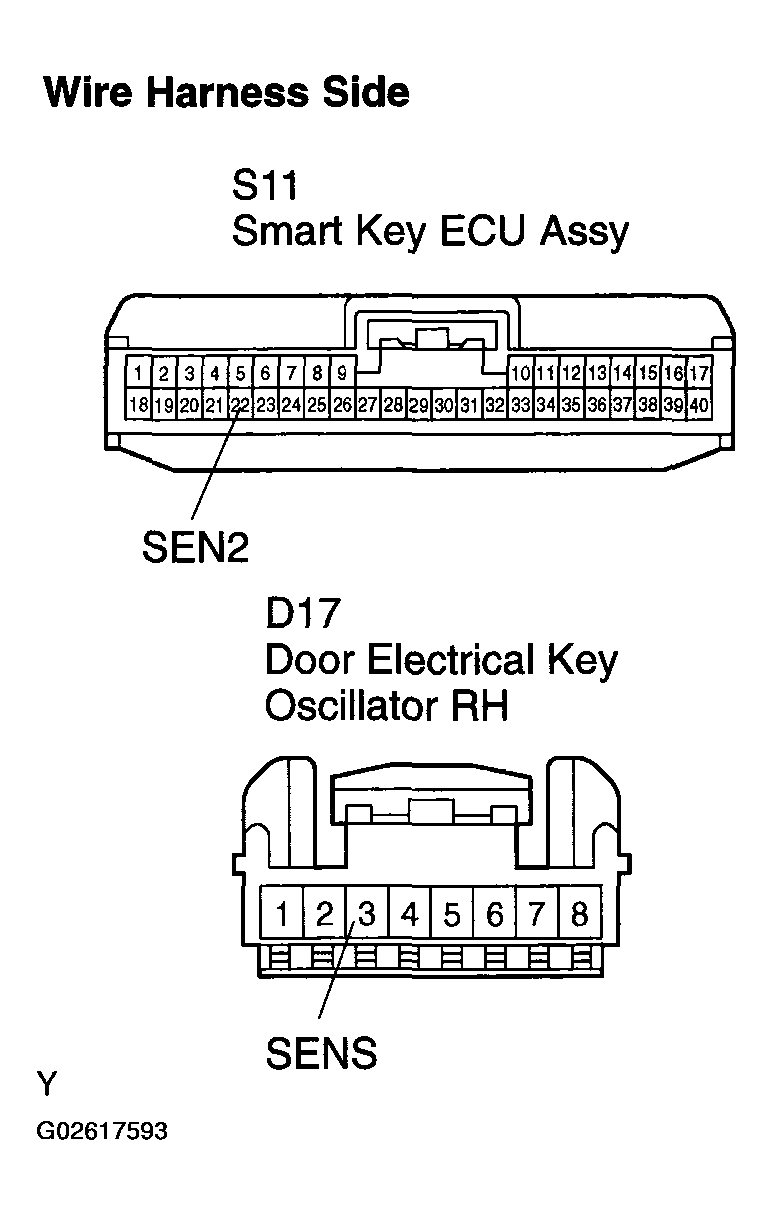

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR RH - SMART KEY ECU ASSY)
- Disconnect the D17 oscillator connector.
- Disconnect the S11 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition D17-3 (SENS) - S11-22 (SEN2) Below 1 Ω D17-3 (SENS) or S11-22 (SEN2) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
- CHECK OPERATION OF DOOR ELECTRICAL KEY OSCILLATOR RH
- After replacing the door oscillator with a new one, check that the smart unlock function operates normally.
OK: Smart unlock function operates normally.
- NG: Go to STEP6
- OK: GO TO NEXT STEP
REPLACE DOOR ELECTRICAL KEY OSCILLATOR RH
- After replacing the door oscillator with a new one, check that the smart unlock function operates normally.

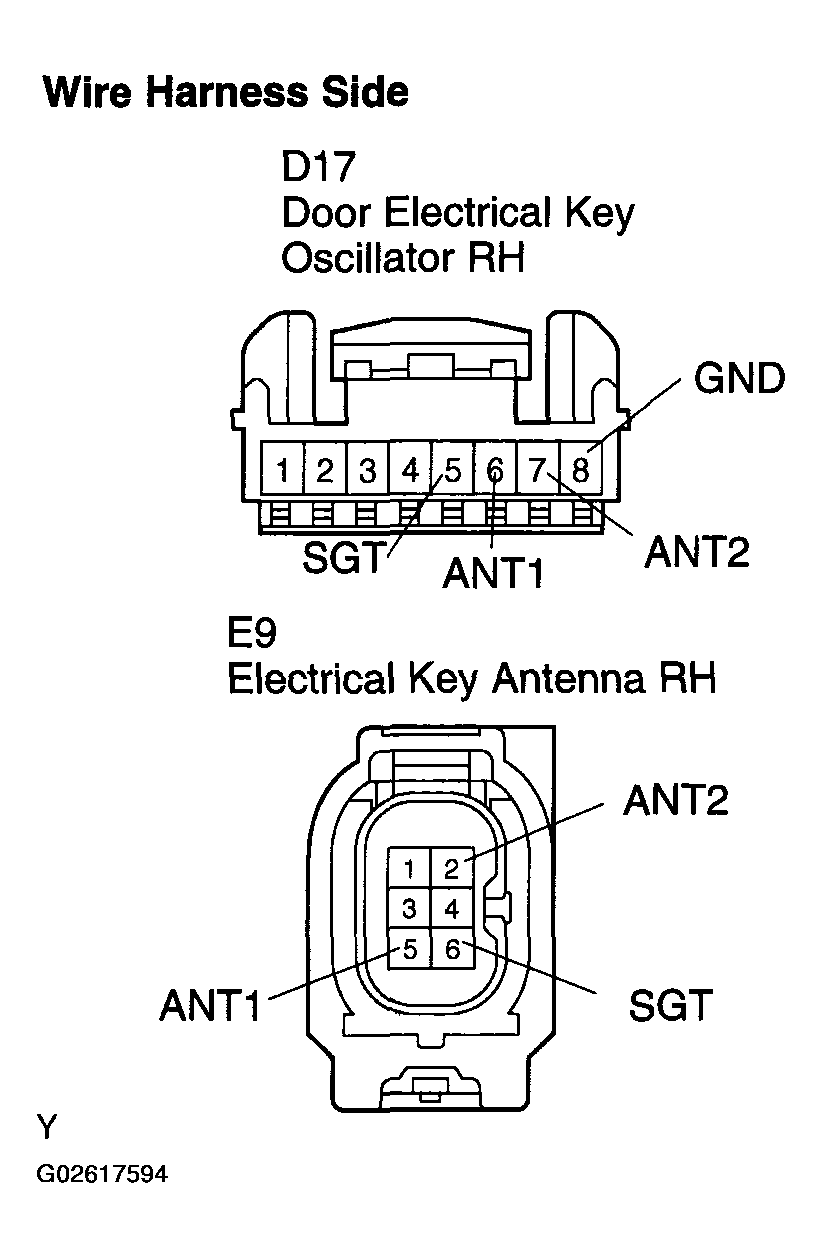

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR RH - ELECTRICAL KEY ANTENNA RH AND BODY GROUND)
- Disconnect the D17 oscillator connector.
- Disconnect the E9 antenna connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition D17-6 (ANT1) - E9-5 (ANT1) Below 1 Ω D17-7 (ANT2) - E9-2 (ANT2) Below 1 Ω D17-5 (SGT) - E9-6 (SGT) Below 1 Ω D17-8 (GND) - Body ground Below 1 Ω D17-6 (ANT1) or E9-5 (ANT1) - Body ground 10 kΩ or higher D17-7 (ANT2) or E9-2 (ANT2) - Body ground 10 kΩ or higher D17-5 (SGT) or E9-6 (SGT) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
REPLACE ELECTRICAL KEY ANTENNA RH

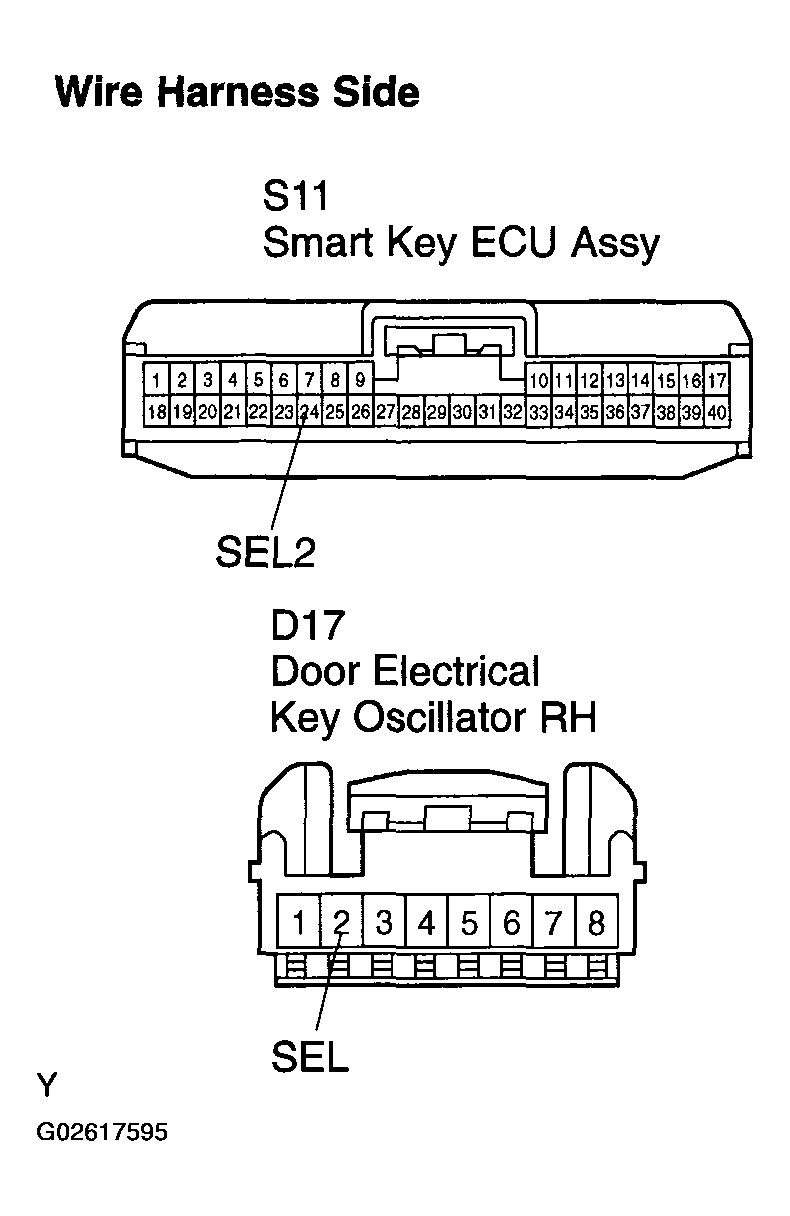

- CHECK WIRE HARNESS (DOOR ELECTRICAL KEY OSCILLATOR RH - SMART KEY ECU ASSY)
- Disconnect the D17 oscillator connector.
- Disconnect the S11 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition D17-2 (SEL) - S11-24 (SEL2) Below 1 Ω D17-2 (SEL) or S11-24 (SEL2) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
REPLACE SMART KEY ECU ASSY
