Diagnostic Trouble Codes Check/Clear

CHECK DTC
1. Connect the hand-held tester together with the CAN VIM. Then connect the CAN VIM to the DLC3.
2. Turn the power switch ON (IG).
3. Read the DTCs by following the directions on the tester screen.
  HINT:

  Refer to the hand-held tester operator's manual for further details.

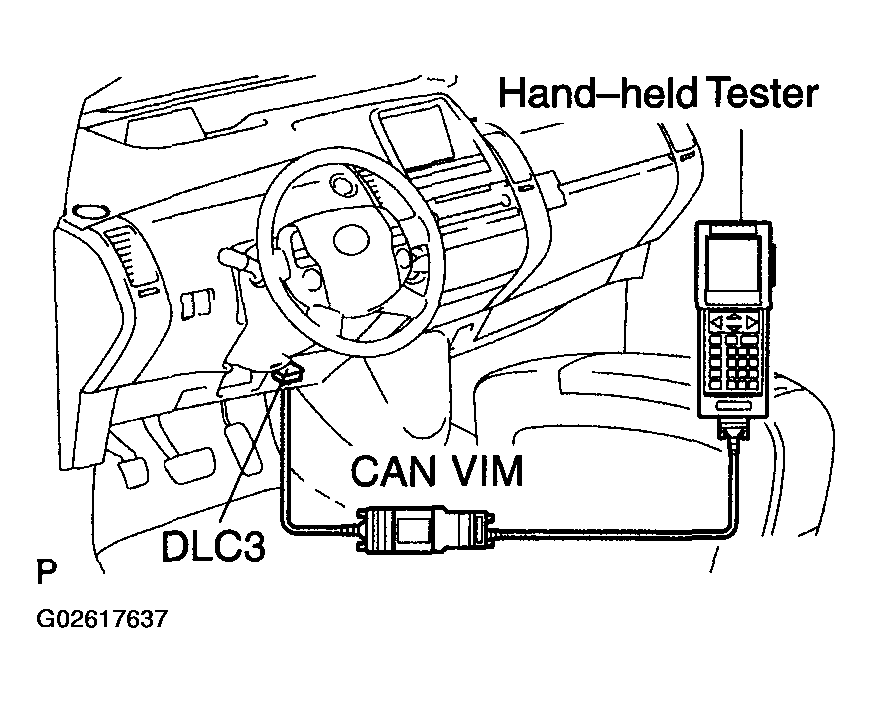

  Fig 1: Connecting Hand-Held Tester (With CAN VIM) To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Erase the DTCs by following the directions on the tester screen.
  HINT:

  Refer to the hand-held tester operator's manual for further details.
