Inspection Procedure

1. NG: Go to step 2
2. OK: GO TO NEXT STEP

   END

1. Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.

   OK: Transmitter's LED illuminates 3 times when switch is pressed 3 times.

1. NG: Go to step   4
2. OK: GO TO NEXT STEP

1. Check standard UNLOCK/LOCK switch operation.
   NOTE: Standardized test procedure: press the transmitter switch for 1 second, directing the beam to the driver side door outside handle from a distance of 1 m (3.28 ft.). The transmitter should be pointed directly at the handle, i.e. at a 90° angle to the vehicle body.

1. NG: Go to step   5
2. OK: GO TO NEXT STEP

   REPLACE DOOR CONTROL TRANSMITTER

1. After replacing the door control receiver, check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK: Doors can be locked and unlocked with transmitter.

1. NG: REPLACE DOOR CONTROL TRANSMITTER
2. OK: GO TO NEXT STEP

   END

1. Switch to self-diagnostic mode using the hand-held tester.
   1. Connect the hand-held tester (with CAN VIM) to the DLC3.
   2. Turn the power switch ON (IG) and push the hand-held tester main switch ON.
   3. Please refer to the hand-held tester operator's manual for further details.
2. Switch to self-diagnostic mode by operating the key slot.
   1. Put the vehicle under the vehicle's initial condition (See ON-VEHICLE INSPECTION  ), insert the key into the key slot and remove it.
   2. Within 5 seconds of removing the key (step 1), insert the key into the key slot. Then turn the power switch ON (IG) and OFF.
   3. Within 30 seconds of switching the power switch OFF again (step 2), perform the following 9 times: Turn the power switch ON (IG) and OFF.
   NOTE: If the change to self-diagnostic mode has failed, the system will return to normal mode.

   HINT:

   • Turning the power switch ON (IG) after step 3 has been completed will end self-diagnostic mode.
   • Do not lock or unlock doors during self-diagnostic mode.
3. Check that the system has switched to self-diagnostic mode by checking the flashes of the room lamp (dome lamp or key slot light). Compare the flash patterns of the room lamp to the timing chart on the left.

   OK:

   Flash patterns of room lamp should be the same as that shown in timing chart on left.

1. NG: Go to step   9
2. OK: GO TO NEXT STEP
   Fig 1: Room Lamp Flash Pattern

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the diagnosis outputs when the door control transmitter switch is held down. The diagnosis outputs can be checked by the flash patterns of the room lamp.

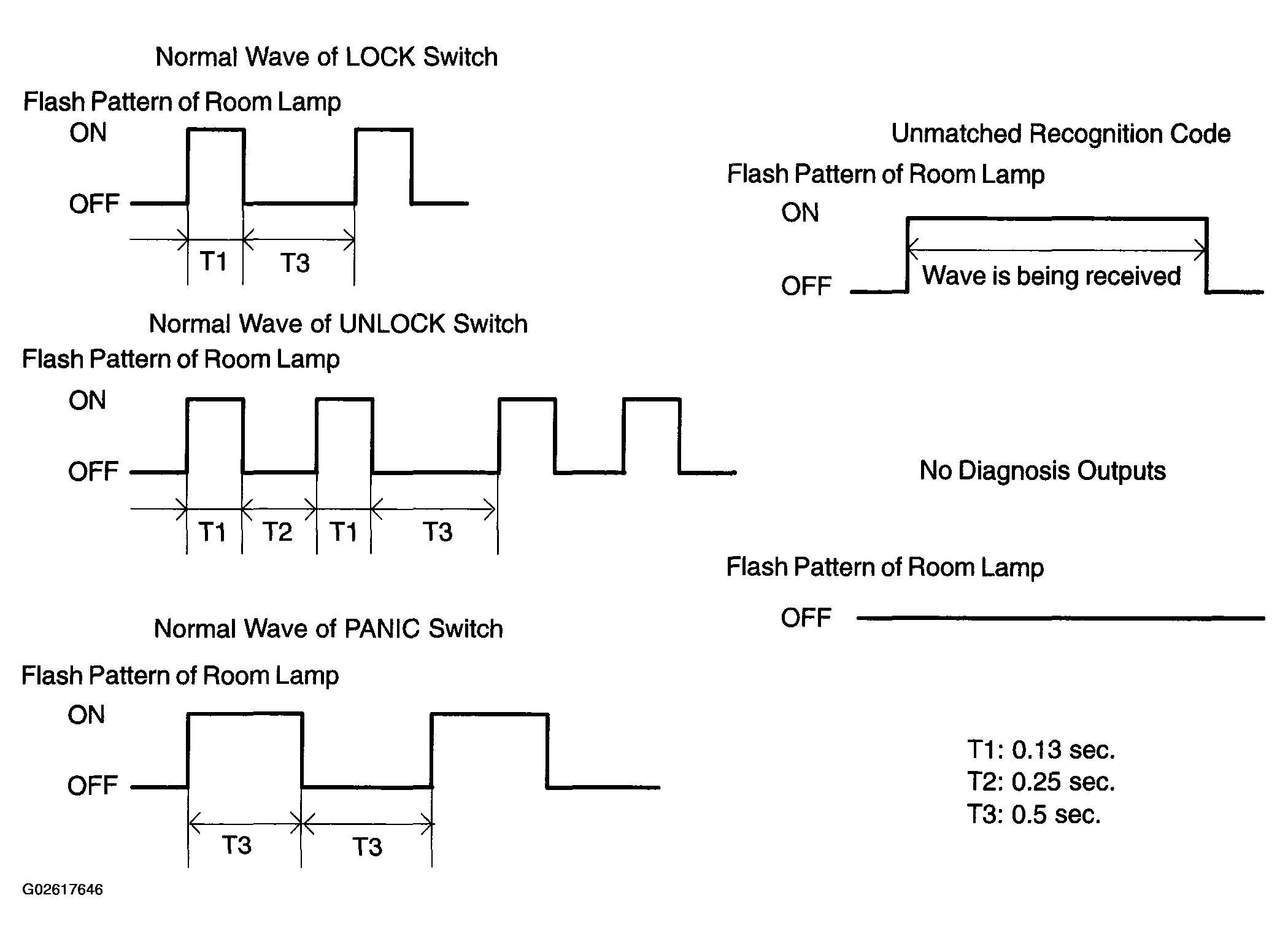

   Fig 2: Self-Diagnostic Mode Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result:

   RESULT



   Result	Proceed to
   When unmatched recognition code is output	A
   When normal waves (patterns of room lamp) for LOCK, UNLOCK and PANIC switches are output	B
   When no diagnosis outputs are present	C

1. B: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY (MULTIPLEX NETWORK BODY ECU)
2. C: Go to step   8
3. A

1. Check that the system can switch to rewrite mode or add mode and that a recognition code can be registered.

   OK: System can switch to rewrite mode or Add mode and that recognition code can be registered.

1. NG: Go to step   15
2. OK: GO TO NEXT STEP

   END

1. When a new or normally functioning door lock control transmitter switch for the same type vehicle is held down, check that an unmatching recognition code is output.

   OK: Unmatching recognition code is output.

1. NG: Go to step   12
2. OK: GO TO NEXT STEP

   REPLACE DOOR CONTROL TRANSMITTER

Result:

1. B: Go to step   5
2. A

1. Measure the resistance of the halfway switch.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   K2-4 (KSW1) - K2-2 (COM)	No key is in key slot	10 kΩ or higher
   K2-4 (KSW1) - K2-2 (COM)	Key is in key slot	Below 1 Ω

   Fig 3: Identifying Key Slot

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE KEY SLOT
2. OK: GO TO NEXT STEP

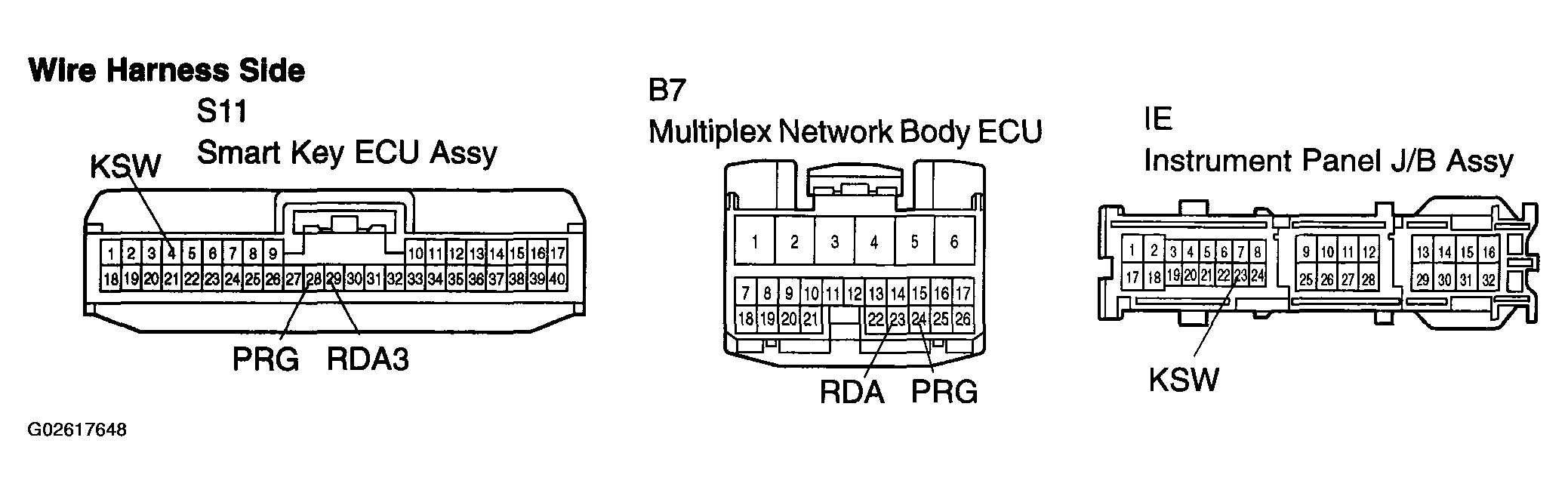

Fig 4: Identifying Wire Harness (Smart Key ECU Assembly - Instrument Panel J/B Assembly (Multiplex Network Body ECU))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S11 and B7 ECU connectors.
2. Disconnect the 1E J/B connector.
3. Measure the resistance of wire harness side connectors.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   S11-29 (RDA3) - B7-23 (RDA)	Below 1 Ω
   S11-28 (PRG) - B7-24 (PRG)	Below 1 Ω
   S11-4 (KSW) - 1E-23 (KSW)	Below 1 Ω

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: GO TO NEXT STEP

1. After replacing the smart key ECU, check that the door can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK: Doors can be locked and unlocked with transmitter.

1. NG: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY (MULTIPLEX NETWORK BODY ECU)
2. OK: GO TO NEXT STEP

   END (SMART KEY ECU ASSY IS DEFECTIVE)

1. Disconnect the D4 receiver connector.
2. Measure the voltage and resistance of the wire harness side connector.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D4-5 (+B) - Body ground	10 to 14 V
   D4-1 (GND) - Body ground	Below 1 Ω

   Fig 5: Identifying Wire Harness (Door Control Receiver - Battery And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: GO TO NEXT STEP

1. Disconnect the D4 receiver connector.
2. Disconnect the S11 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   D4-4 (DATA) - S11-10 (RDA)	Below 1 Ω
   D4-3 (RSSI) - S11-11 (RSSI)	Below 1 Ω
   D4-4 (DATA) - S11-10 (RDA) - Body ground	10 kΩ or higher
   D4-3 (RSSI) - S11-11 (RSSI) - Body ground	10 kΩ or higher

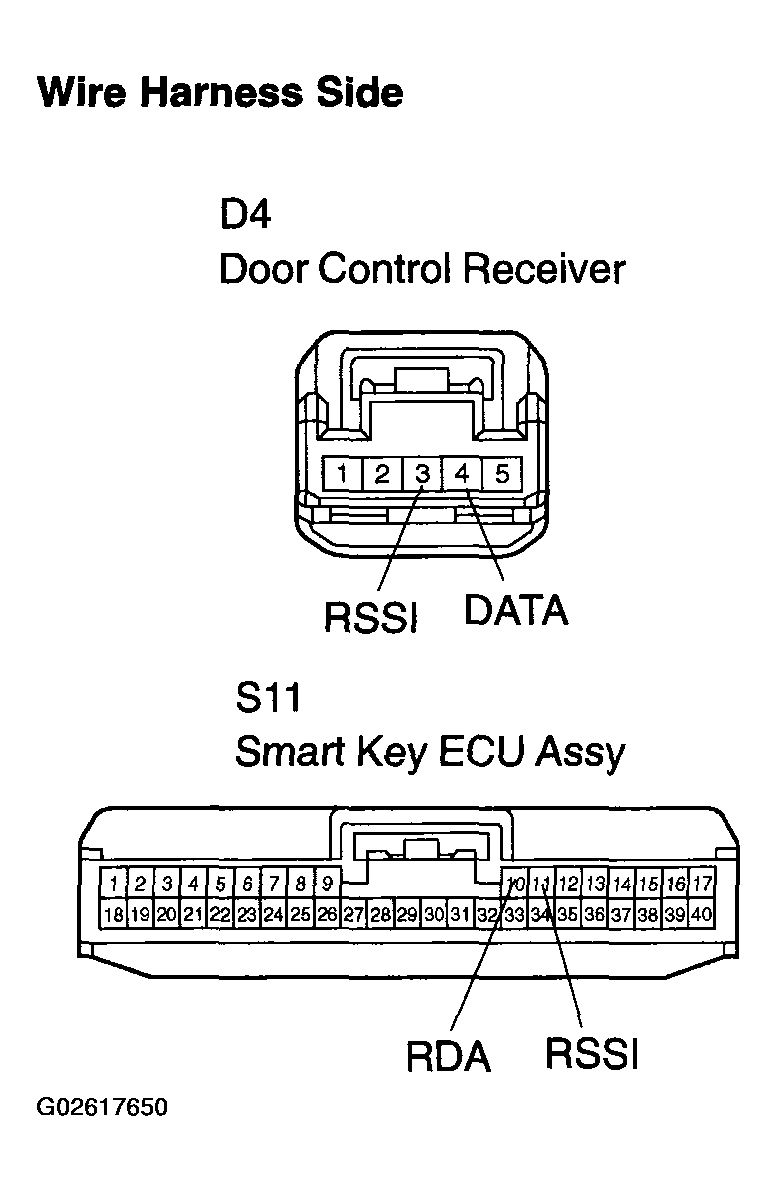

   Fig 6: Identifying Wire Harness (Door Control Receiver - Smart Key ECU Assembly And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: GO TO NEXT STEP

1. Reconnect the D4 receiver connector.
2. Measure the voltage of the connector.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   D4-4 (DATA) - Body ground	Transmitter switch OFF (power switch OFF and all doors closed)	Below 1 V
   D4-4 (DATA) - Body ground	Transmitter switch ON (power switch OFF and all doors closed)	Alternating 6 to 7 V and below 1 V

   Fig 7: Identifying Door Control Receiver (Output)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: Go to step   15
2. OK: GO TO NEXT STEP

   Go to step   12

1. Check that the doors can be locked and unlocked by using the transmitter LOCK/UNLOCK switch.

   OK: Doors can be locked and unlocked with transmitter.

1. NG: REPLACE DOOR CONTROL RECEIVER
2. OK: GO TO NEXT STEP

   END (DOOR CONTROL TRANSMITTER IS DEFECTIVE)
