Circuit Description

This DTC is output when 1) a malfunction is detected between the power source control ECU and the power switch; or 2) either of the switches inside the power switch is malfunctioning.

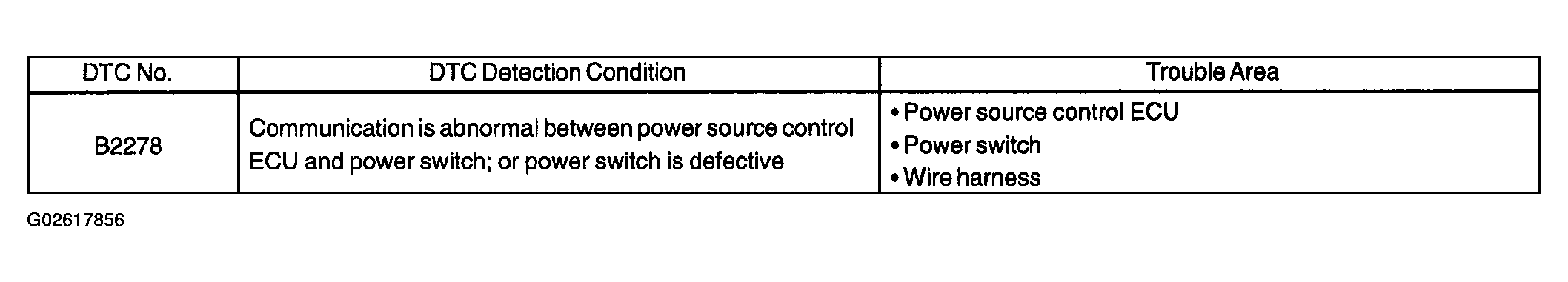

Fig 1: DTC B2278 Main Switch (Power Switch) Malfunction - DTC Detection Condition
G02617856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
