Circuit Description

This DTC is output when: 1) any other DTC is set in the power source control ECU; or 2) the wire harness between the power source control ECU and the transponder key ECU is open or short.

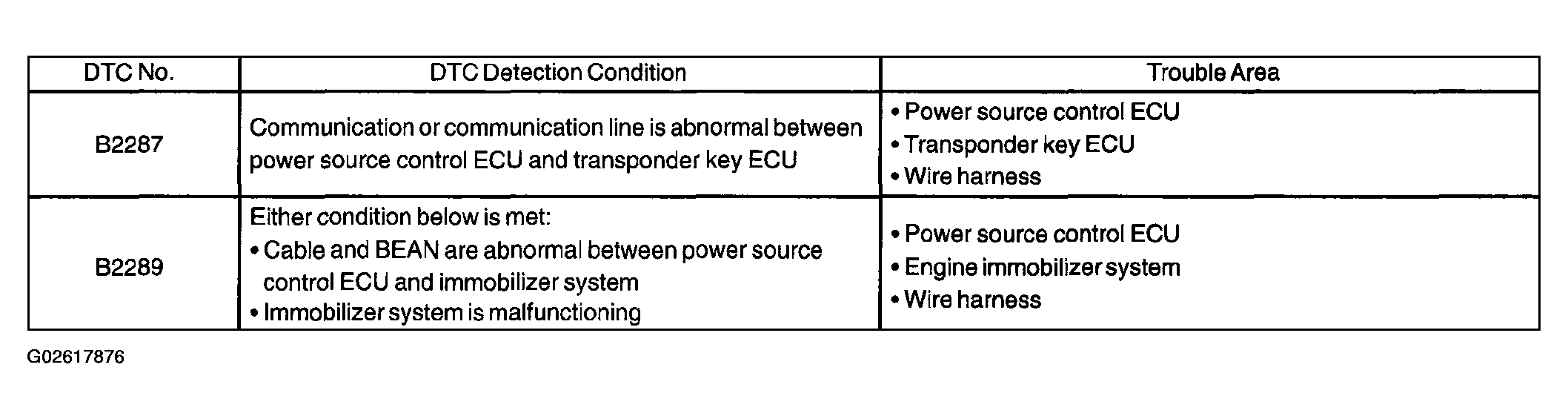

Fig 1: DTC B2287 LIN Communication Master Malfunction - DTC Detection Condition

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
